Child Safety Seat Tether Anchor: Notes

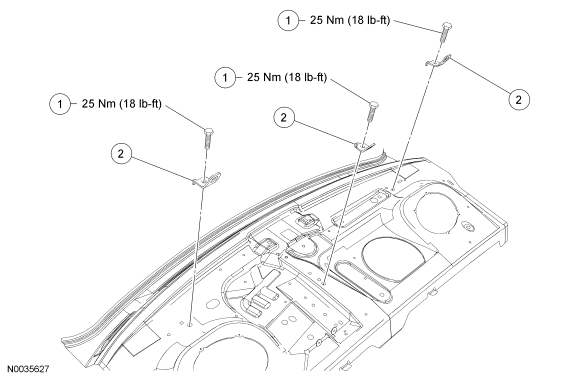

Fig 1: Exploded View Of Child Safety Seat Tether Anchor With Torque Specifications
GF0013292Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W506423 Bolts, safety seat tether anchor
2 613D74 Safety seat tether anchors
