Subwoofer Connector

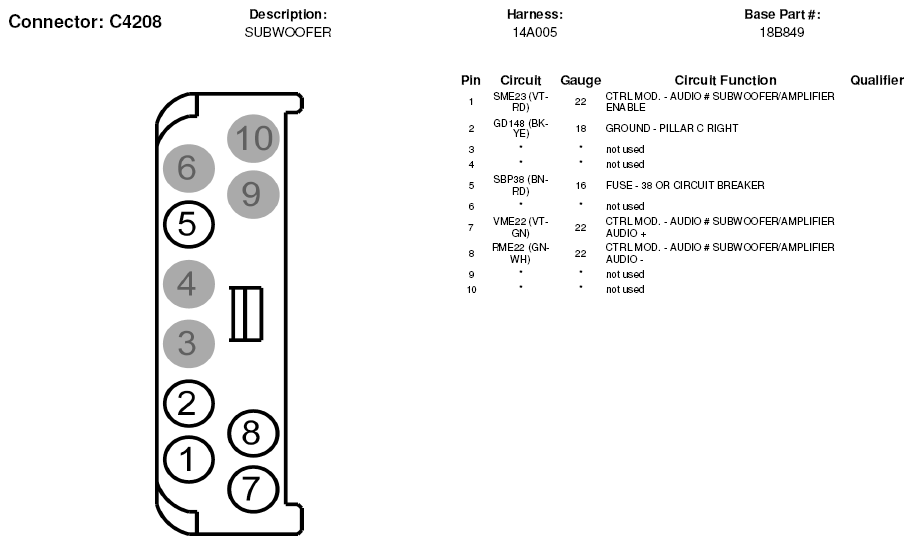

Fig 1: Subwoofer Connector End View (C4208)

G05599092

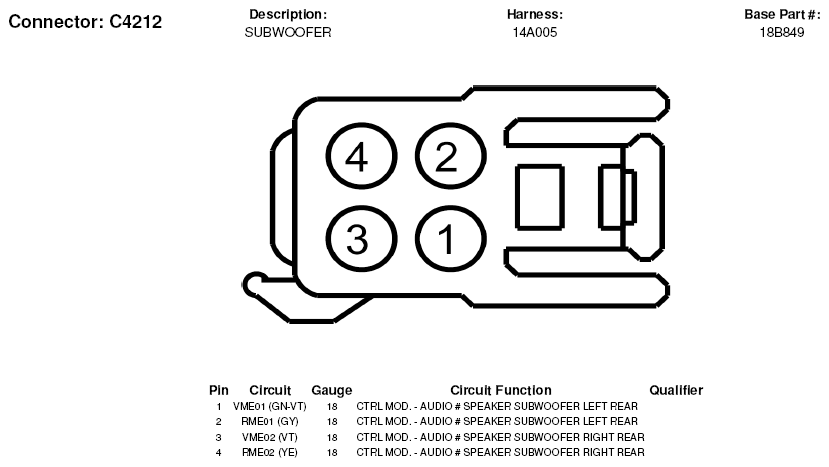

Fig 2: Subwoofer Connector End View (C4212)

G05599093
