Subwoofer Amplifier: Notes

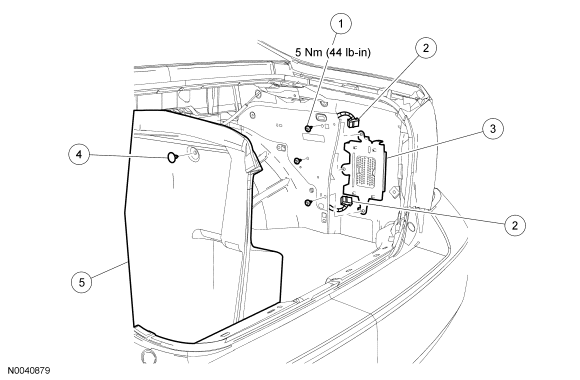

Fig 1: Exploded View Of Subwoofer Amplifier With Torque Specification
GF0030457Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W503924 Subwoofer amplifier screws (3 required)
2 - Subwoofer amplifier electrical connectors (part of 14A005)
3 18B849 Subwoofer amplifier
4 N802734 RH luggage compartment trim panel pushpins (4 required)
5 5445422 RH luggage compartment trim panel
