Ambient Lighting Switch: Notes
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

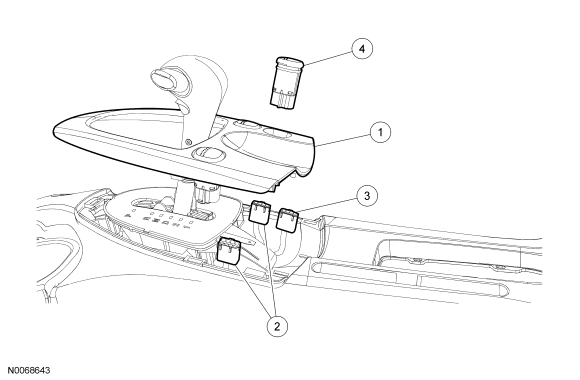

| Item |
Part Number |
Description |
| 1 |
044D90 |
Floor console trim panel |
| 2 |
- |
Center console electrical connectors (part of 14014) |
| 3 |
- |
Ambient lighting switch electrical connector (part of 14D375) |
| 4 |
- |
Ambient lighting switch |
