HVAC-EMTC Connector

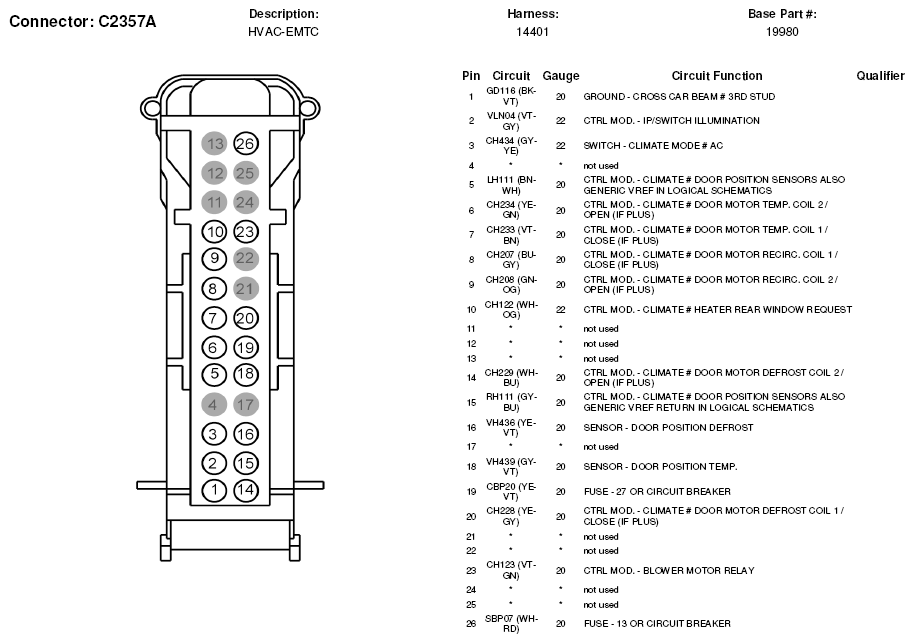

Fig 1: HVAC-EMTC Connector End View (C2357A)

G05602657

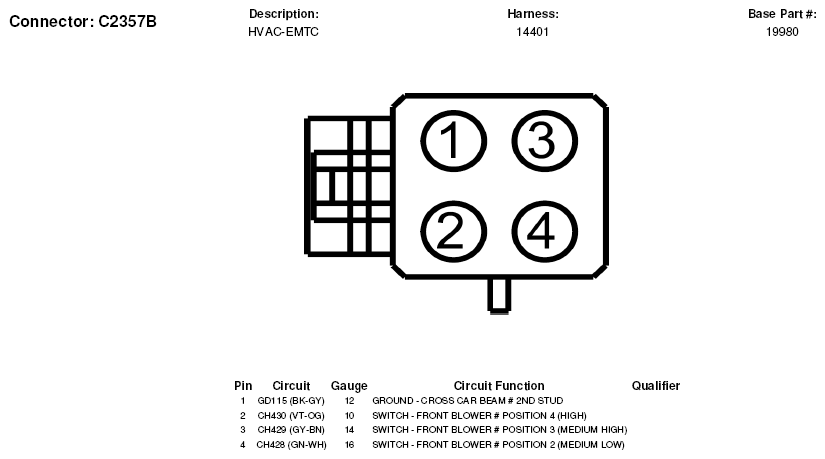

Fig 2: HVAC-EMTC Connector End View (C2357B)

G05602658
