Powertrain Control Module Connector End View - C175B

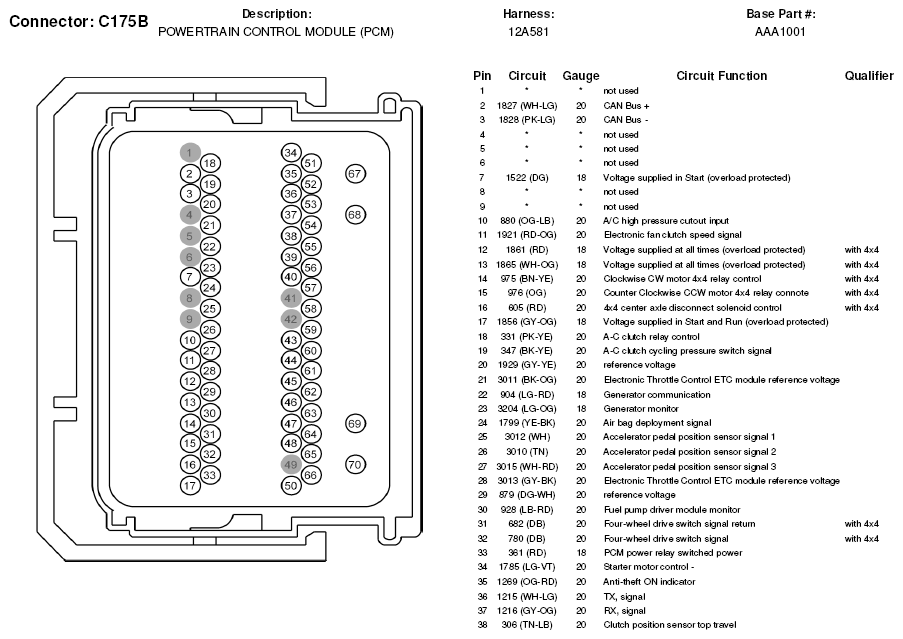

Fig 1: Powertrain Control Module Connector End View (C175B)
G05601479Courtesy of FORD MOTOR CO.
