Powertrain Control Module Connector End View - C175T

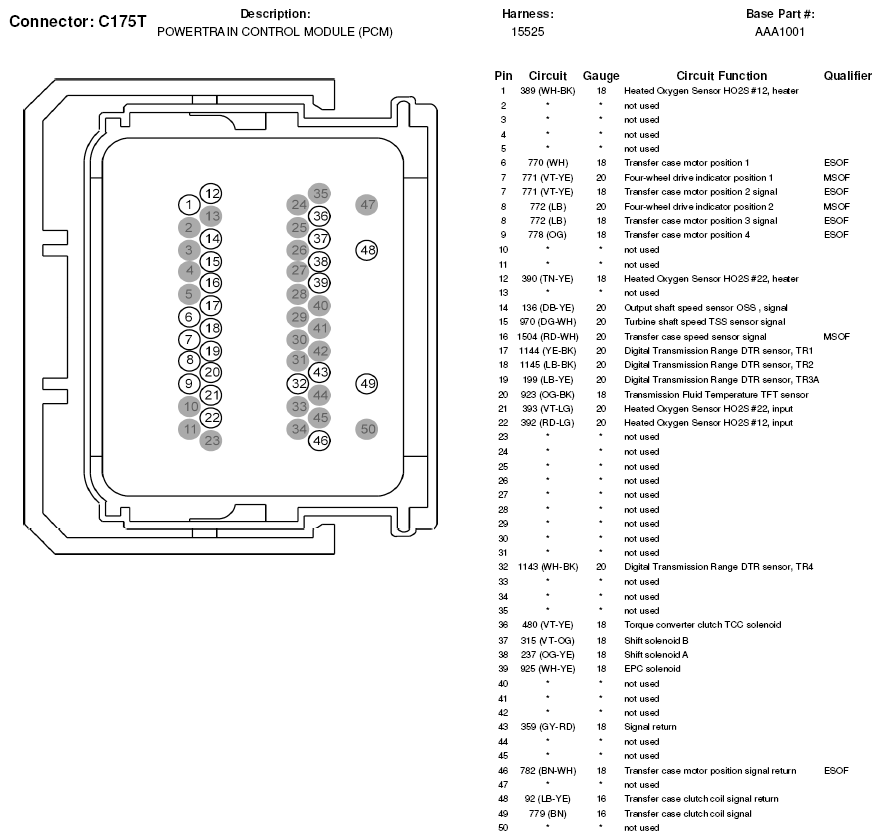

Fig 1: Powertrain Control Module Connector End View (C175T)
G05601483Courtesy of FORD MOTOR CO.
