Lincoln
>>
2008
>>
Navigator 2WD V8-5.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Entertainment System Control Module
>>
Audio Rear Control Unit (RCU)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

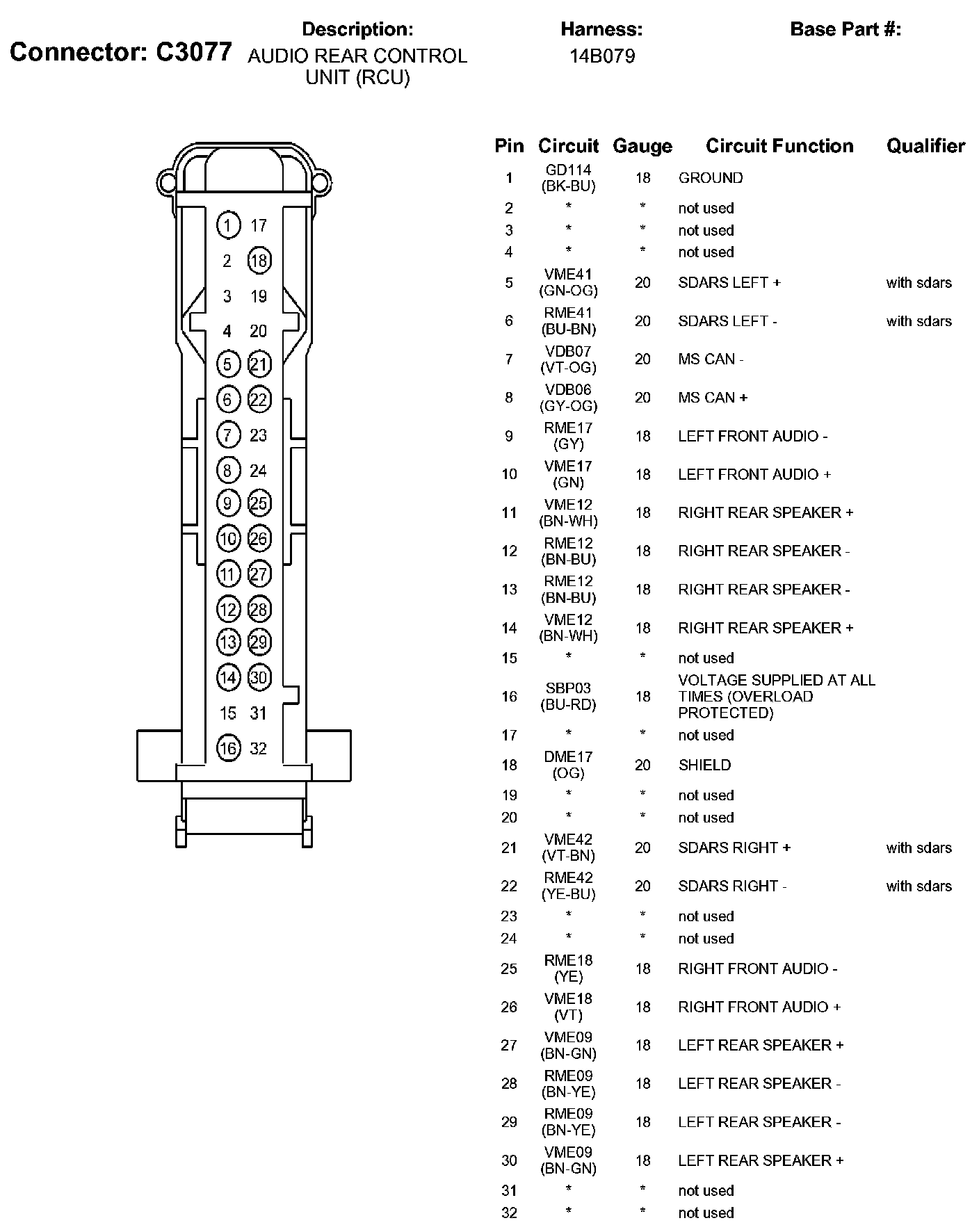

Audio Rear Control Unit (RCU)
C3077:
