Home >> Lincoln >> 2008 >> Navigator 2WD V8-5.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Memory Positioning Module
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

Memory Positioning Module

C341A:

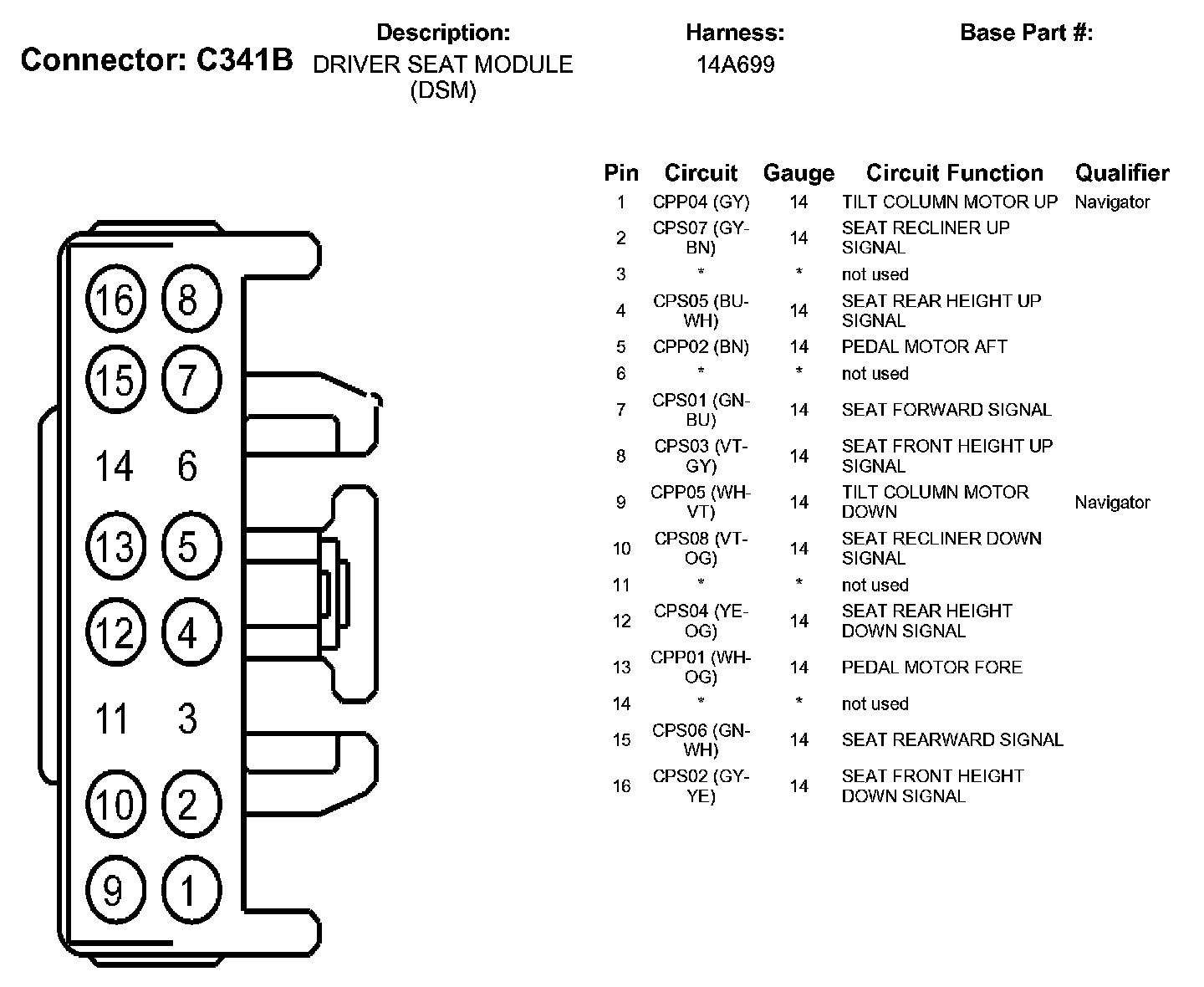

C341B:

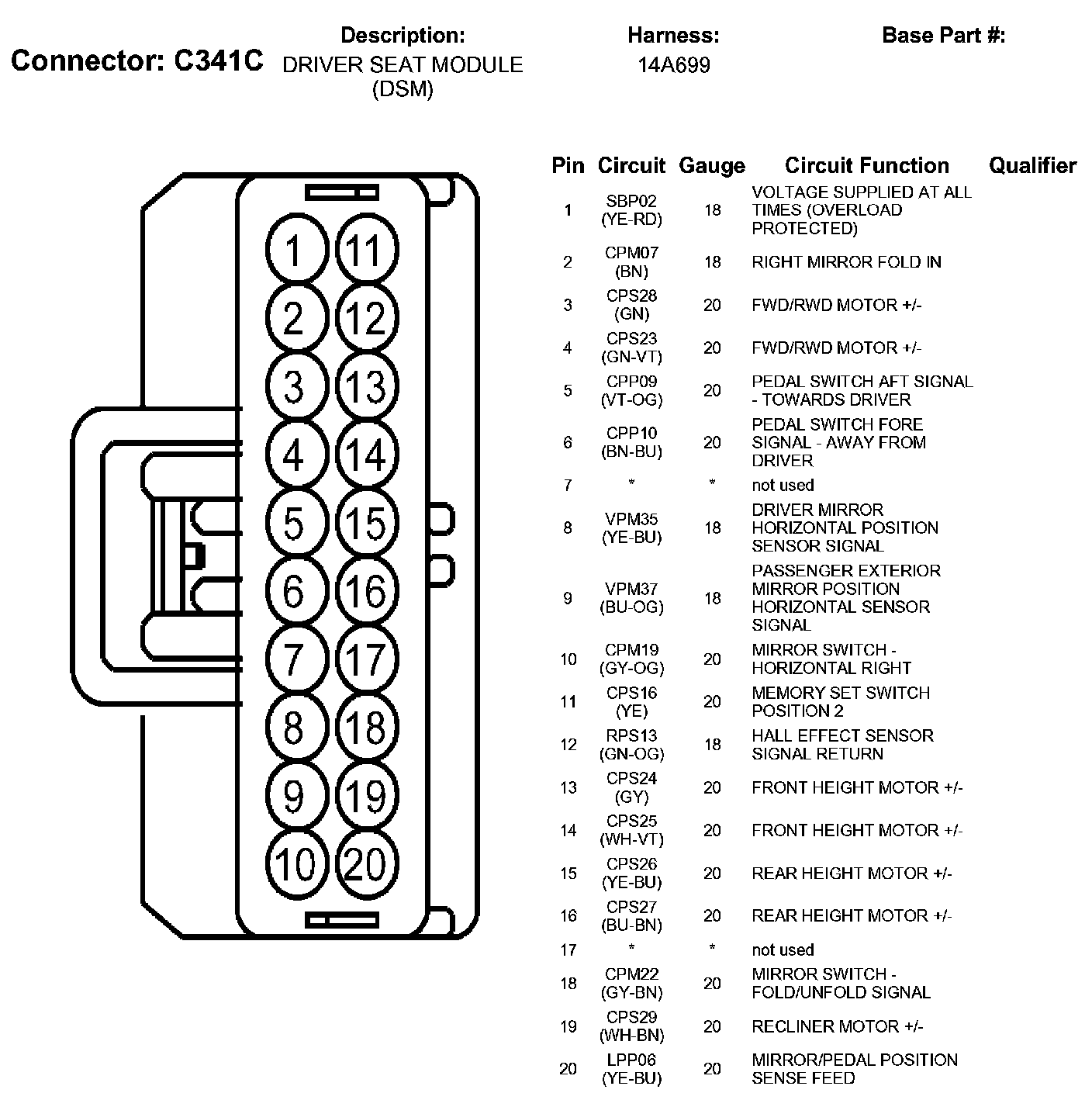

C341C:

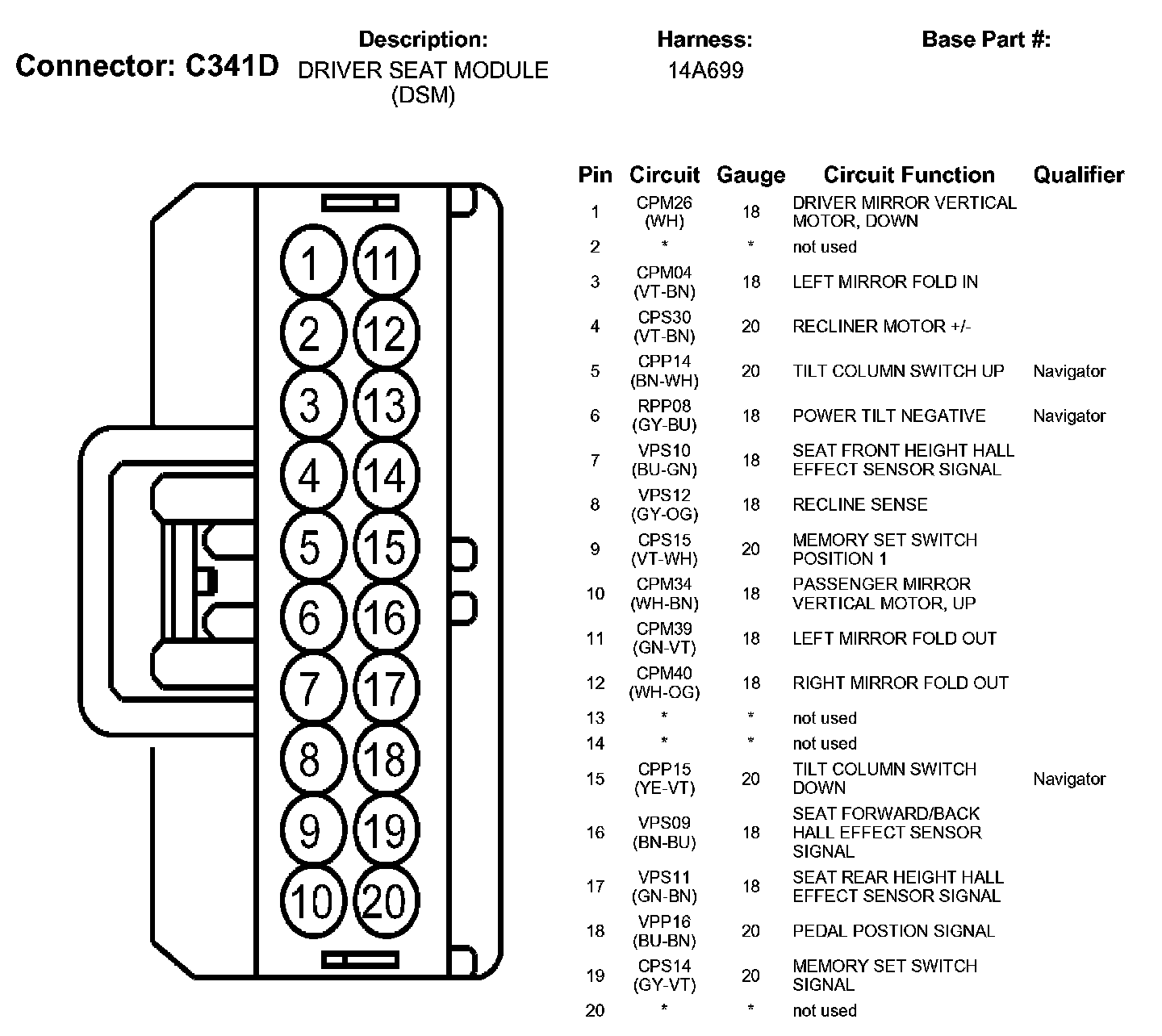

C341D:



C341E:
