Map Light: Service and Repair

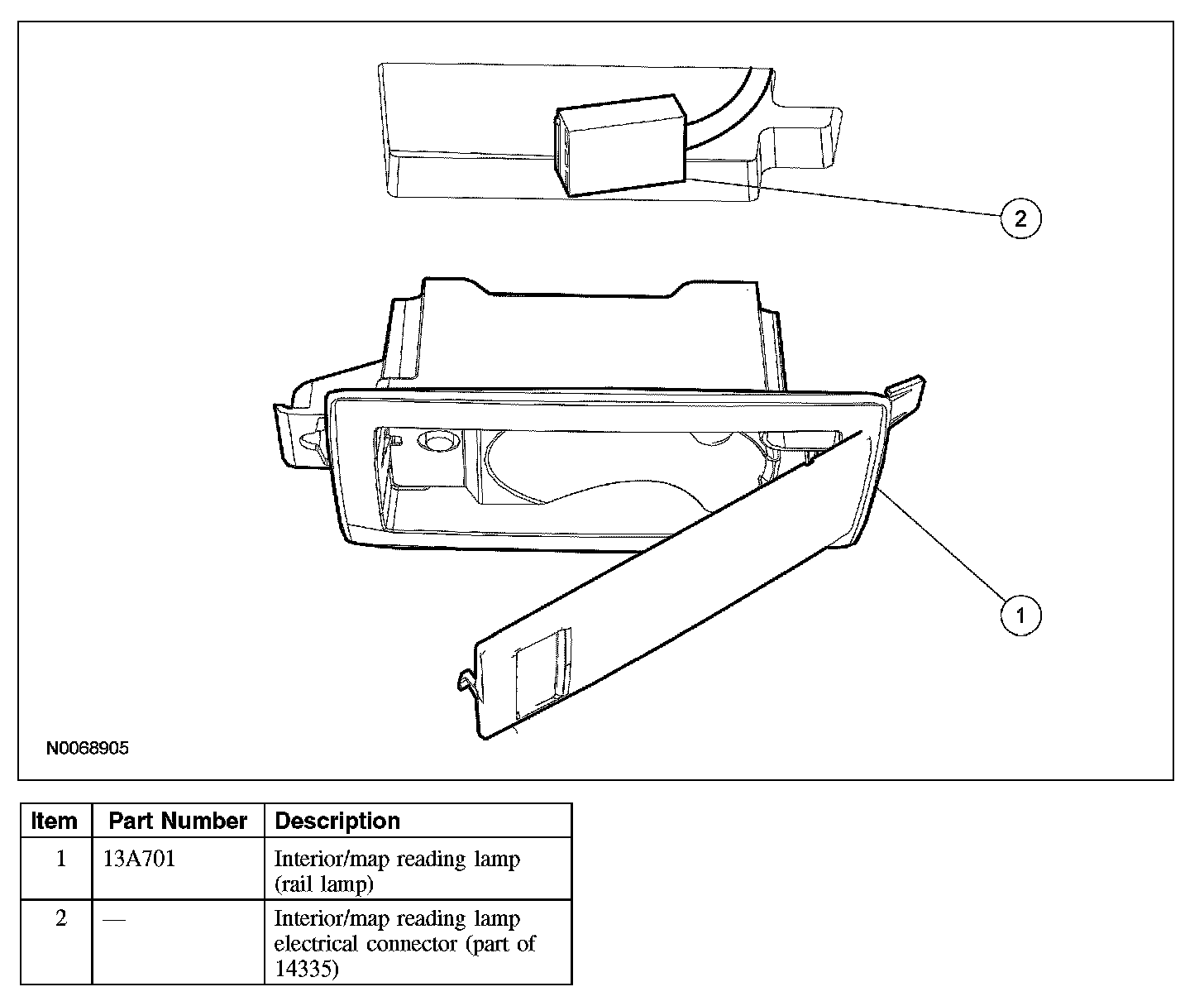

INTERIOR/MAP READING LAMP







Removal and Installation
1. Release the tab on the front side of the lens.
2. Tilt the front of the lens down.
3. Remove the lamp.
- Disconnect the electrical connector.

4. To install, reverse the removal procedure.
