Inline Connector

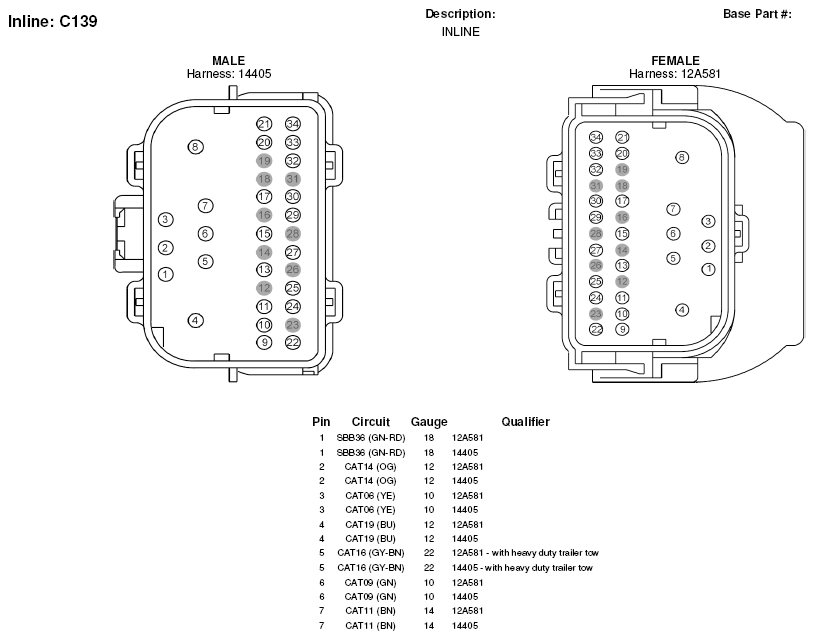

Fig 1: Inline (1 Of 2) Connector End View (C139) (1 Of 2)
G05599775
Fig 2: Inline (2 Of 2) Connector End View (C139) (2 Of 2)
G05599776

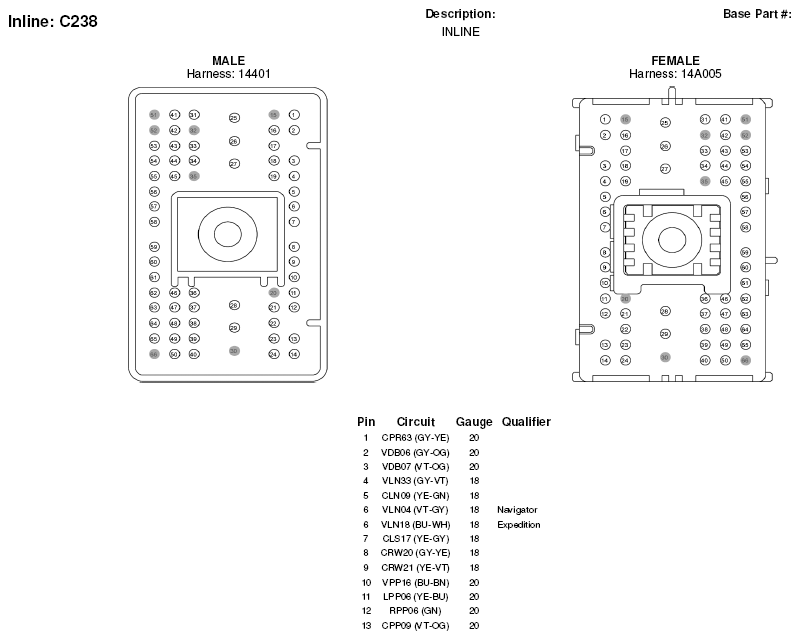

Fig 3: Inline (1 Of 2) Connector End View (C238) (1 Of 2)
G05599834
Fig 4: Inline (2 Of 2) Connector End View (C238) (2 Of 2)
G05599835

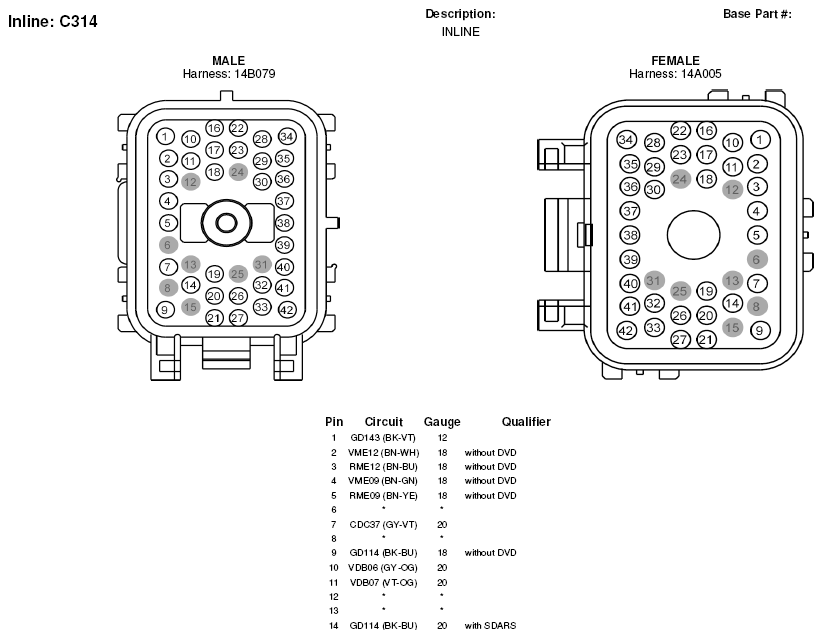

Fig 5: Inline (1 Of 2) Connector End View (C314) (1 Of 2)
G05599861
Fig 6: Inline (2 Of 2) Connector End View (C314) (2 Of 2)
G05599862
