Heated Seat Module - Front Seat

HEATED SEAT MODULE - FRONT SEAT

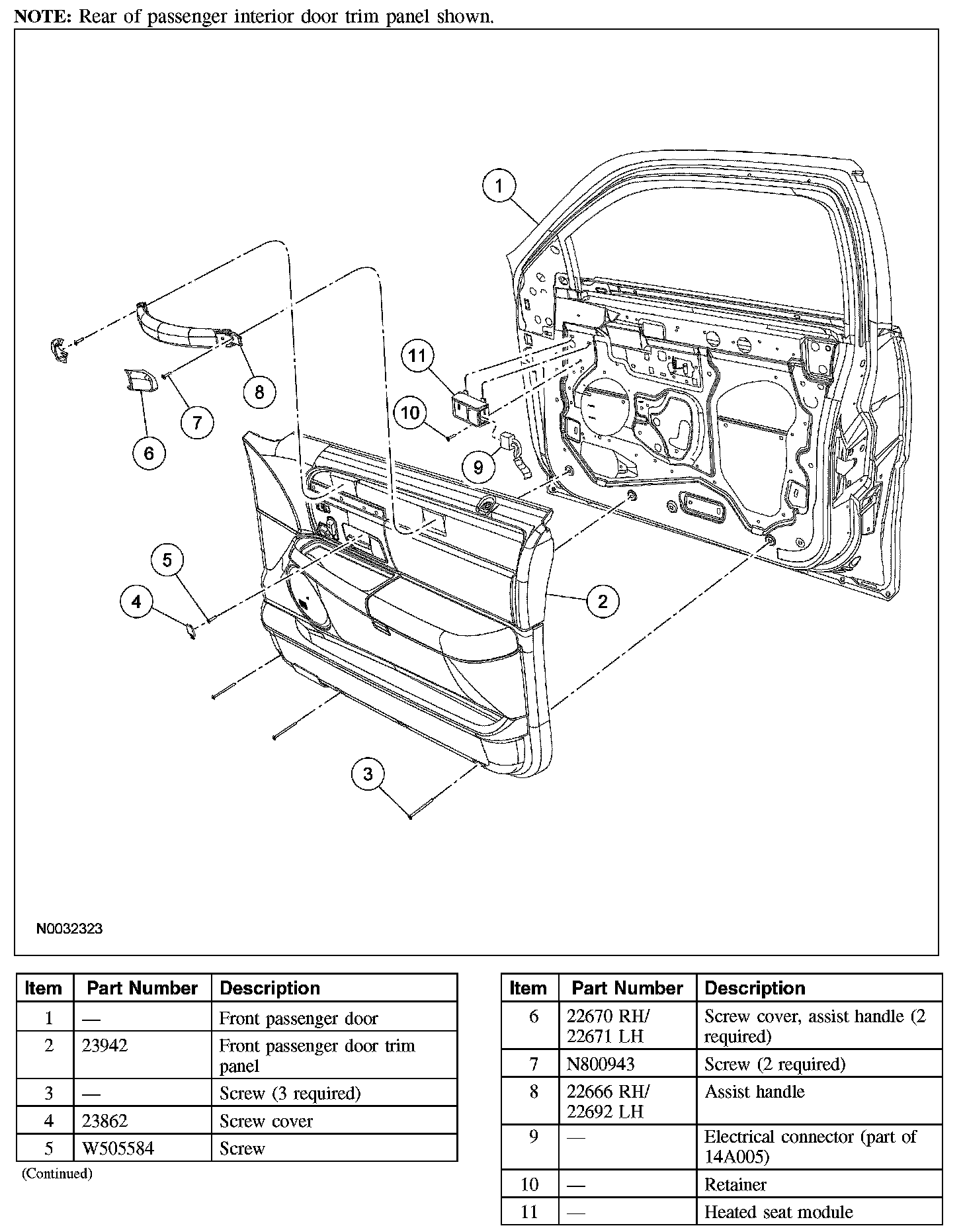

Removal and Installation

1. CAUTION: Use care not to damage the screw covers.

Open the 3 screw covers.

2. Remove the 3 screws and the assist handle.







3. Remove the remaining screws and position the front door trim panel away from the door.
4. Disconnect the electrical connector.
5. Remove the heated seat module retainer.
6. Rotate the bottom of the heated seat module upward and remove.
7. To install, reverse the removal procedure.
