Exhaust System

Exhaust System - Exploded View

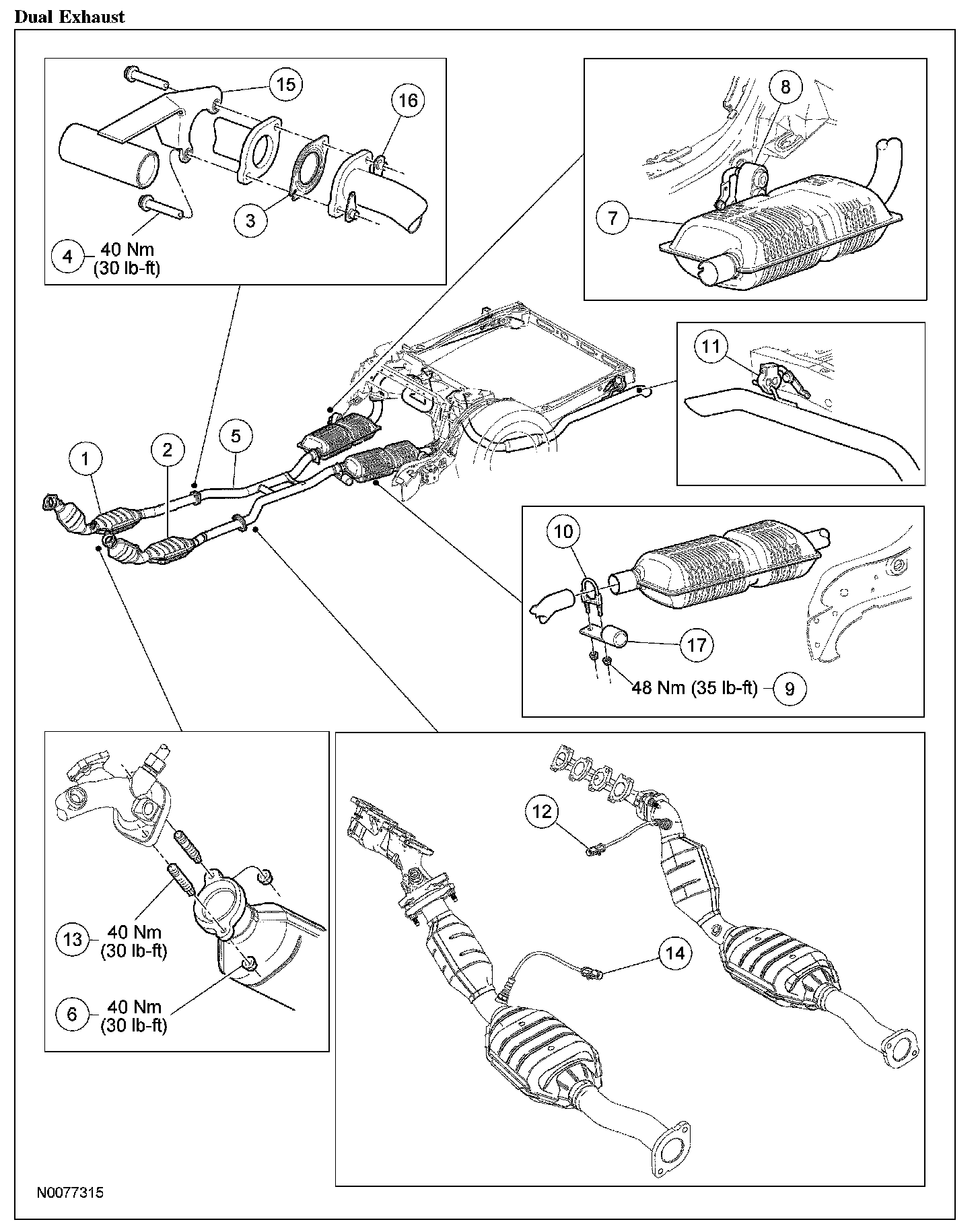

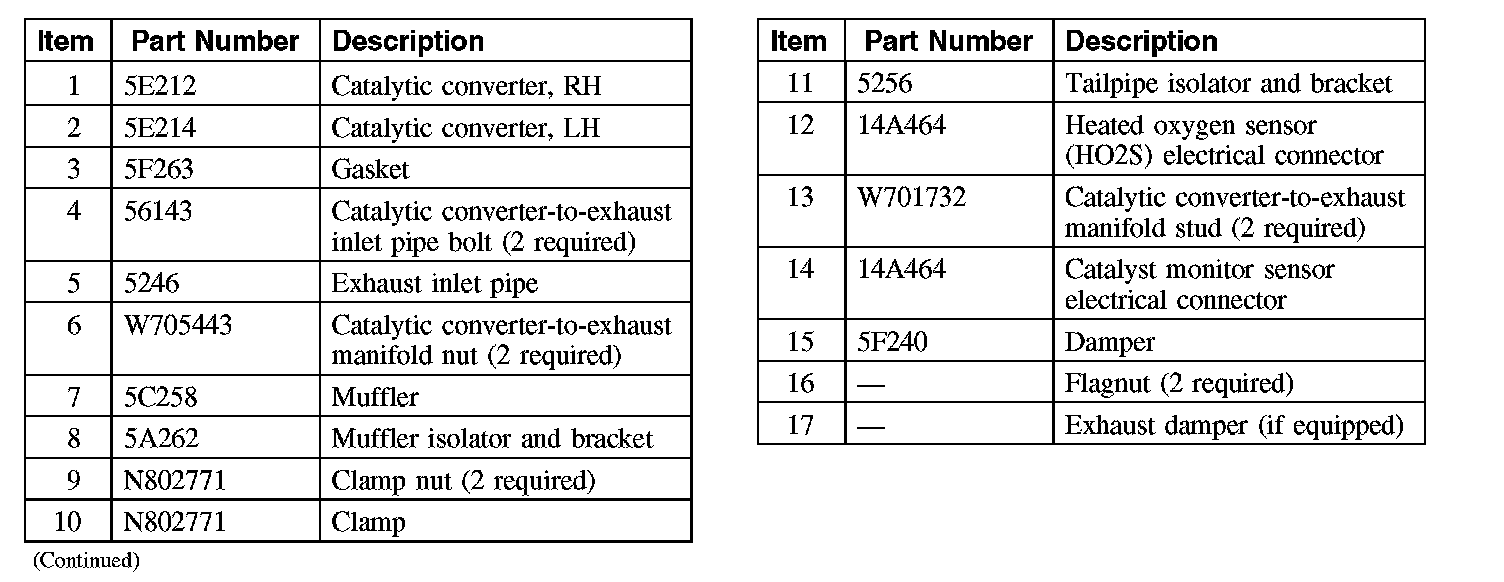

Exhaust System - Exploded View, Dual Exhaust (Part 1):




Exhaust System - Exploded View, Dual Exhaust (Part 2):
