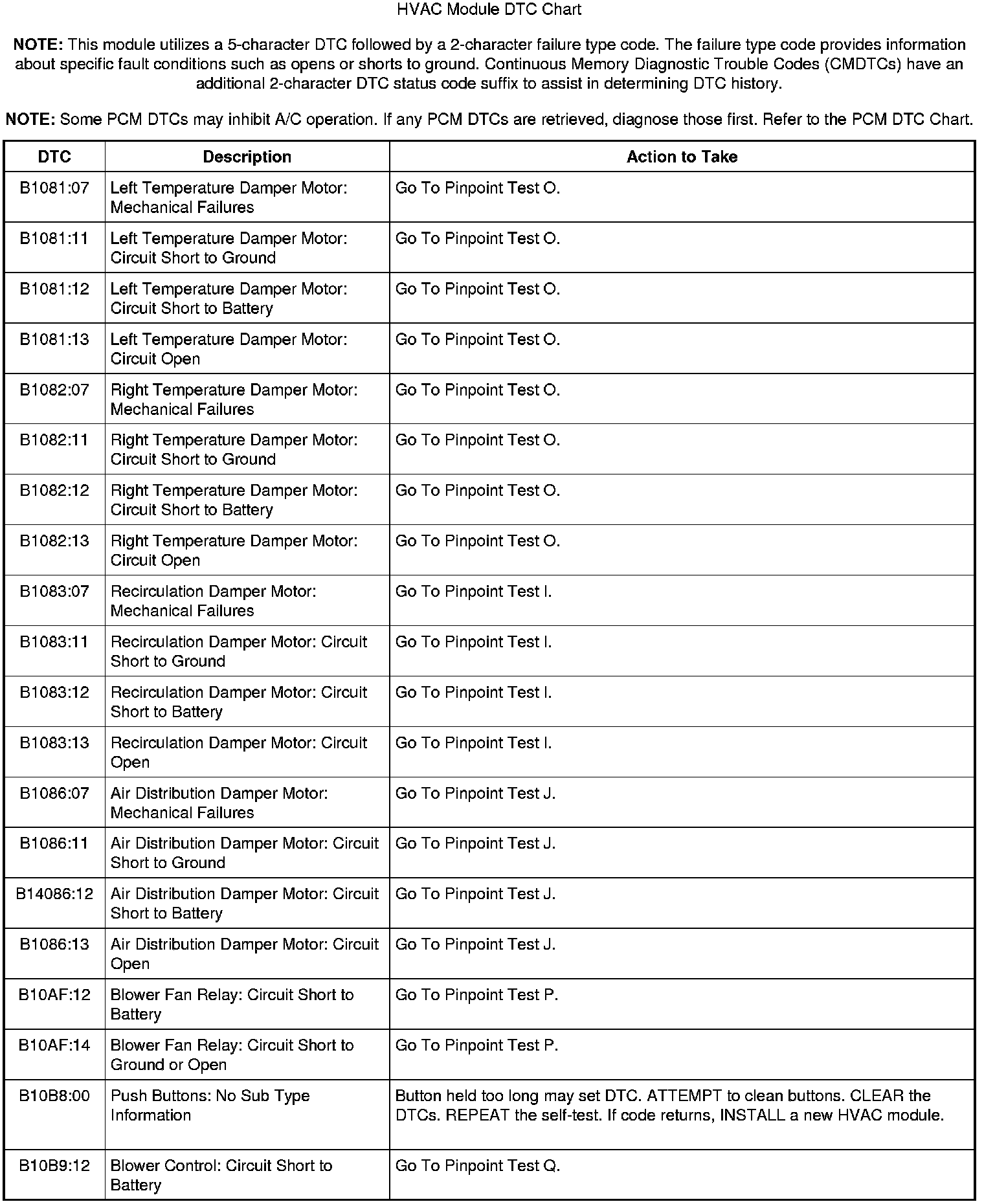

HVAC Module DTC Chart




Climate Control System

DTC Charts

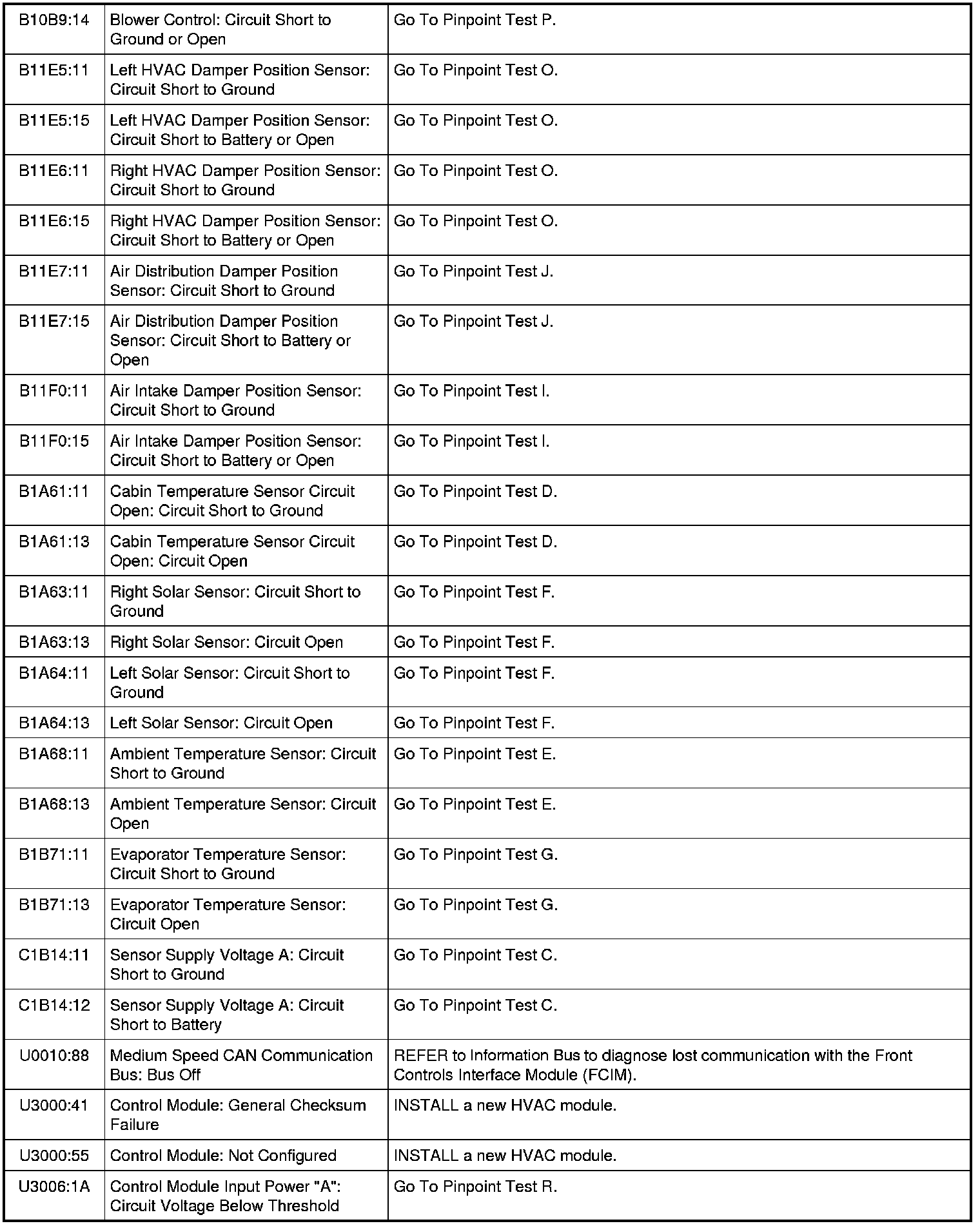

B10AF:12-B14086:12:





B1A61:11-B11F0:15 / C1B14:11-C1B14:12 / U0010:88-U3000:55:





U3006:1B:
