Timing Belt/Chain Tensioner Torque

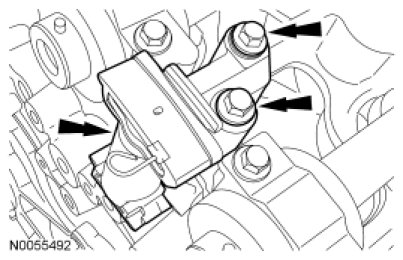

Install the RH secondary timing chain tensioner and the 2 bolts.
Tighten to 10 Nm (89 lb-in).

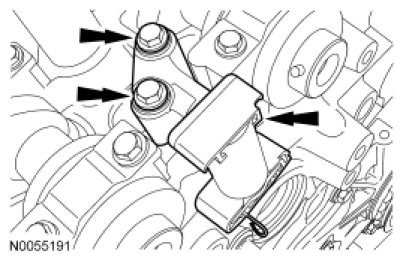

Install the LH secondary timing chain tensioner and the 2 bolts.
Tighten to 10 Nm (89 lb-in).

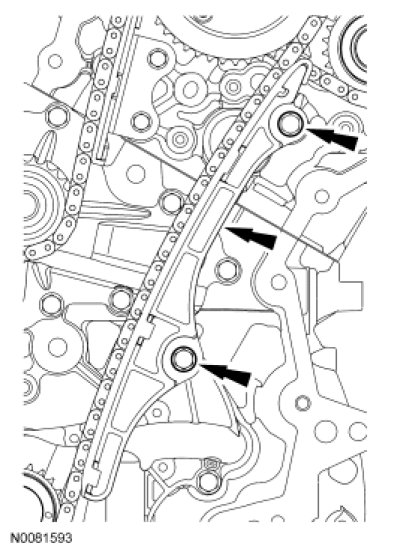

Install the RH primary timing chain guide and the 2 bolts.
Tighten to 10 Nm (89 lb-in).

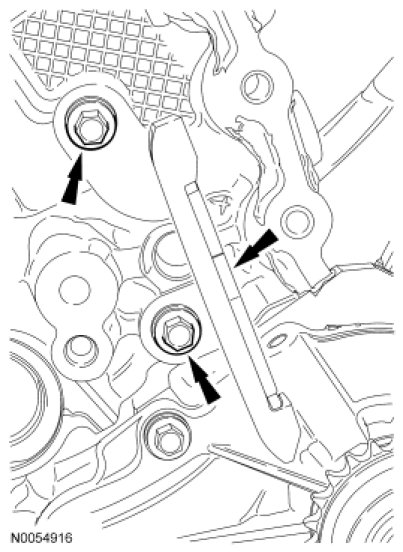

Install the upper LH primary timing chain guide and the 2 bolts.
Tighten to 10 Nm (89 lb-in).

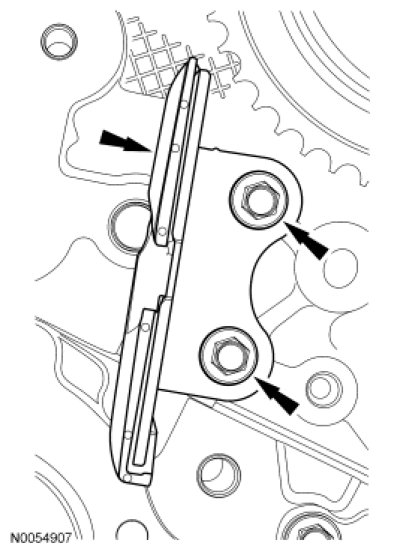

Install the lower LH primary timing chain guide and the 2 bolts.
Tighten to 10 Nm (89 lb-in).





Install the primary tensioner and the 2 bolts.
Tighten to 10 Nm (89 lb-in).
