Ignition Switch: Service and Repair

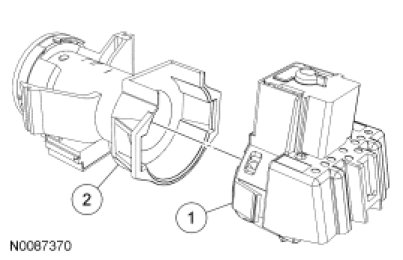

Ignition Switch









Removal and Installation

1. Remove the ignition lock cylinder.

2. Push the 2 locking tabs inward and remove the ignition switch.

3. To install, reverse the removal procedure.
