Exhaust System - Exploded View

LH Catalytic Converter and Exhaust Pipes

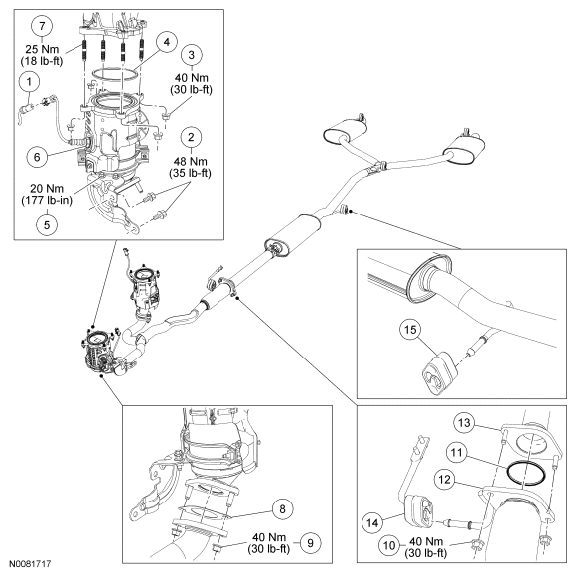

Fig 1: Exploded View Of Catalytic Converter And Exhaust Pipes With Torque Specifications (LH)

Courtesy of FORD MOTOR CO.

PART DESCRIPTION CHART

Item	Part Number	Description
1	14A464	LH Catalyst Monitor Sensor (CMS) electrical connector
2	W710656	LH catalytic converter support bracket-to-transmission bolts (2 required)
3	W705443	LH catalytic converter-to-exhaust manifold nut (4 required)
4	5F263	Gasket
5	W500223	Bracket-to-LH catalytic converter bolt (2 required)
6	5E213	LH catalytic converter
7	W712458	LH catalytic converter-to-exhaust manifold stud (4 required)
8	9451	Gasket
9	W705443	Exhaust Y-pipe-to-LH catalytic converter nut
10	W705443	Exhaust Y-pipe-to-flange nut (2 required)
11	5E241	Gasket
12	5G274	Exhaust Y-pipe
13	5A212	Exhaust intermediate pipe
14	5F262	Exhaust Y-pipe isolator
15	5F262	Muffler and tailpipe isolators (4 required)

RH Catalytic Converter and Exhaust Pipes

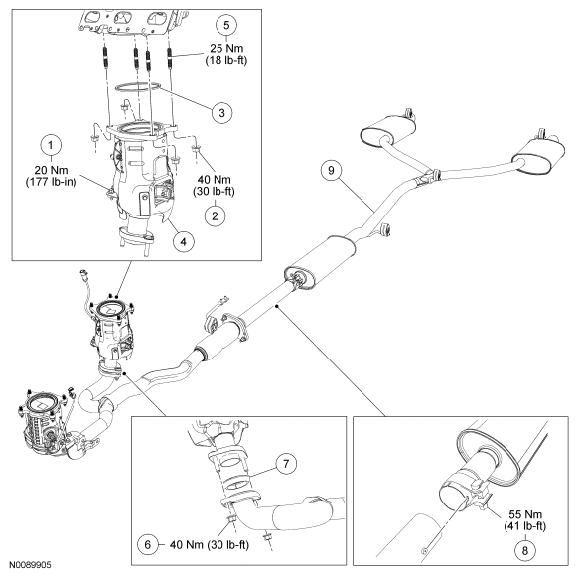

Fig 2: Exploded View Of Catalytic Converter And Exhaust Pipes With Torque Specifications (RH)

Courtesy of FORD MOTOR CO.

PART DESCRIPTION CHART

Item	Part Number	Description
1	W500223	Bracket-to-RH catalytic converter bolt (2 required)
2	W705443	RH catalytic converter-to-exhaust manifold nut (4 required)
3	5F263	Gasket
4	5E211	RH catalytic converter
5	W712458	RH catalytic converter-to-exhaust manifold stud (4 required)
6	W705443	Exhaust Y-pipe-to-RH catalytic converter nut (2 required)
7	5E241	Gasket
8	5221	Torca® clamp
9	5K214	Muffler and tailpipe assembly
