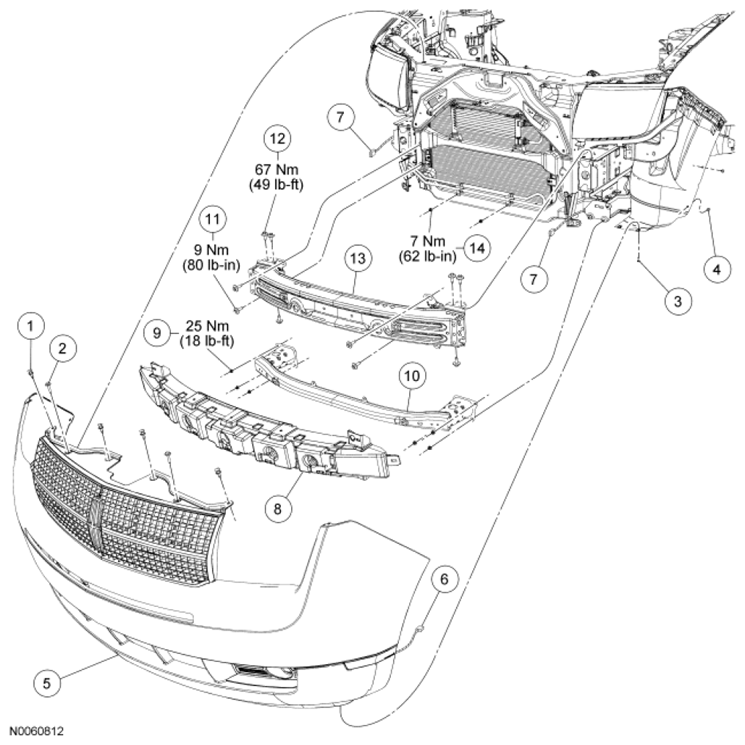

Bumper - Exploded View, Front
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
MKX shown, Edge similar.
DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W711685 | Upper radiator grille bolt (2 required) |
| 2 | W706350 | Upper radiator grille scrivets (4 required) |
| 3 | N623332 | Bumper cover lower screw (4 required) |
| 4 | W711656 | Splash shield screw (6 required) |
| 5 | 17D957 | Front bumper cover |
| 6 | - | Bumper cover wiring harness assembly (part of 17E810) |
| 7 | 14290 | Wiring harness assembly |
| 8 | 17C882 | Isolator front bumper |
| 9 | - | Lower front bumper mounting nut (6 required) (part of 5019) |
| 10 | 5019 | Lower front bumper |
| 11 | W711617 | Upper front bumper-to-radiator support bolt (4 required) |
| 12 | W711617 | Upper front bumper mounting bolt (6 required) |
| 13 | 17757 | Upper front bumper |
| 14 | W711788 | Power steering cooler pipe nut (2 required) |
- For additional information, refer to the procedures in this article.
