Heated Seat Module Connector End View - C3304B

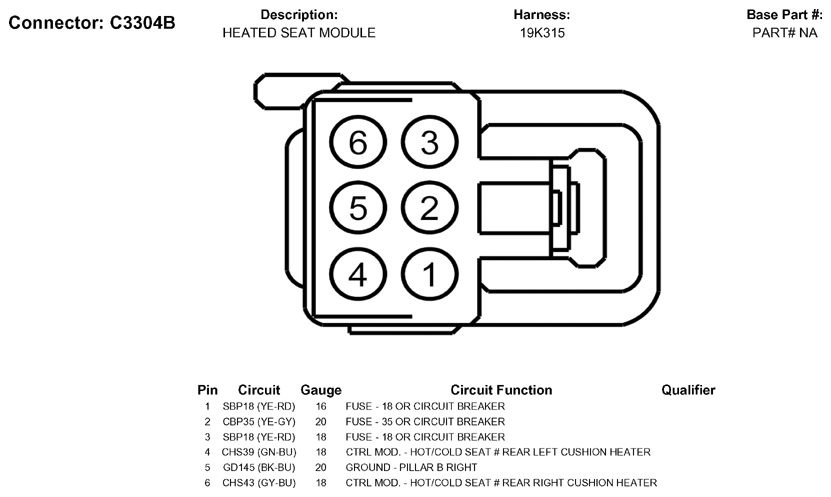

Fig 1: Heated Seat Module Connector End View (C3304B)
G05786100Courtesy of FORD MOTOR CO.
