Keypad Switch Assembly Connector - C500

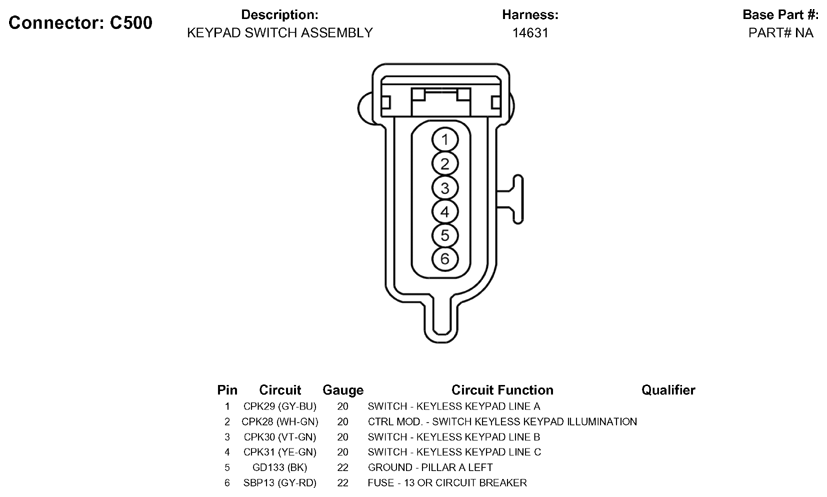

Fig 1: Keypad Switch Assembly Connector End View (C500)
G05785937Courtesy of FORD MOTOR CO.
