Driver Seat Module Connector - C3299B

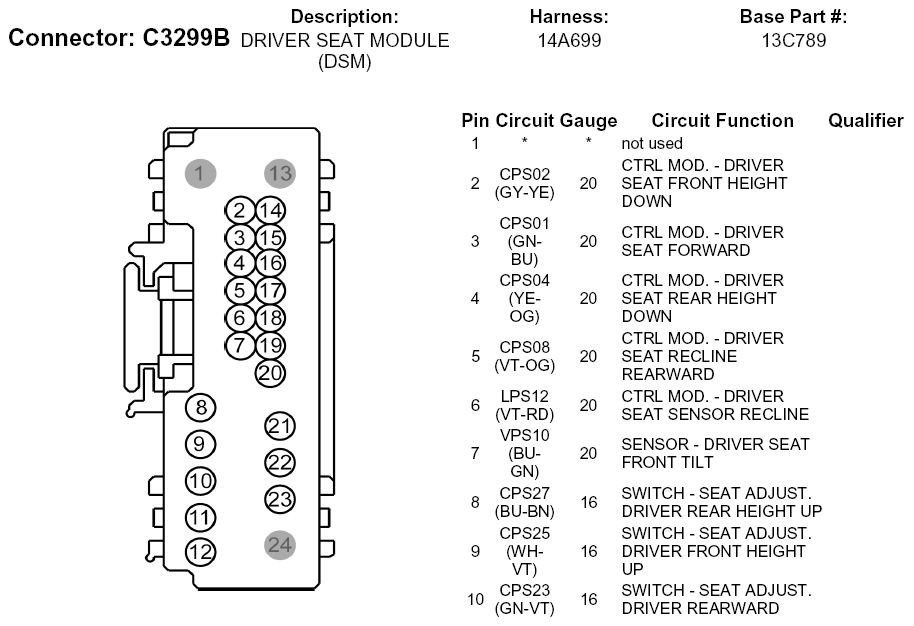

Fig 1: Driver Seat Module Connector End View (C3299B) (1 Of 2)
G05770103Courtesy of FORD MOTOR CO.

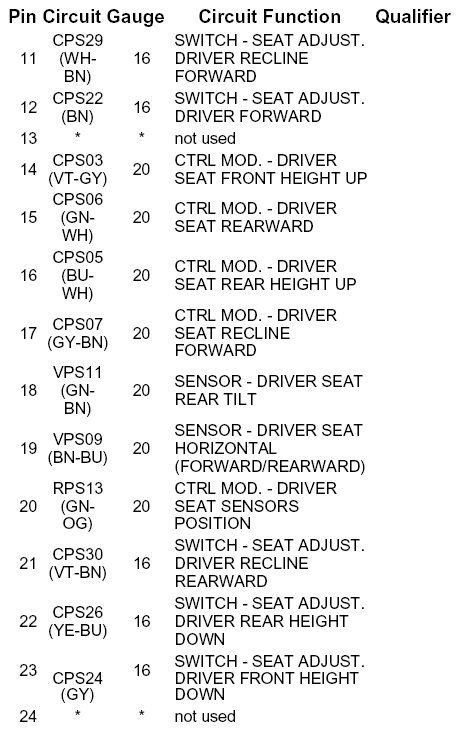

Fig 2: Driver Seat Module Connector End View (C3299B) (2 Of 2)
G05770104Courtesy of FORD MOTOR CO.
