DC - Mass Air Flow (MAF) Sensor

PINPOINT TEST DC: MASS AIR FLOW (MAF) SENSOR

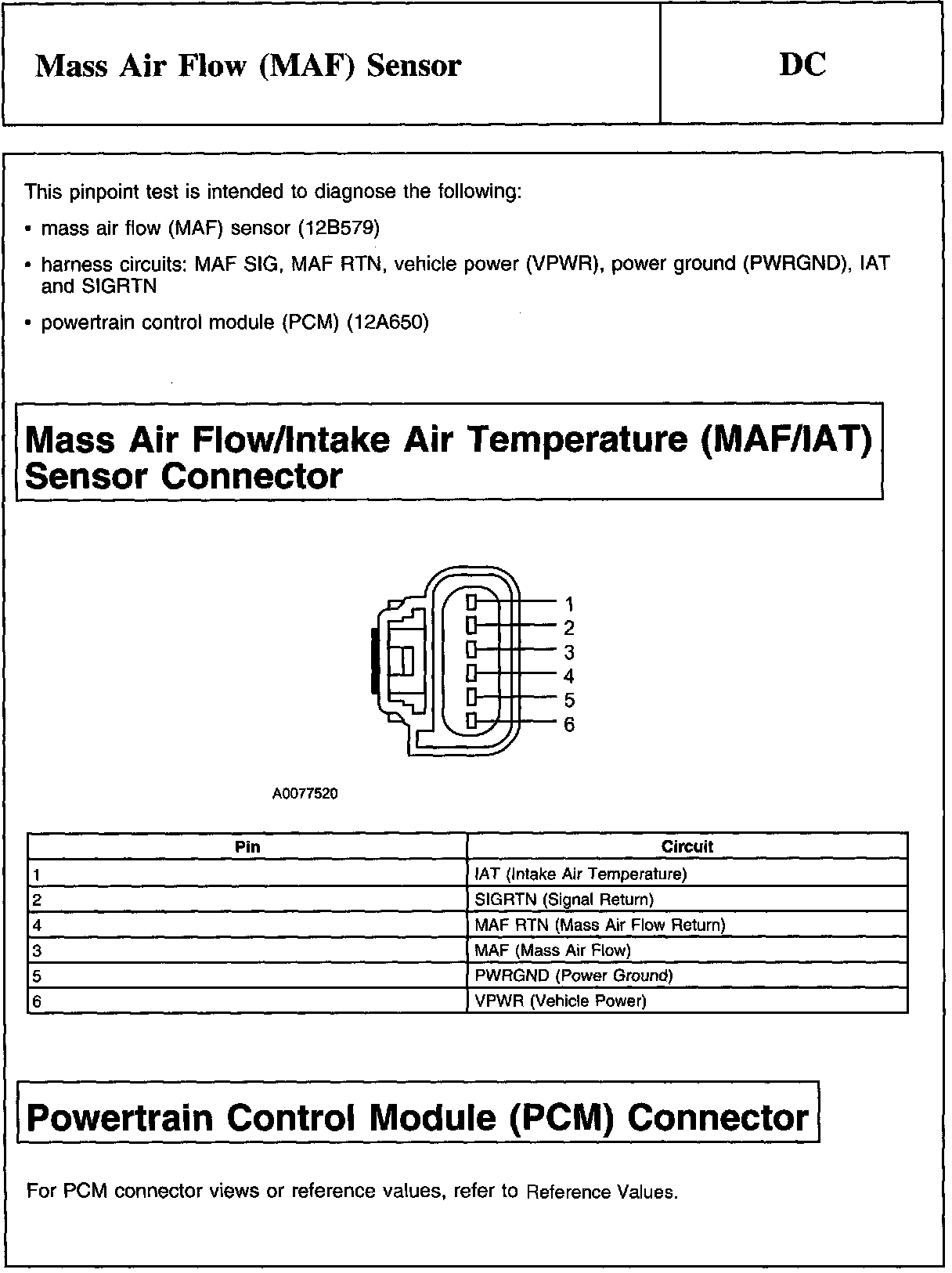

Mass Air Flow/Intake Air Temperature Sensor And Powertrain Control Module Connector:

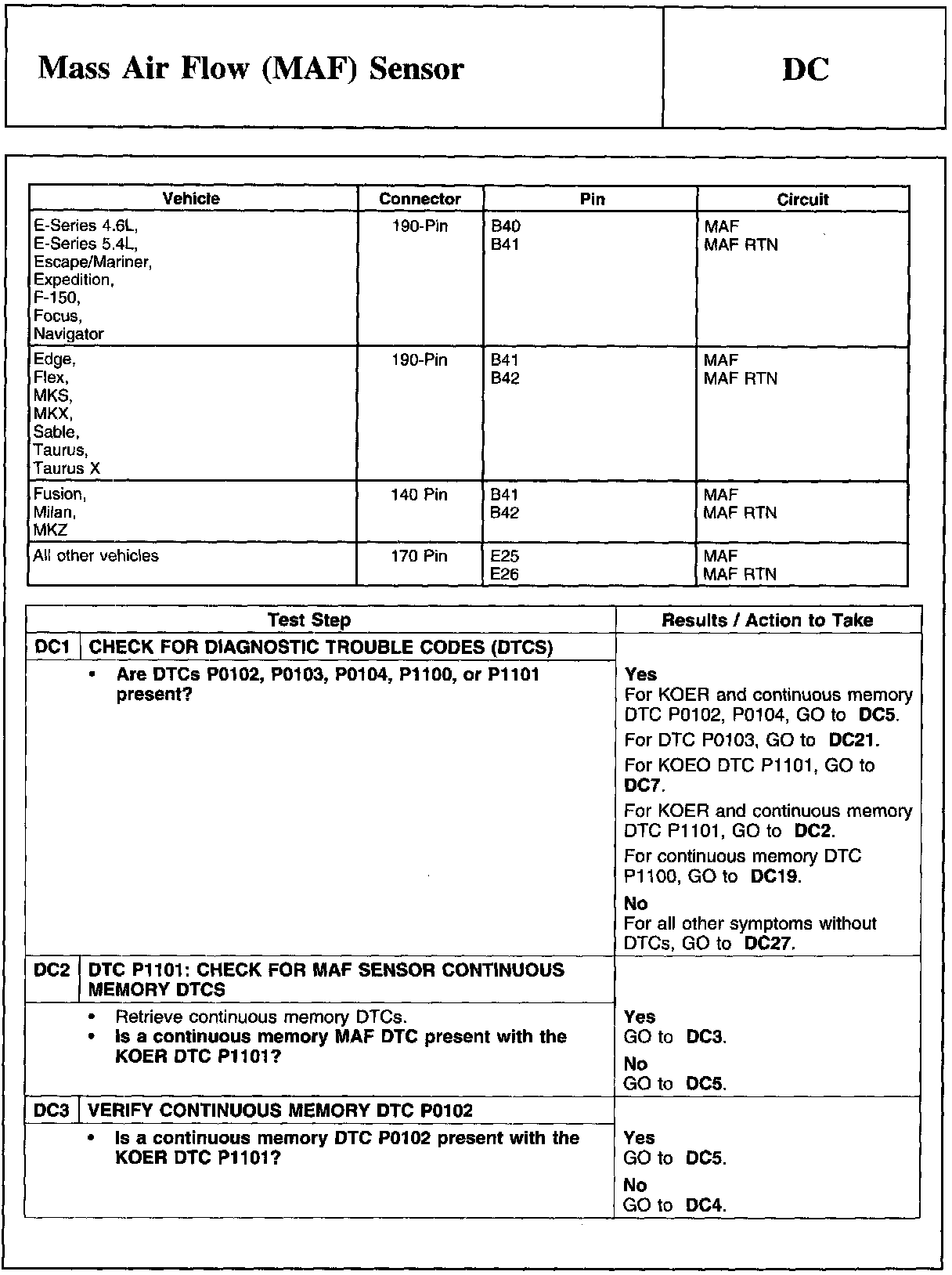

DC1-DC3:

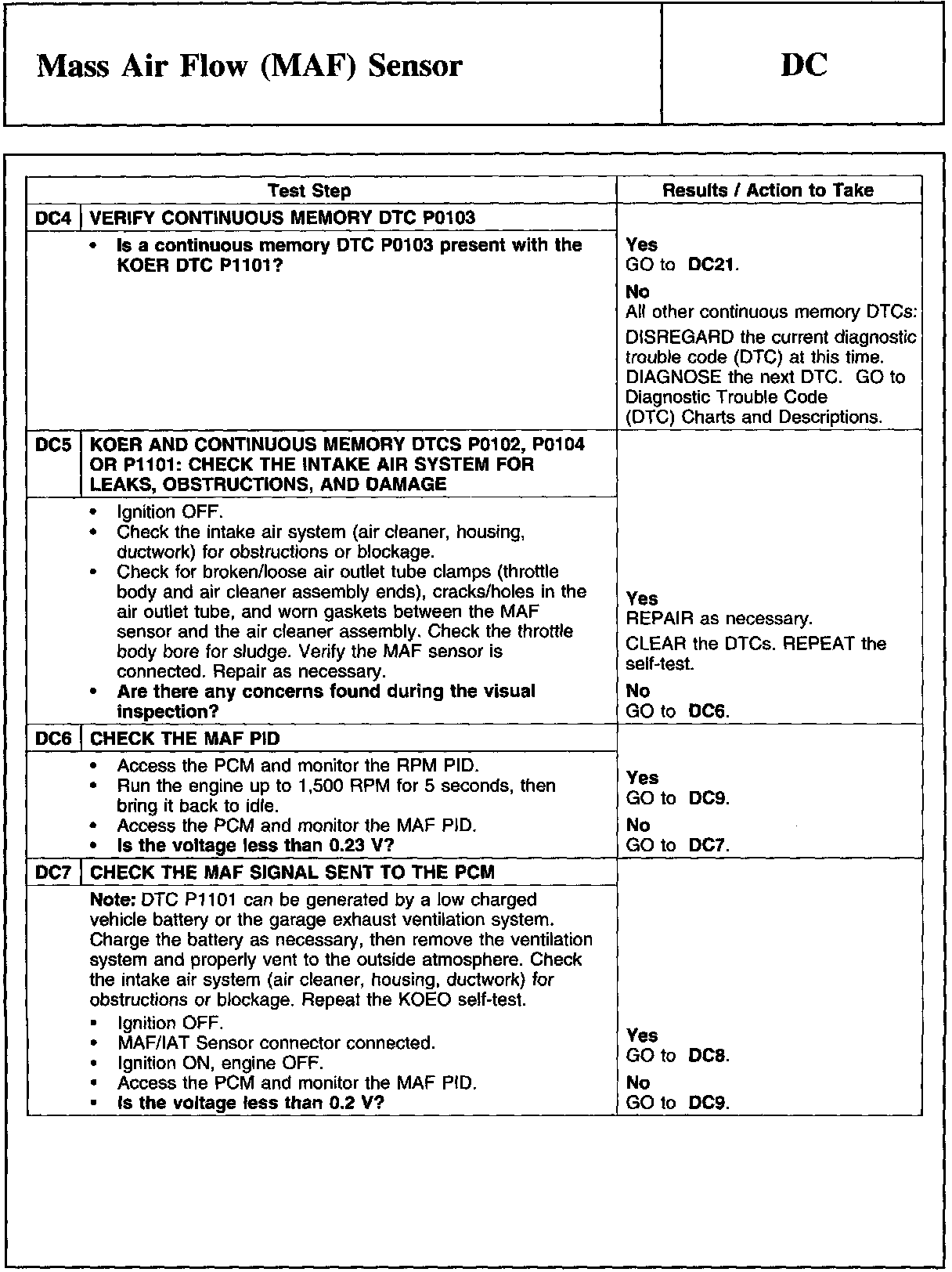

DC4-DC7:

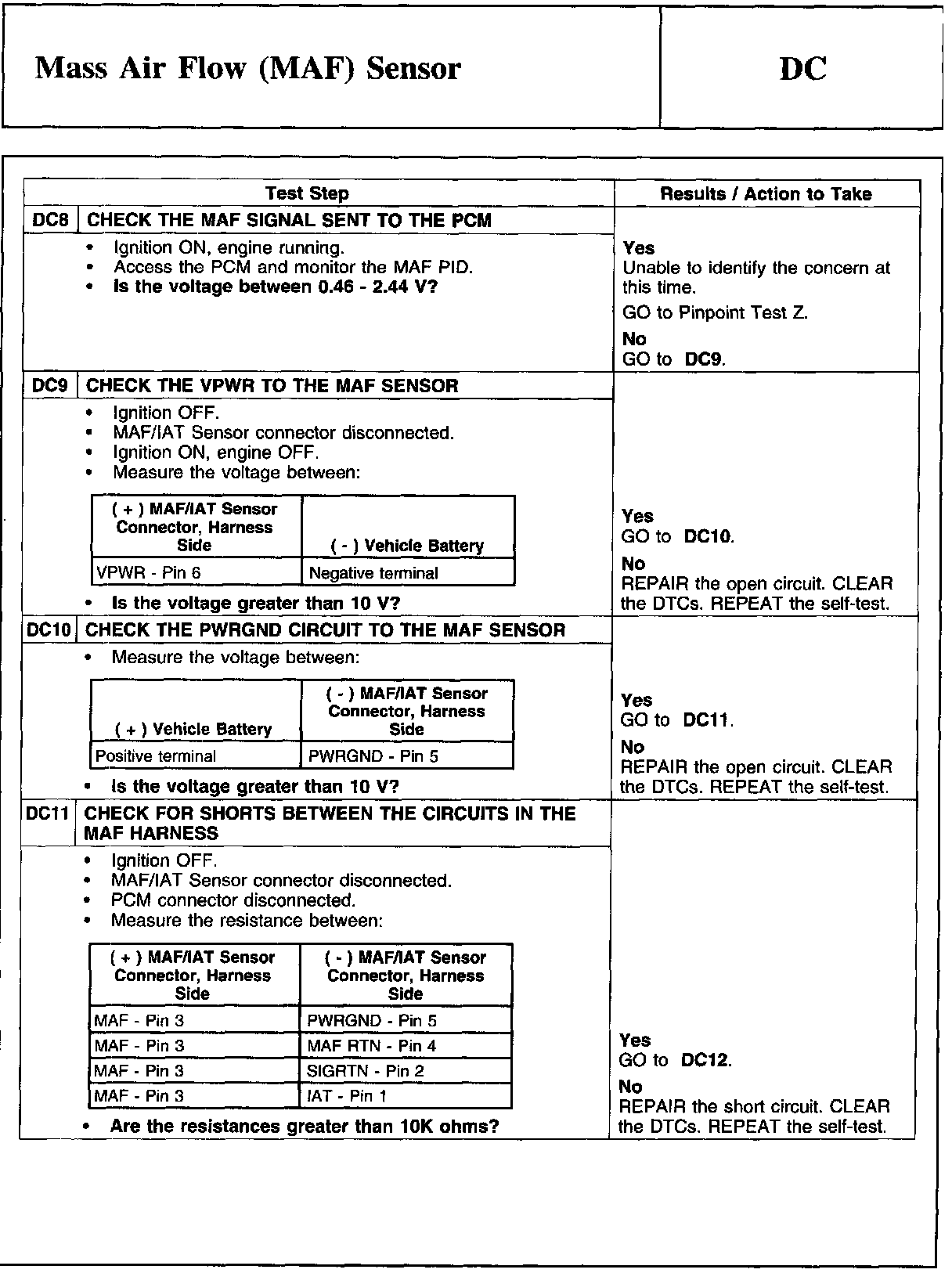

DC8-DC11:

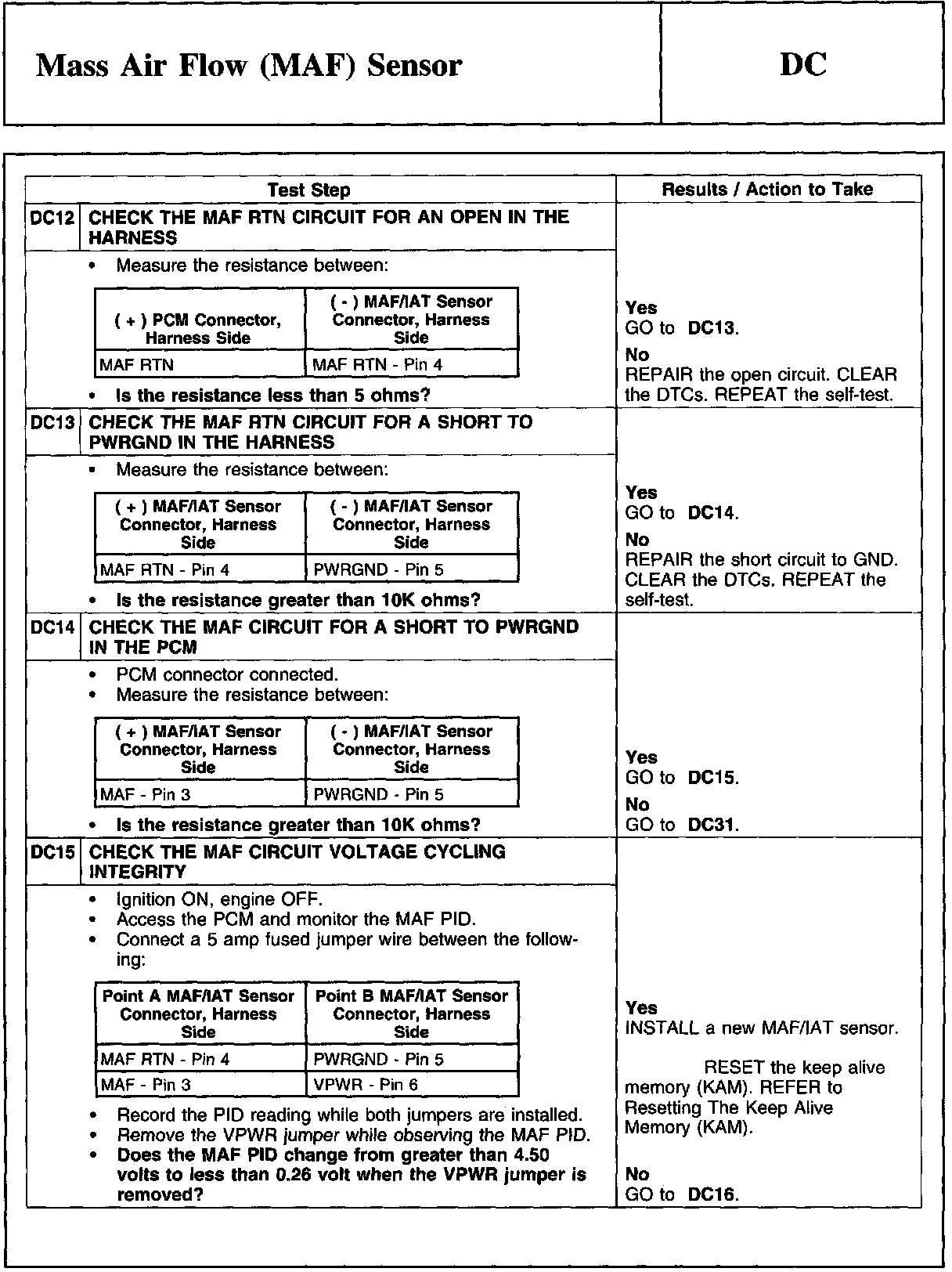

DC12-DC15:

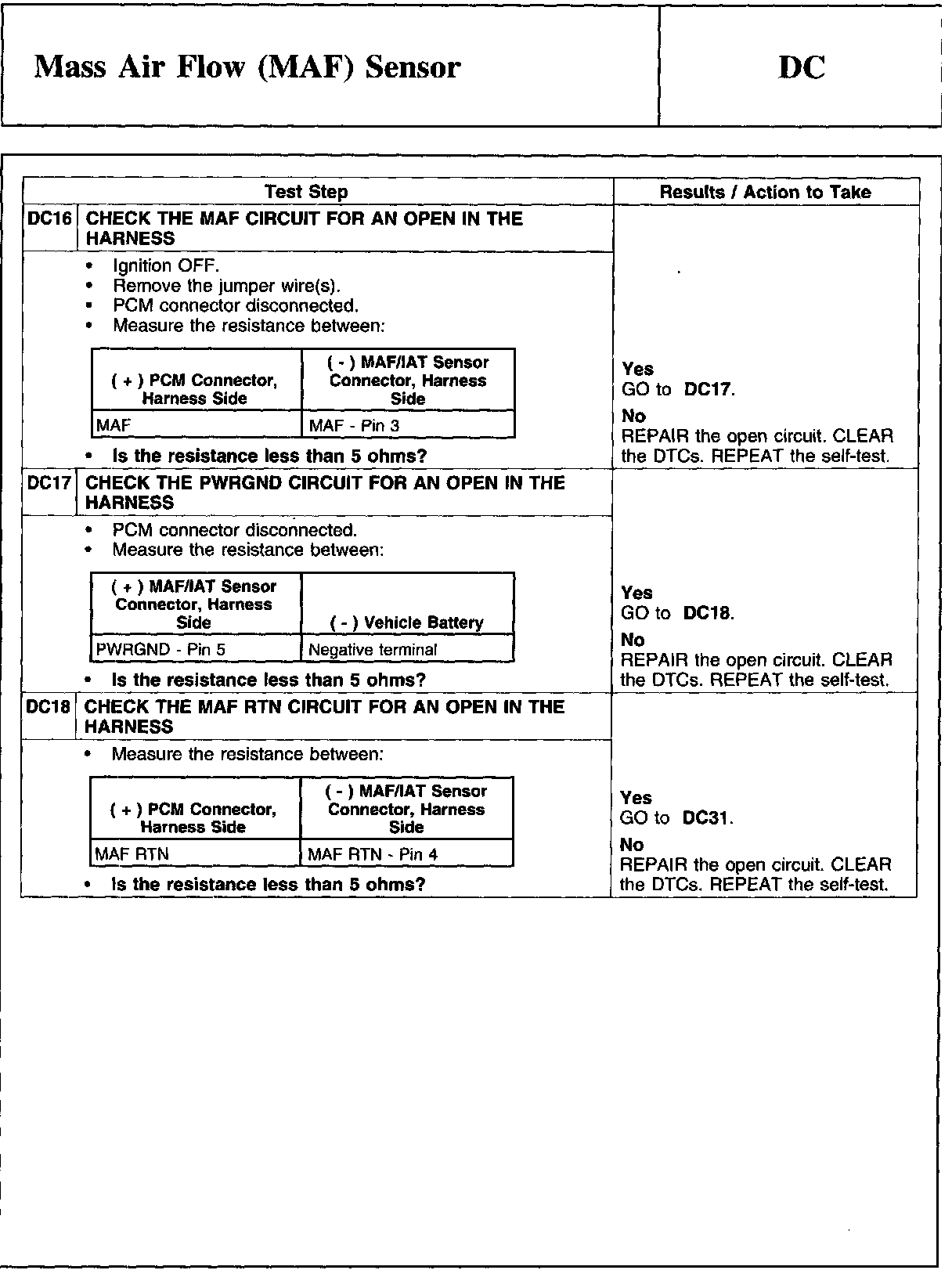

DC16-DC18:

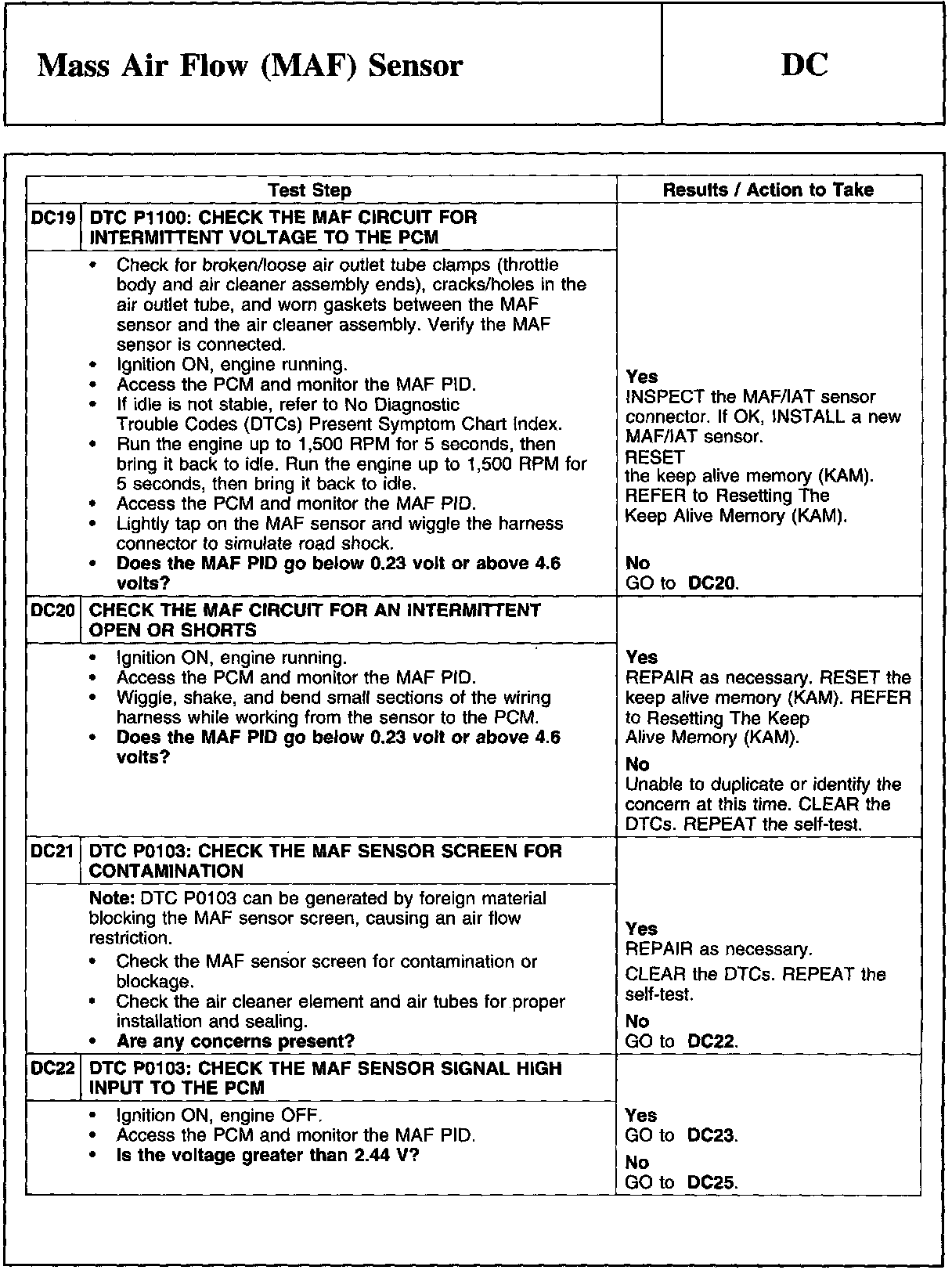

DC19-DC22:

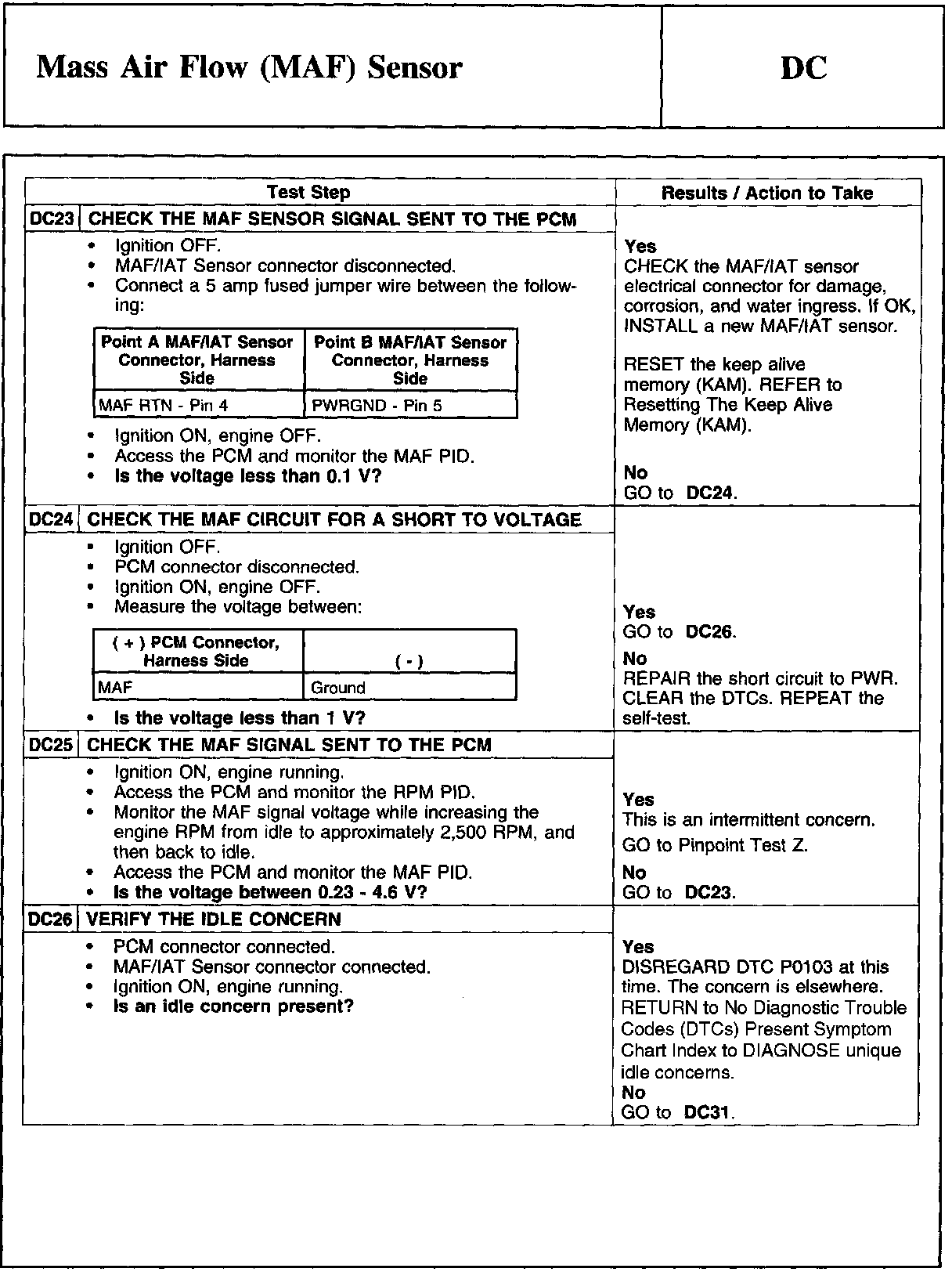

DC23-DC26:

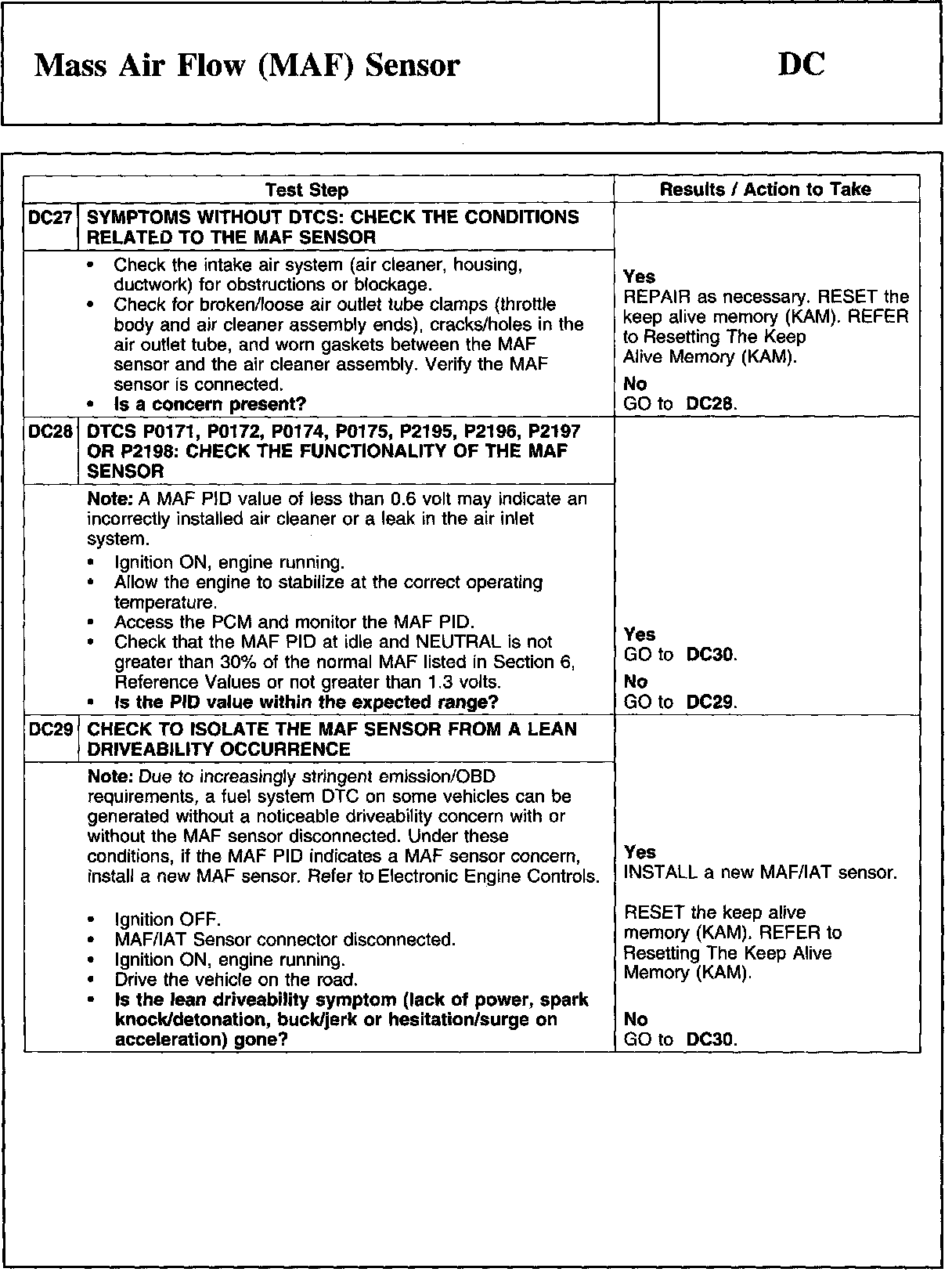

DC27-DC29:

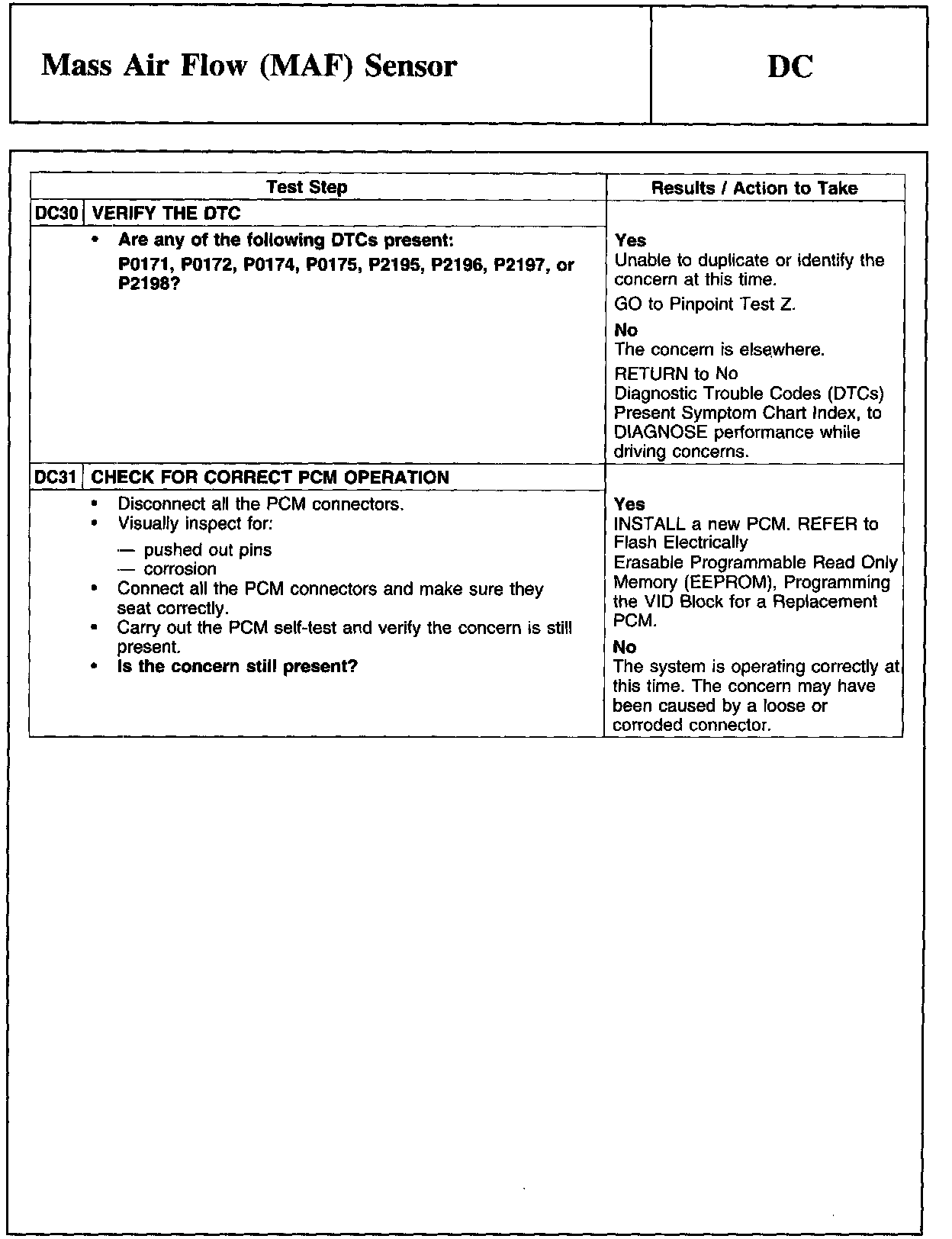

DC30-DC31:
