Quarter Window Motor: Service and Repair

Window Regulator Motor - Rear Quarter

Removal

1. Remove the D-pillar trim panel.

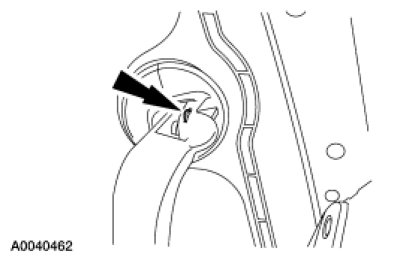

2. Disconnect the rear quarter window regulator motor.
- Remove the retaining clip.

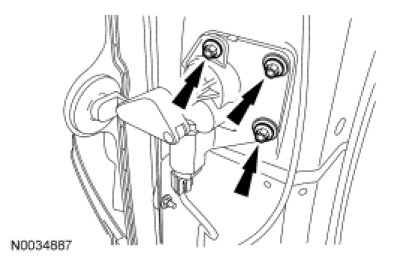

3. Remove the bolts and rear quarter window regulator motor.
- To install, tighten to 9 Nm (80 lb-in).

- Disconnect the electrical connector.





4. To install, reverse the removal procedure.
