Rain Sensor: Service and Repair

Rain Sensor









Removal and Installation

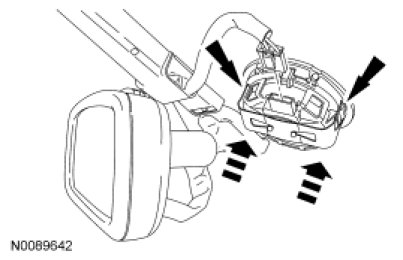

1. Pull outward on the rain sensor cover to remove.

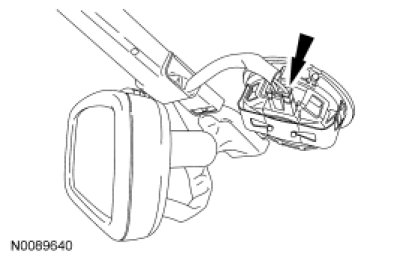

2. Disconnect the rain sensor electrical connector.

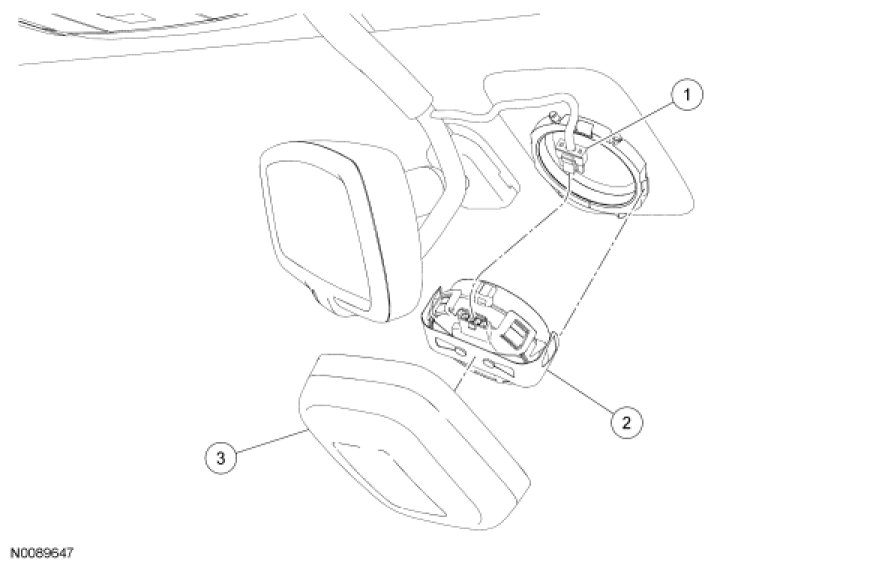

3. NOTE: Prior to releasing the rain sensor retaining clips, it is necessary to apply light inward pressure at the bend of the retaining clips.

Using a suitable screwdriver, release the 2 rain sensor retaining clips from the windshield mounted bracket and remove the rain sensor.





4. To install, reverse the removal procedure.
