Keyless Entry Receiver: Service and Repair

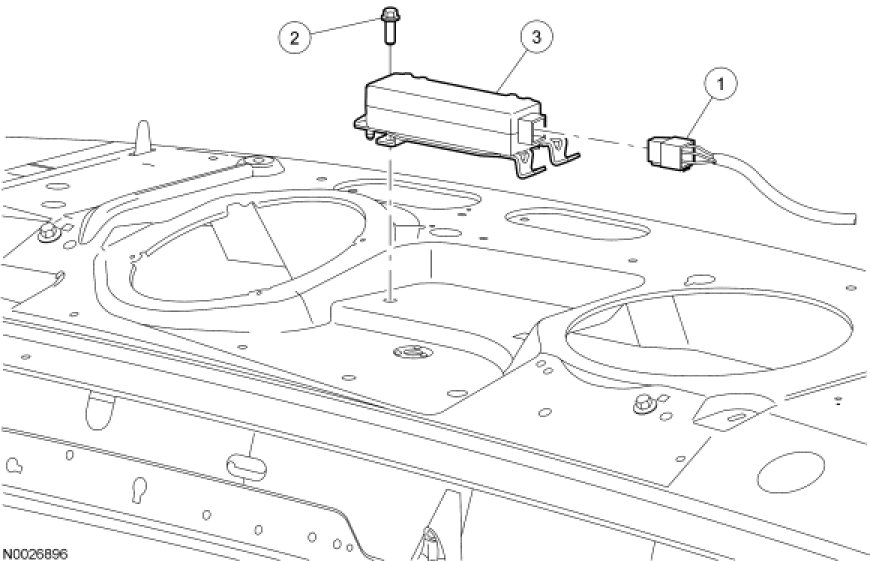

Antenna









Removal and Installation

1. Turn the key to the OFF position.

2. Remove the parcel shelf.

3. Disconnect the antenna electrical connector.

4. Remove the screw and the antenna.

5. To install, reverse the removal procedure.
