Connector Locations

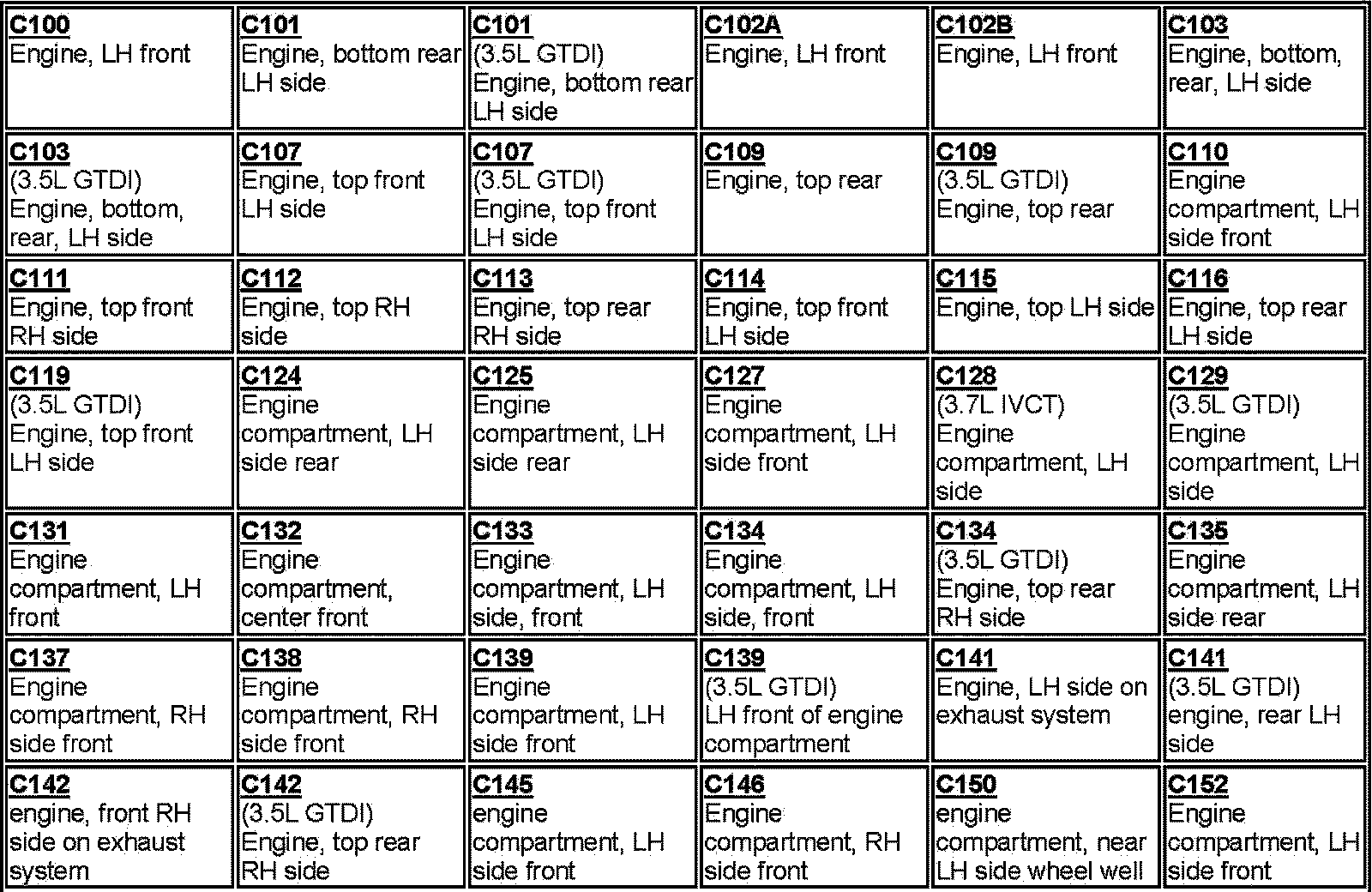

C100-C152:

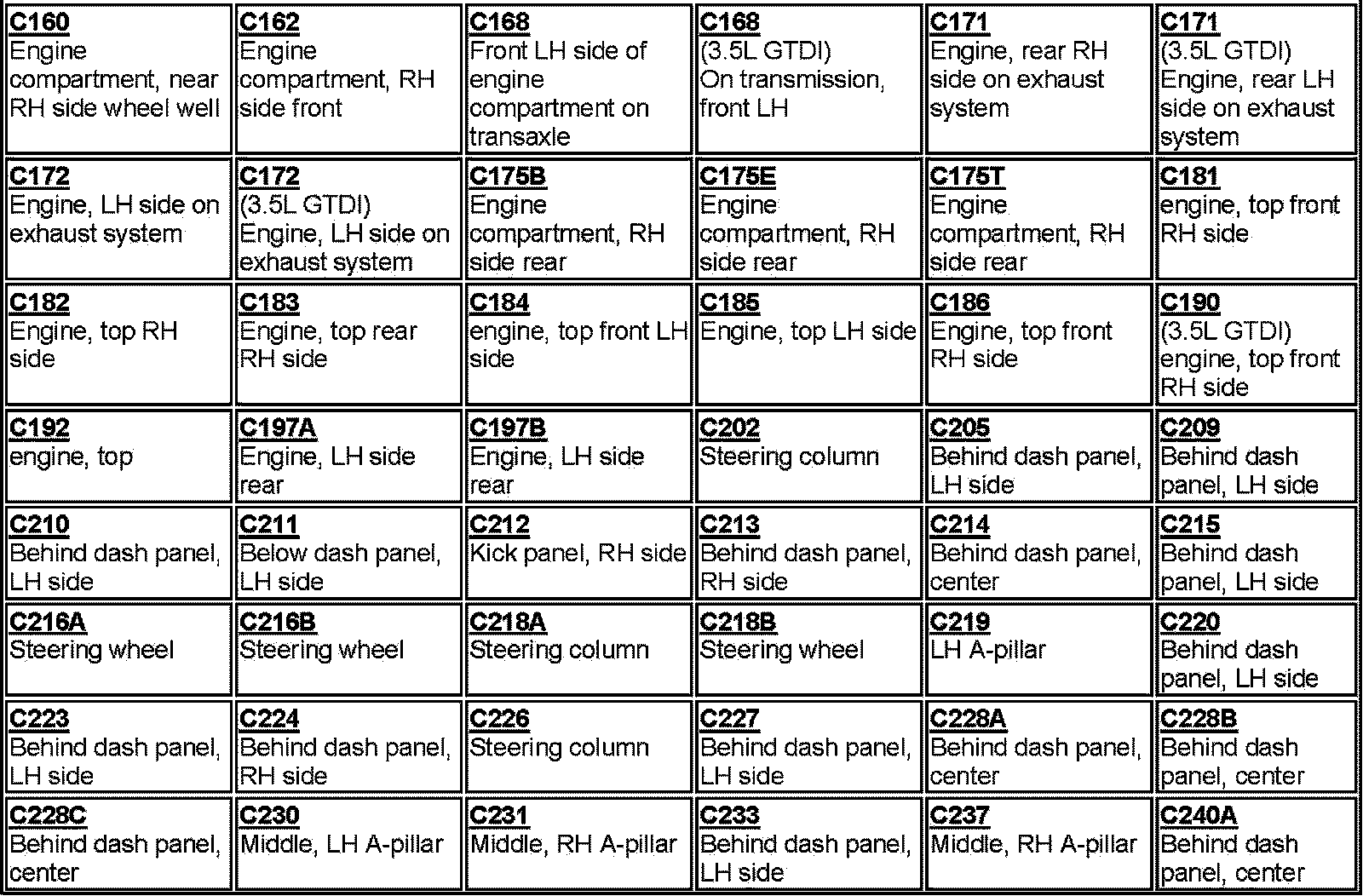

C160-C240A:

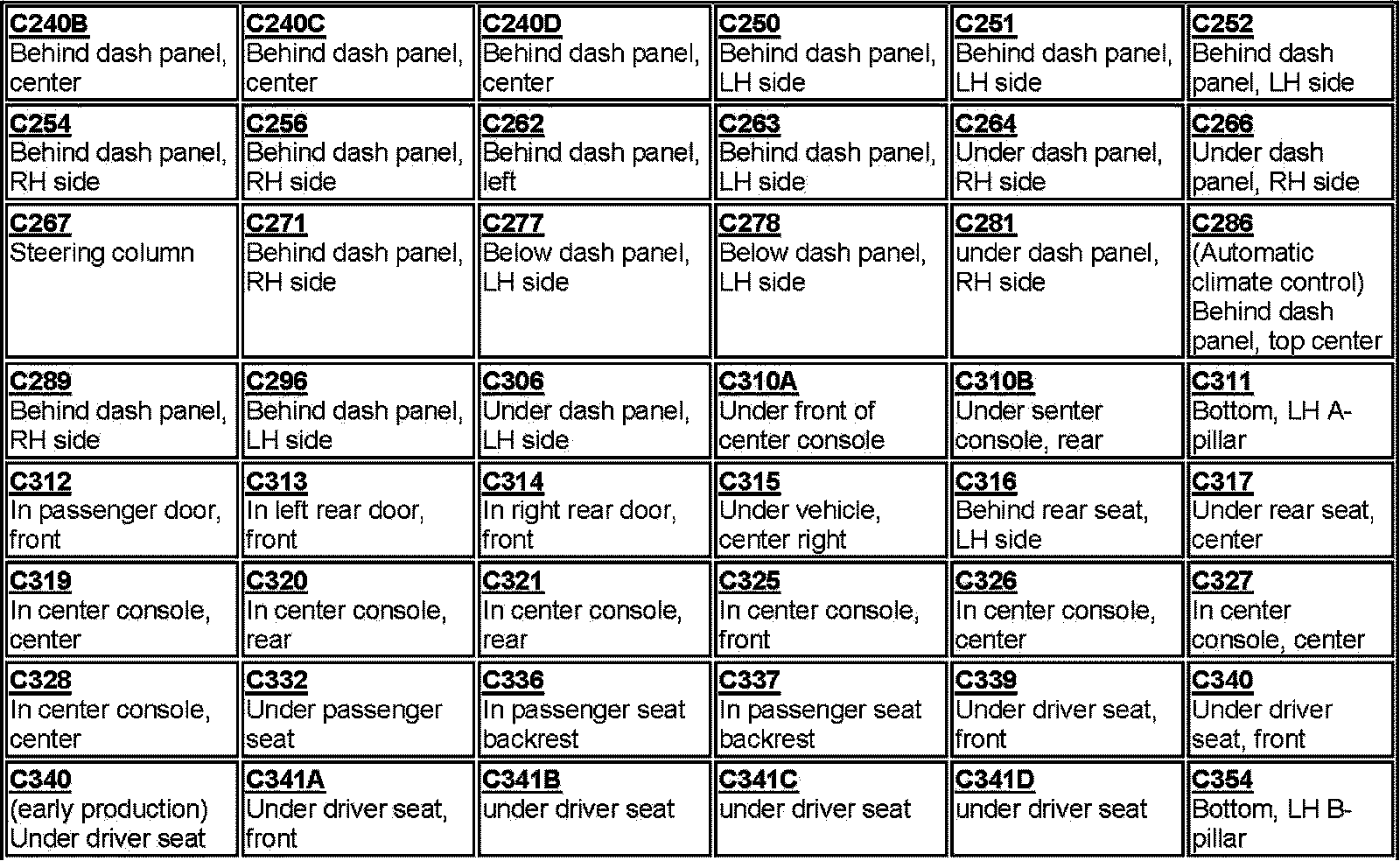

C240B-C354:

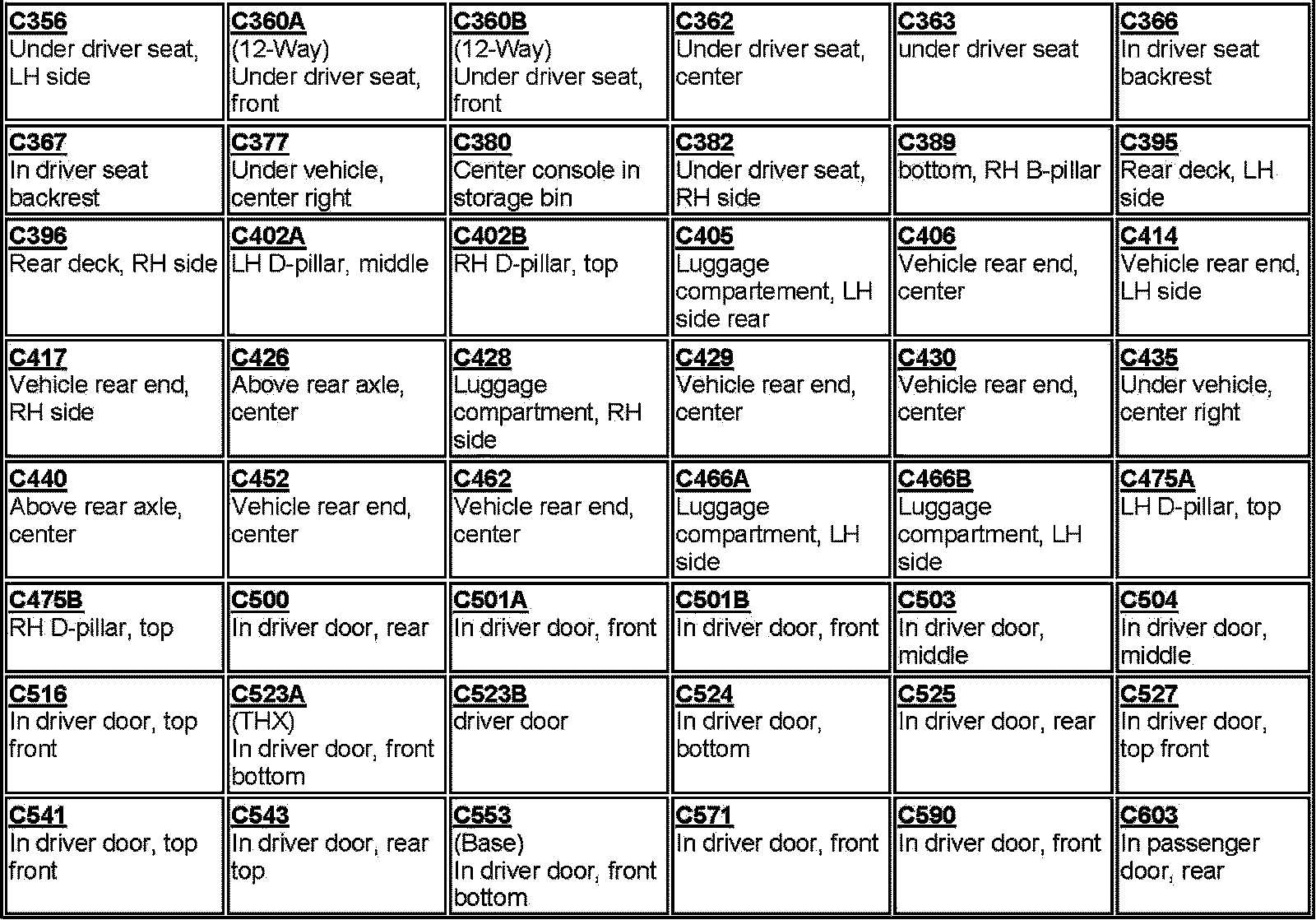

C356-C603:

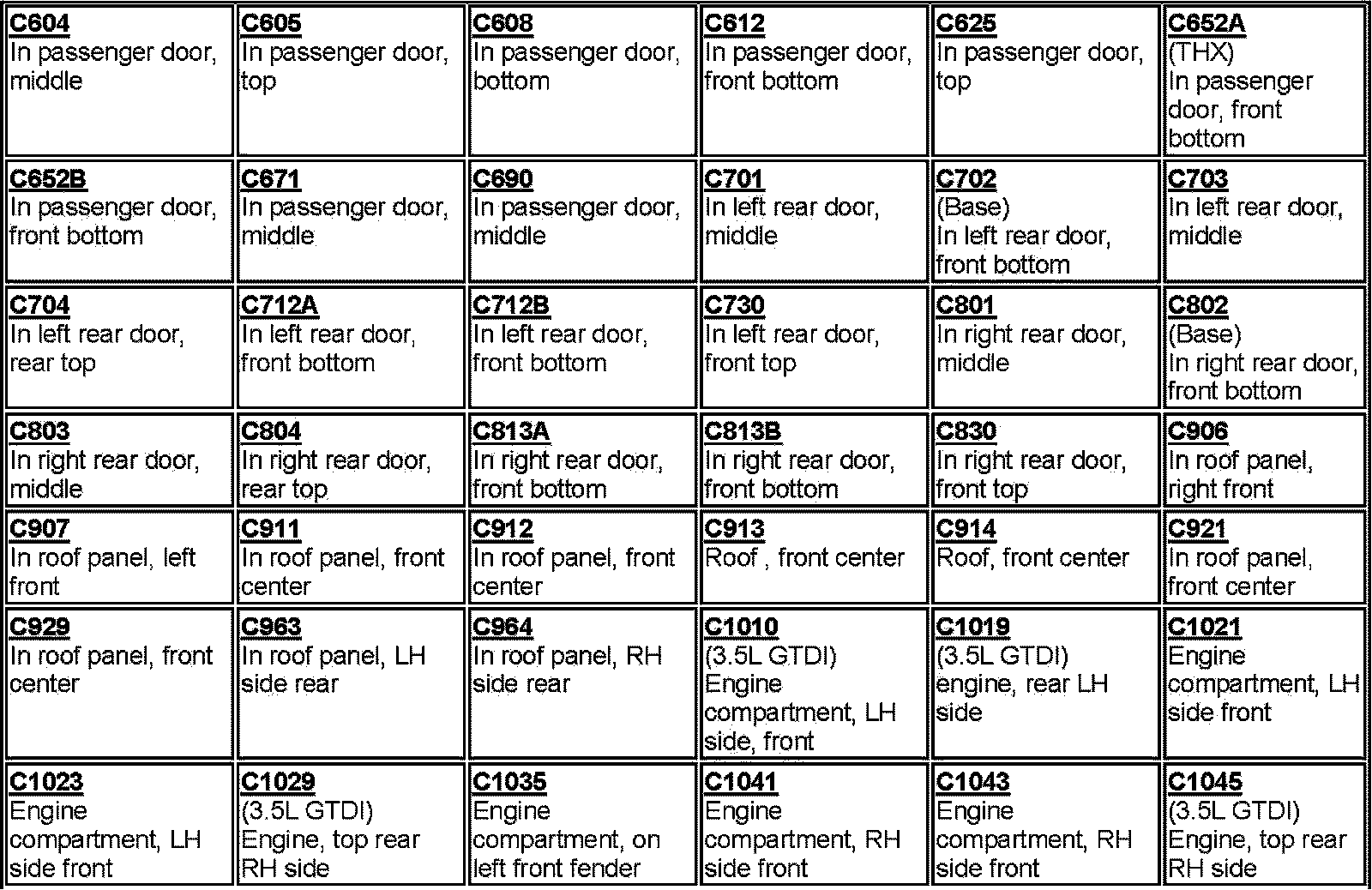

C604-C1045:

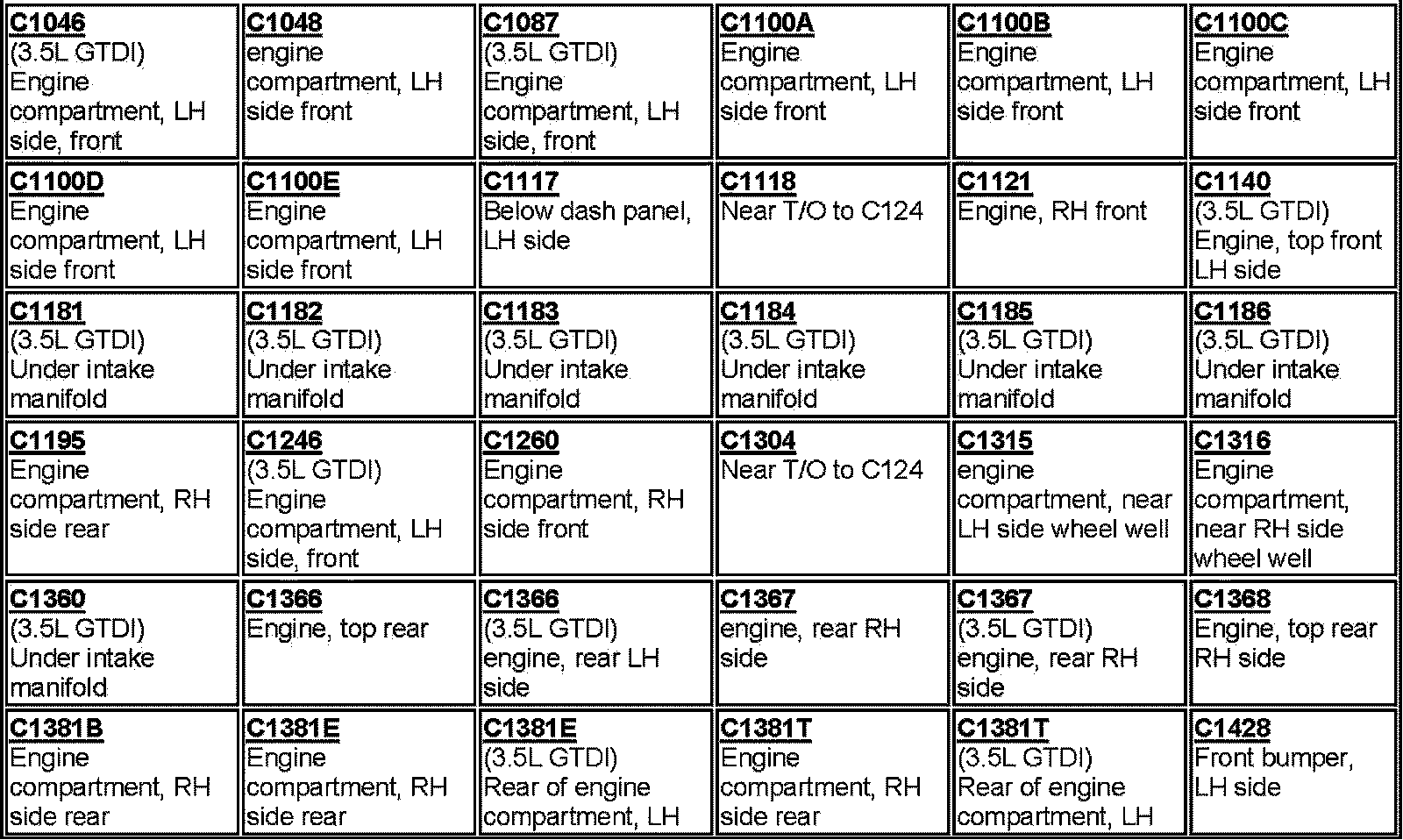

C1046-C1428:

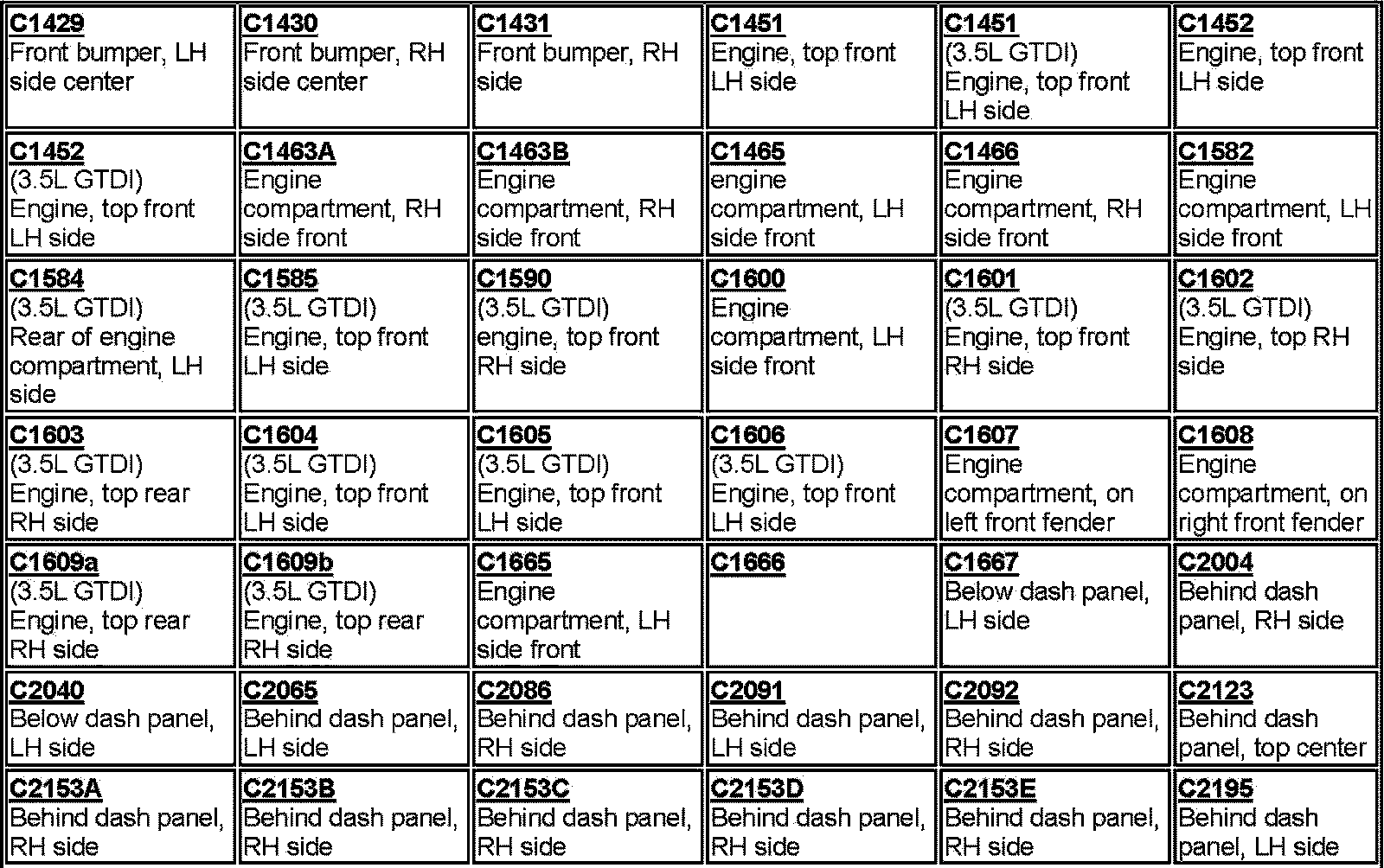

C1429-C2195:

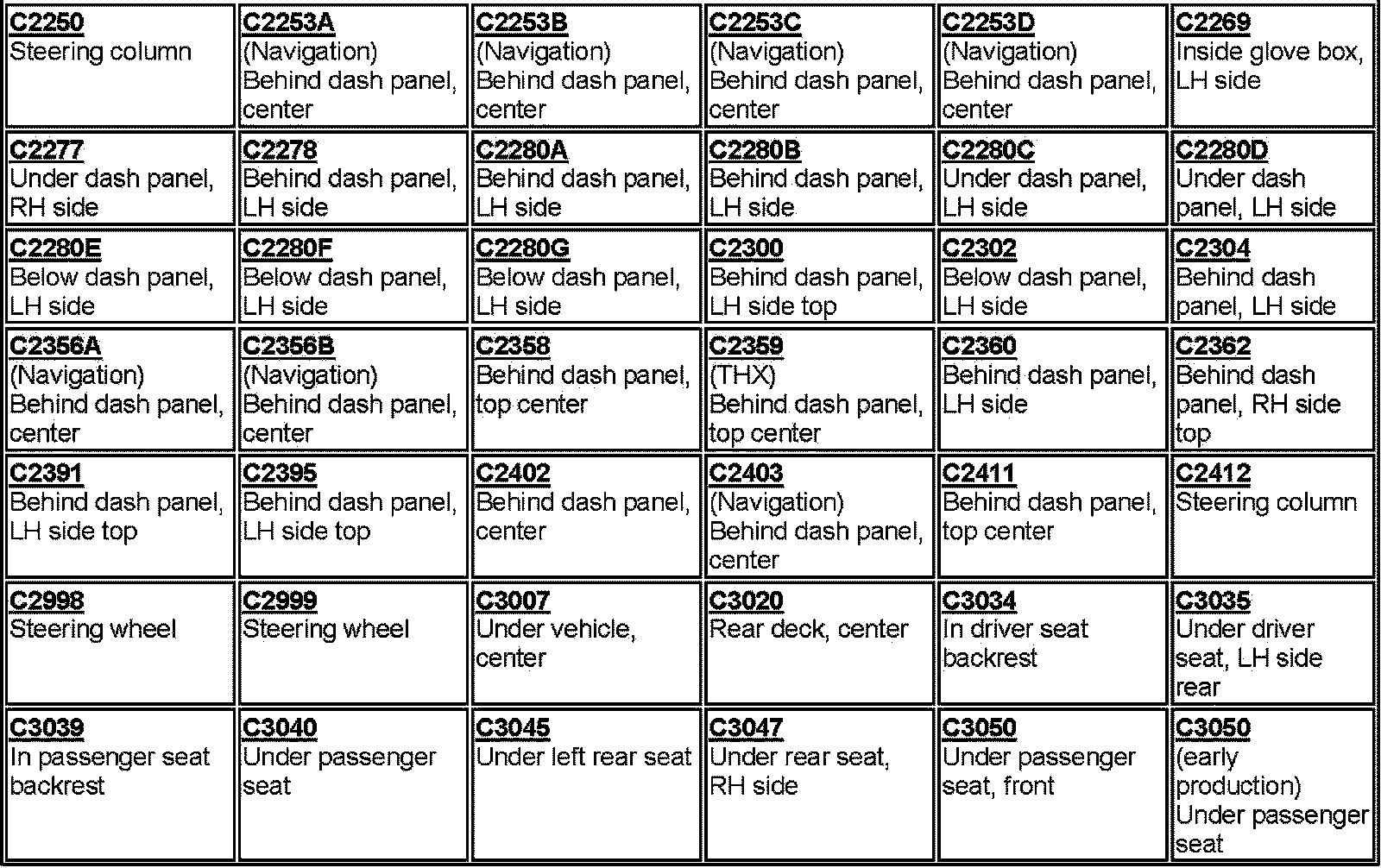

C2250-C3050:

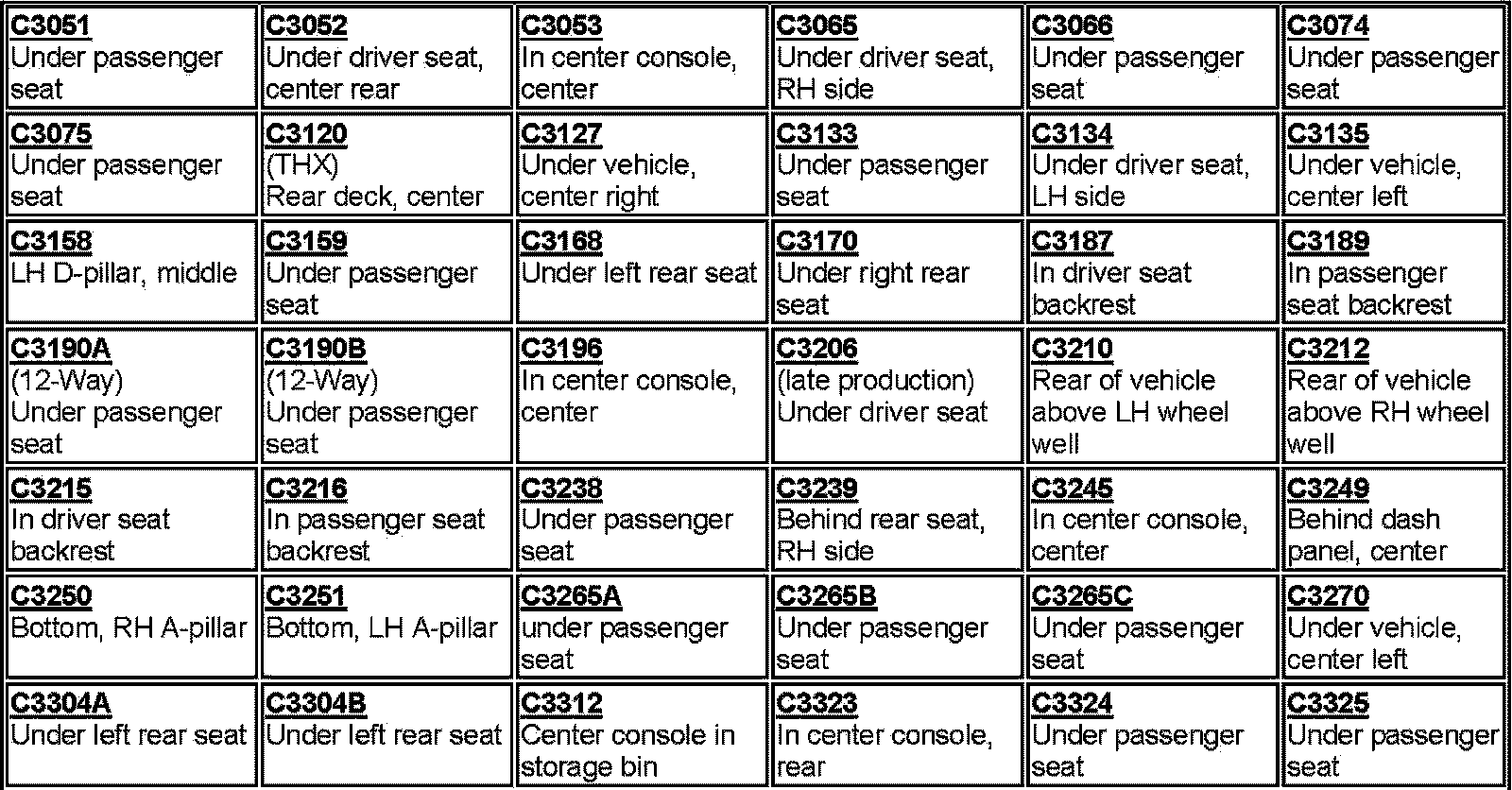

C3051-C3325:

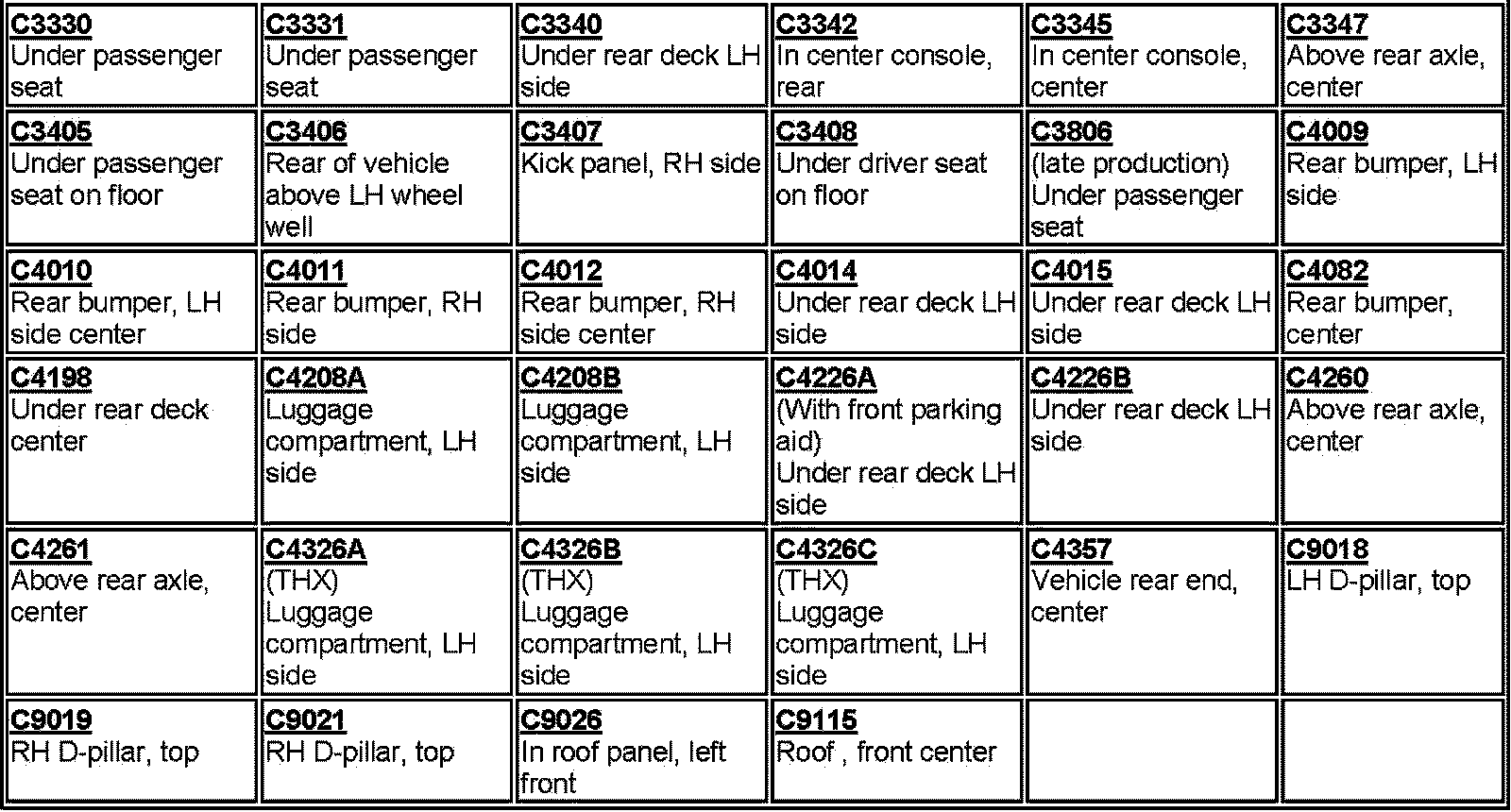

C3330-C9115:
