Interior Lighting Module: Service and Repair

Interior Lighting Control Module (ILCM)









Removal and Installation

1. Remove the floor console. For additional information, refer to Instrument Cluster / Carrier &/or Interior Moulding / Trim.

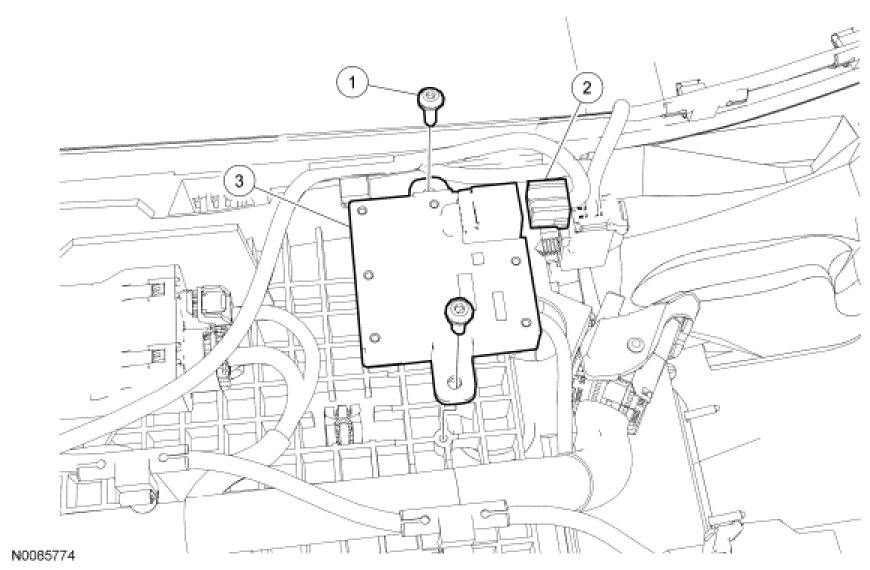

2. Remove the 2 bolts and the Interior Lighting Control Module (ILCM).

3. Disconnect the electrical connector.

4. To install, reverse the removal procedure.
