Connector Locations

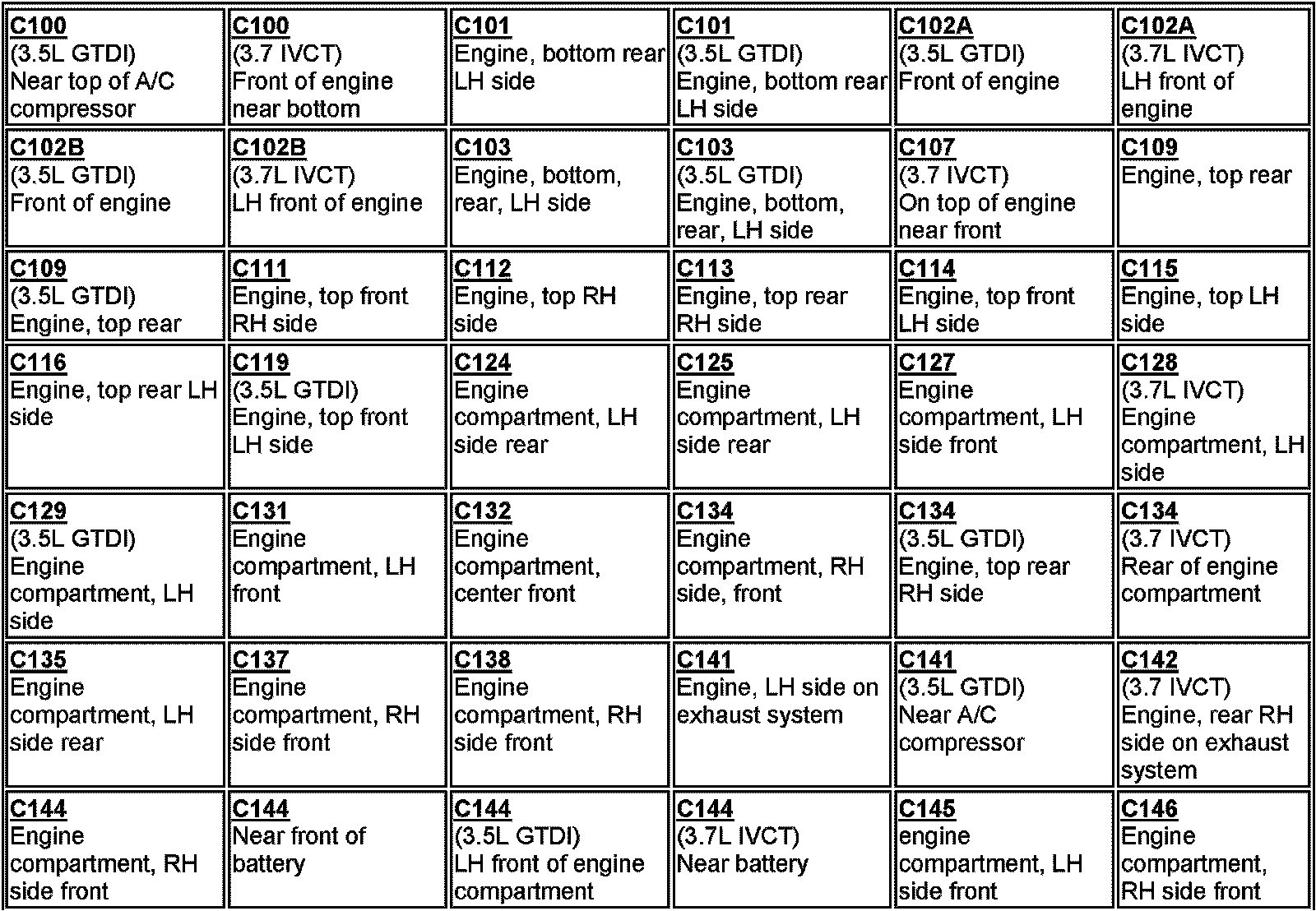

C100-C146:

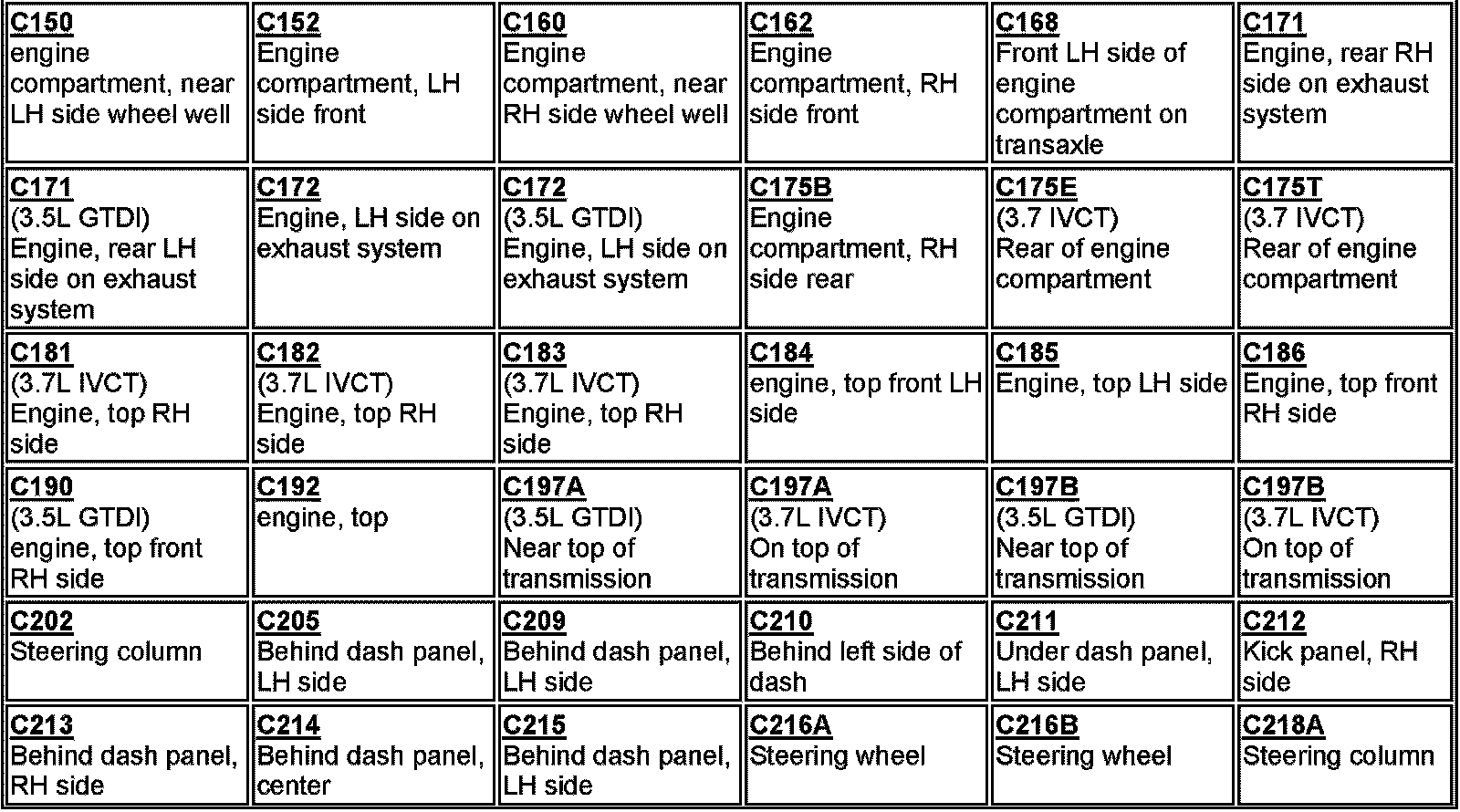

C150-C218A:

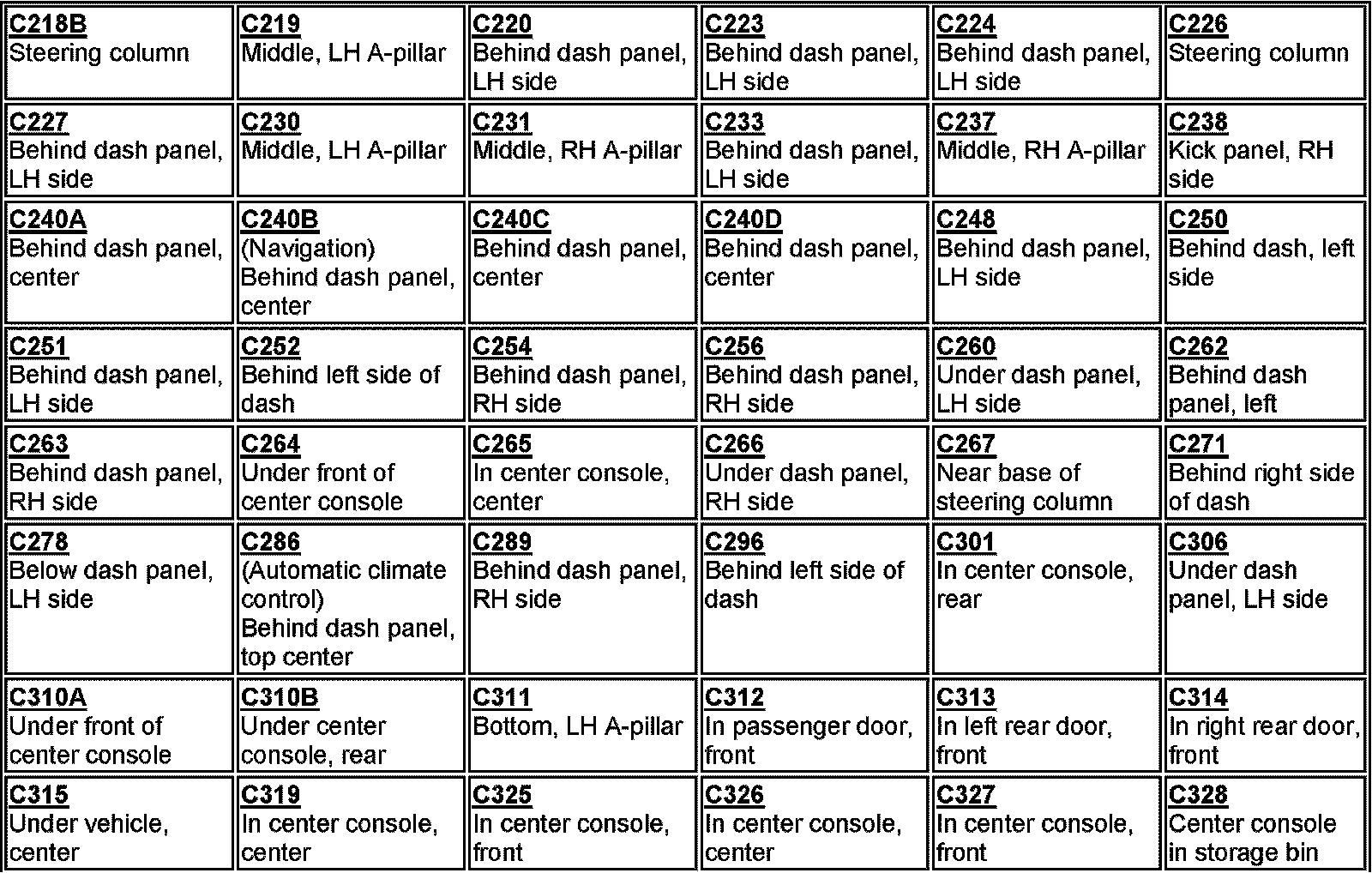

C218B-C328:

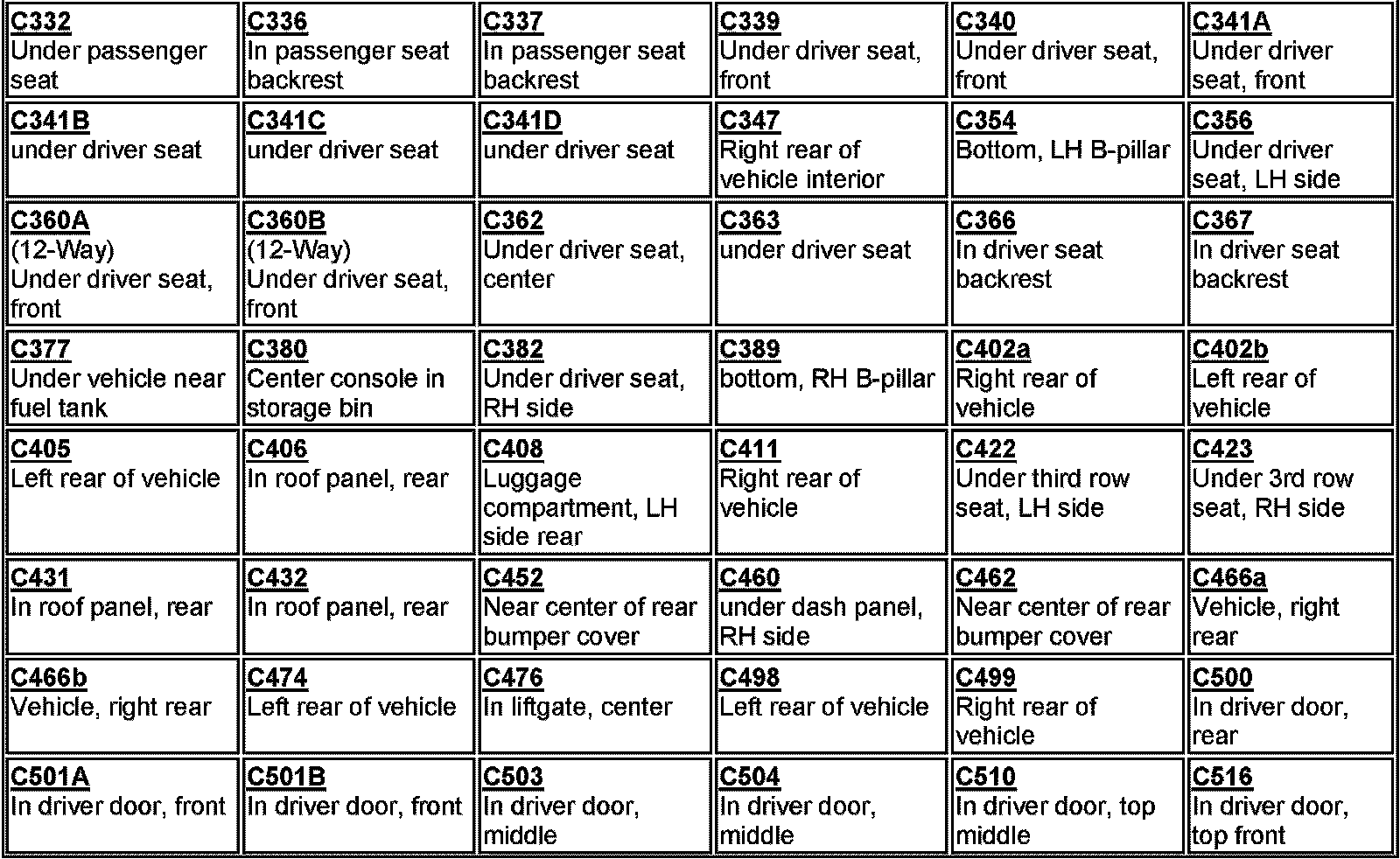

C332-C516:

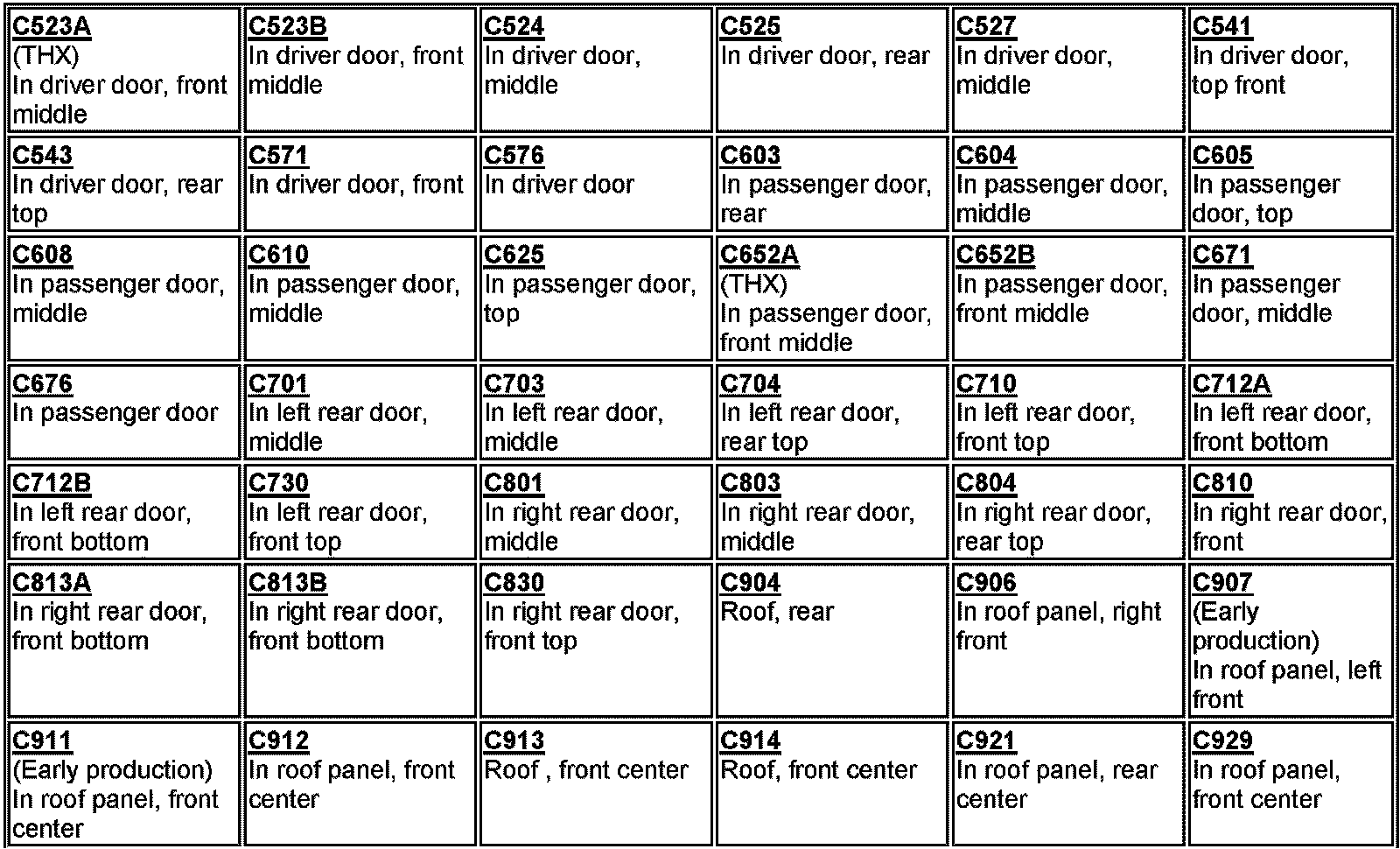

C523A-C929:

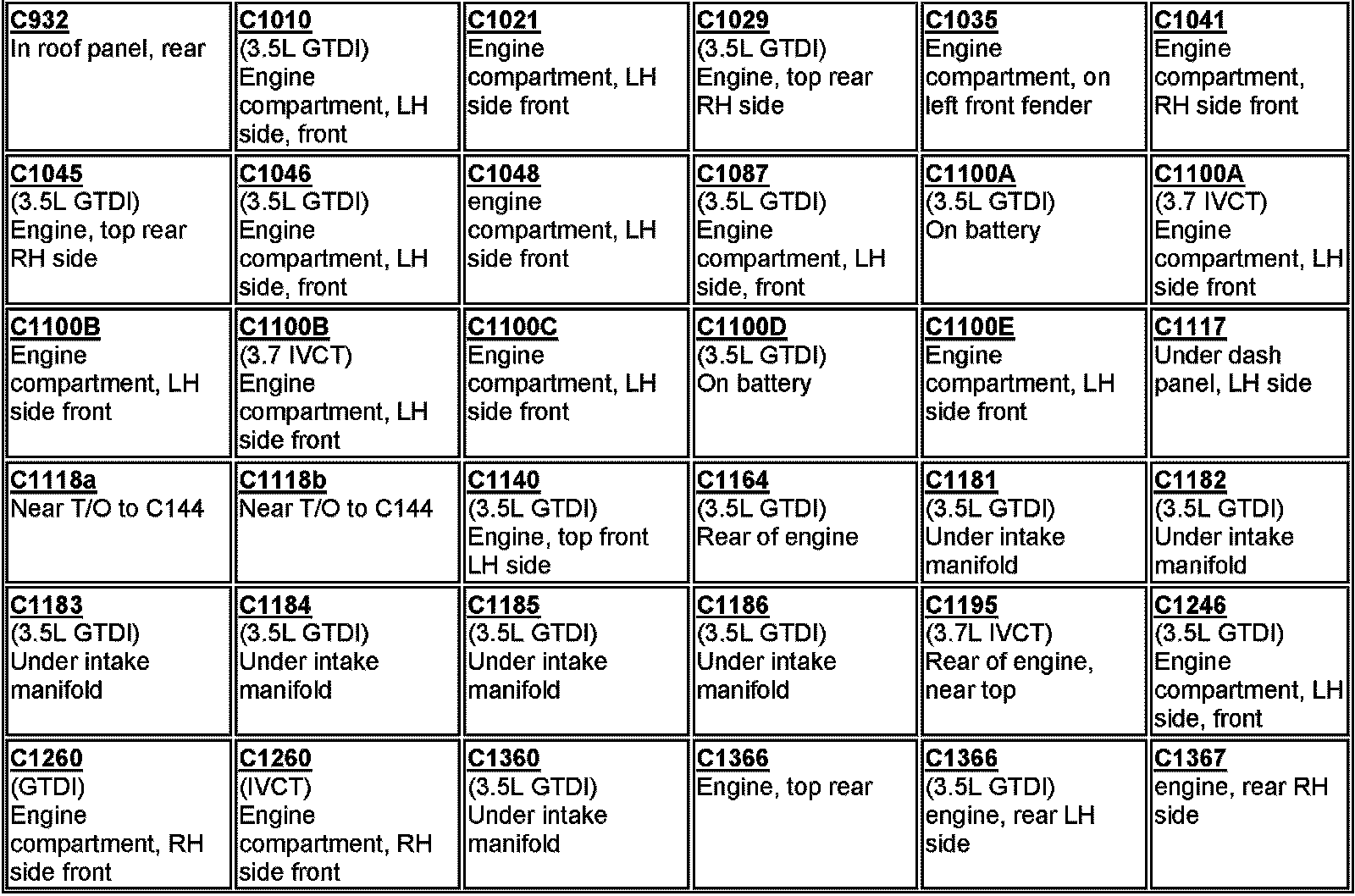

C932-C1367:

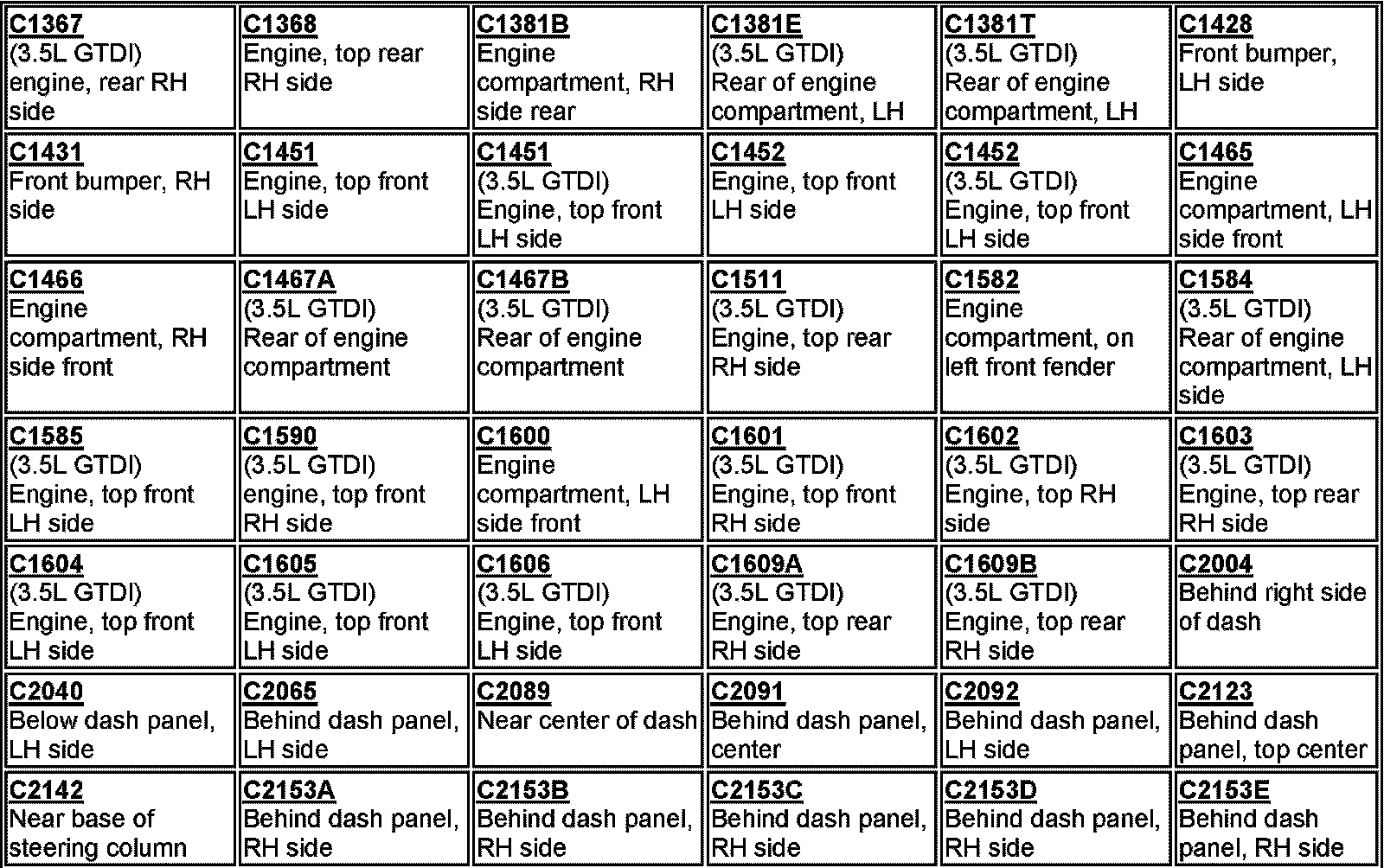

C1367-C2153E:

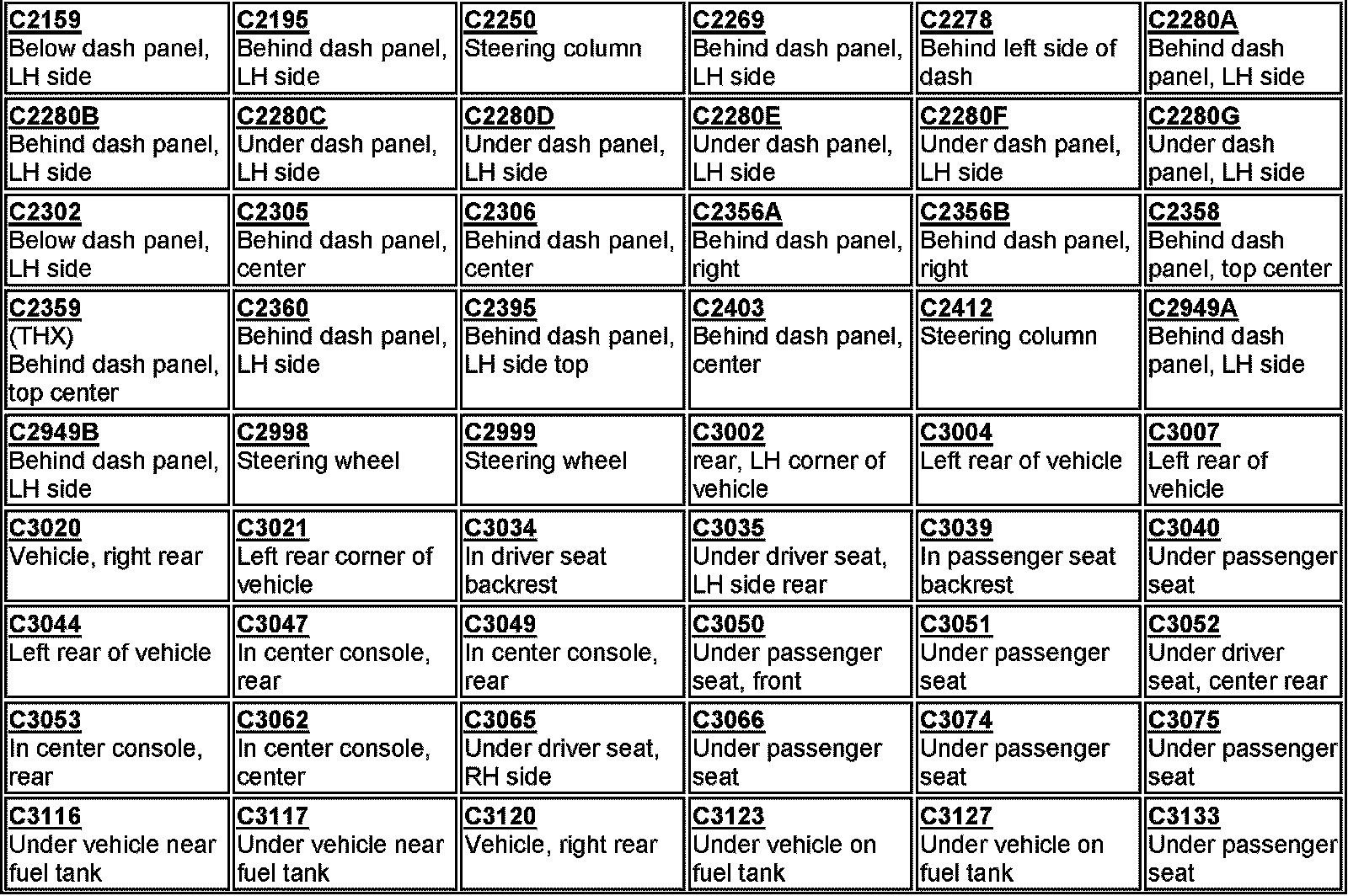

C2159-C3133:

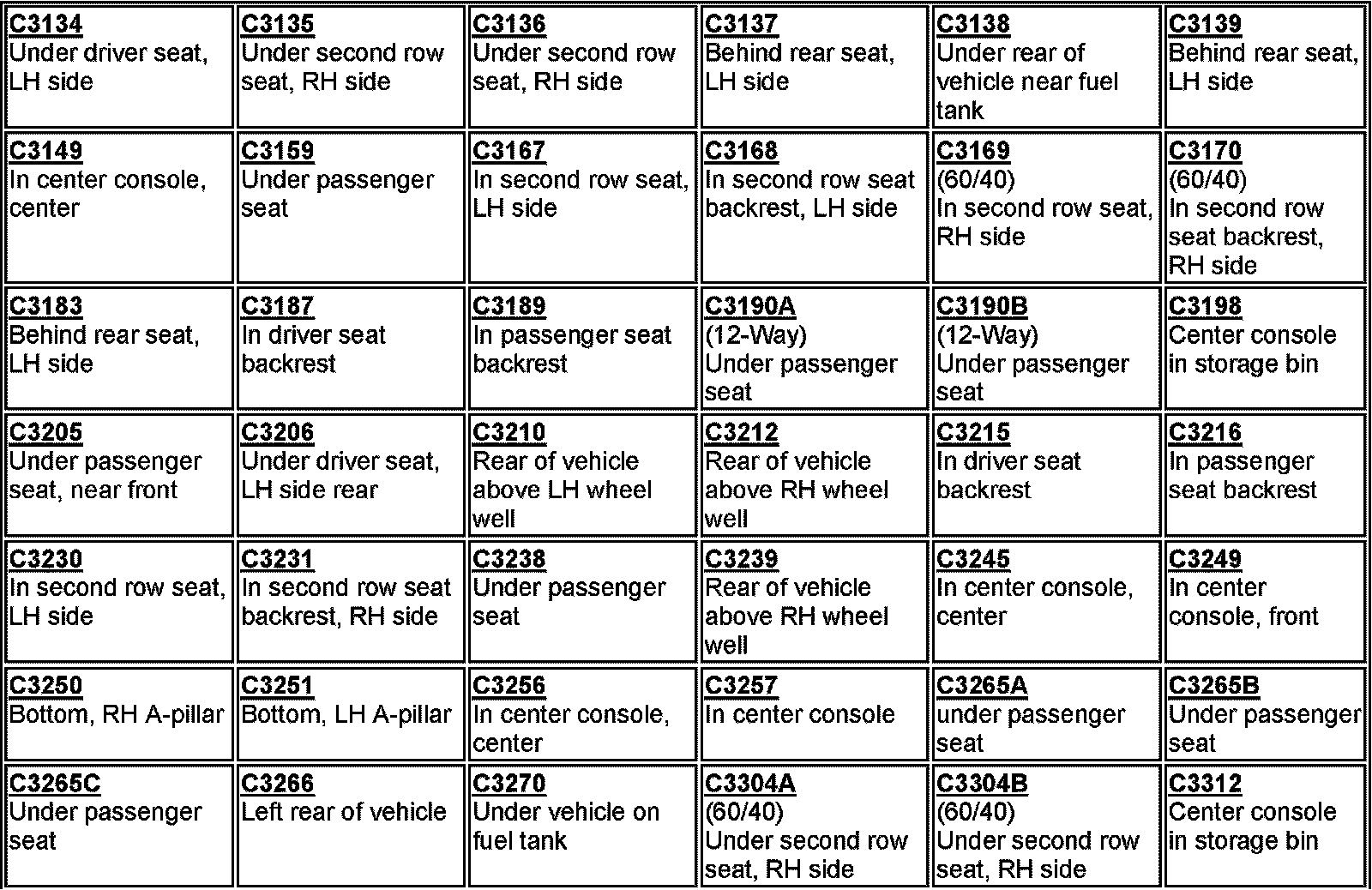

C3134-C3312:






C3332-C4009:

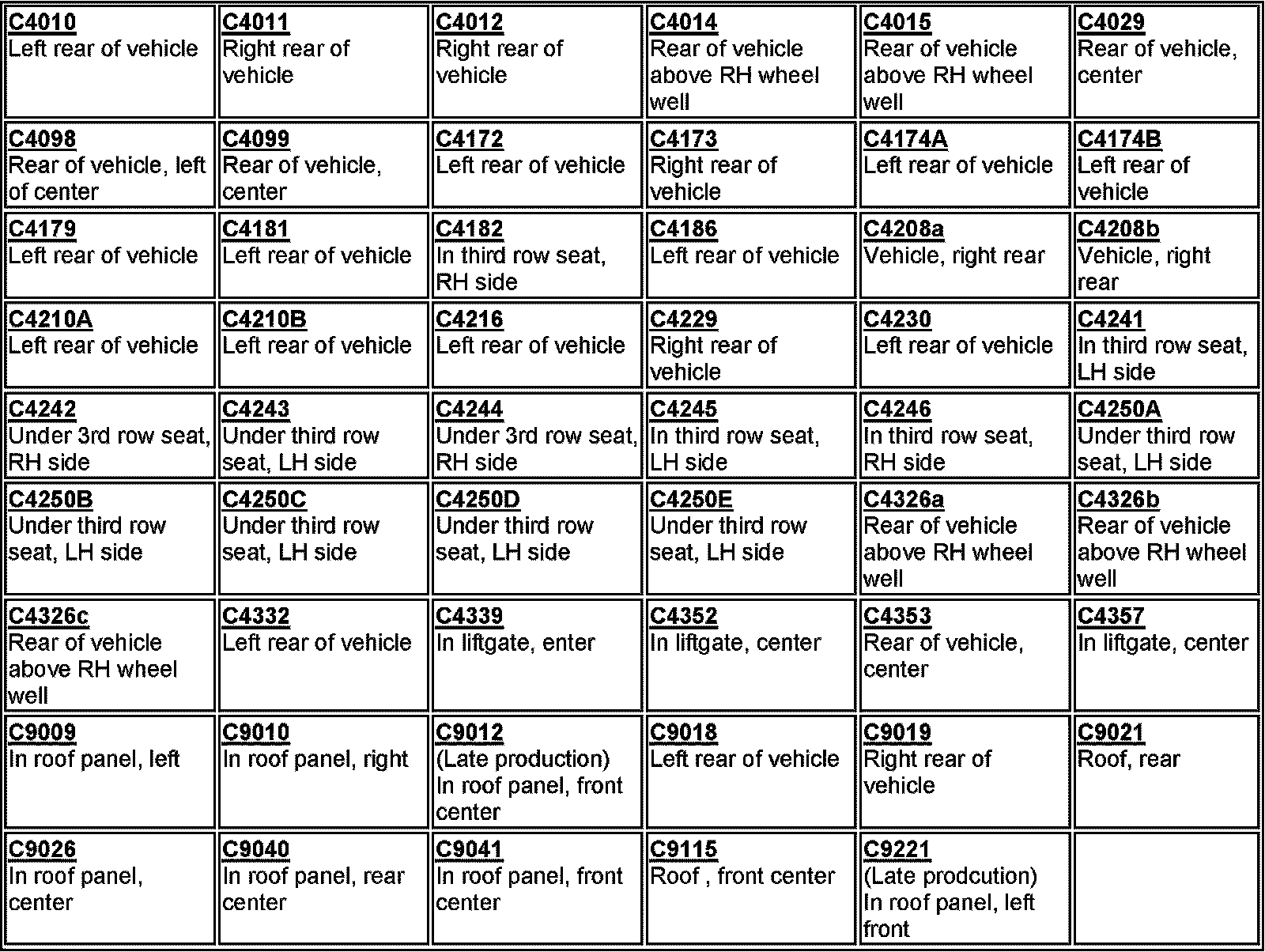

C4010-C9221:
