Master window control switch: Schematic

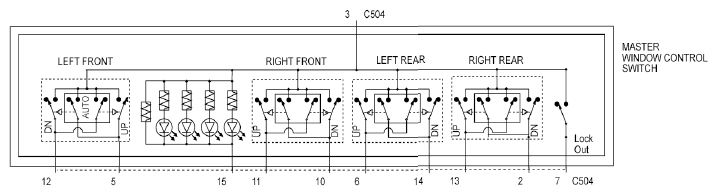

Fig 1: Master Window Control Switch - Schematic

G06380829

Courtesy of FORD MOTOR CO.
