Global Positioning System Module: Service and Repair

Global Positioning System Module (GPSM)









Removal and Installation

1. Remove the center instrument panel finish panel. For additional information, refer to Instrument Cluster / Carrier &/or Interior Moulding / Trim.

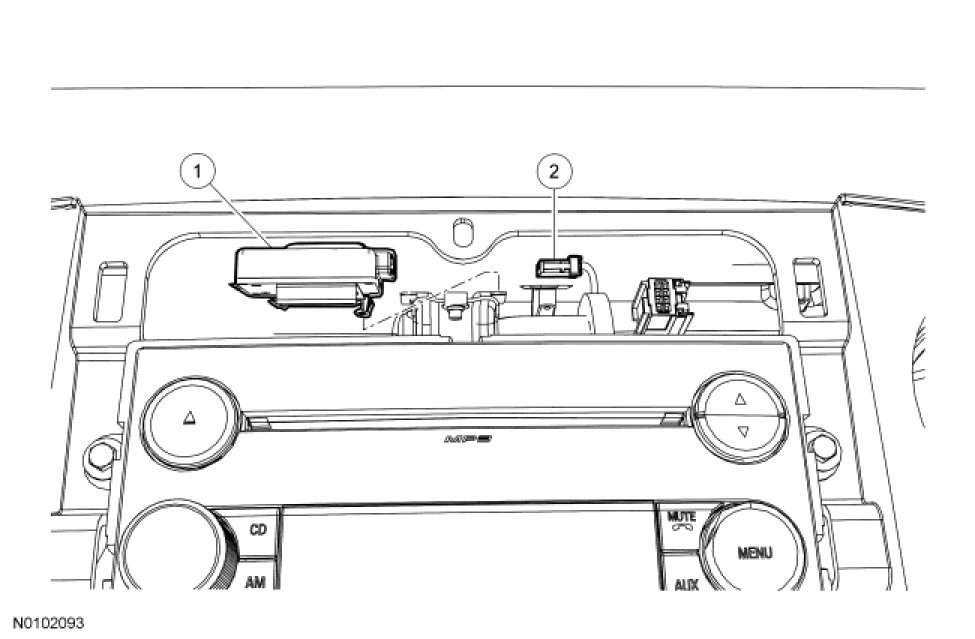

2. Release the clips and remove the Global Positioning System Module (GPSM).
- Disconnect the electrical connector.

3. To install, reverse the removal procedure.
