Home >> Lincoln >> 2010 >> Navigator 2WD V8-5.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Courtesy Lamp >> System Diagram >> Interior/MAP Lamp Assembly, Front
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

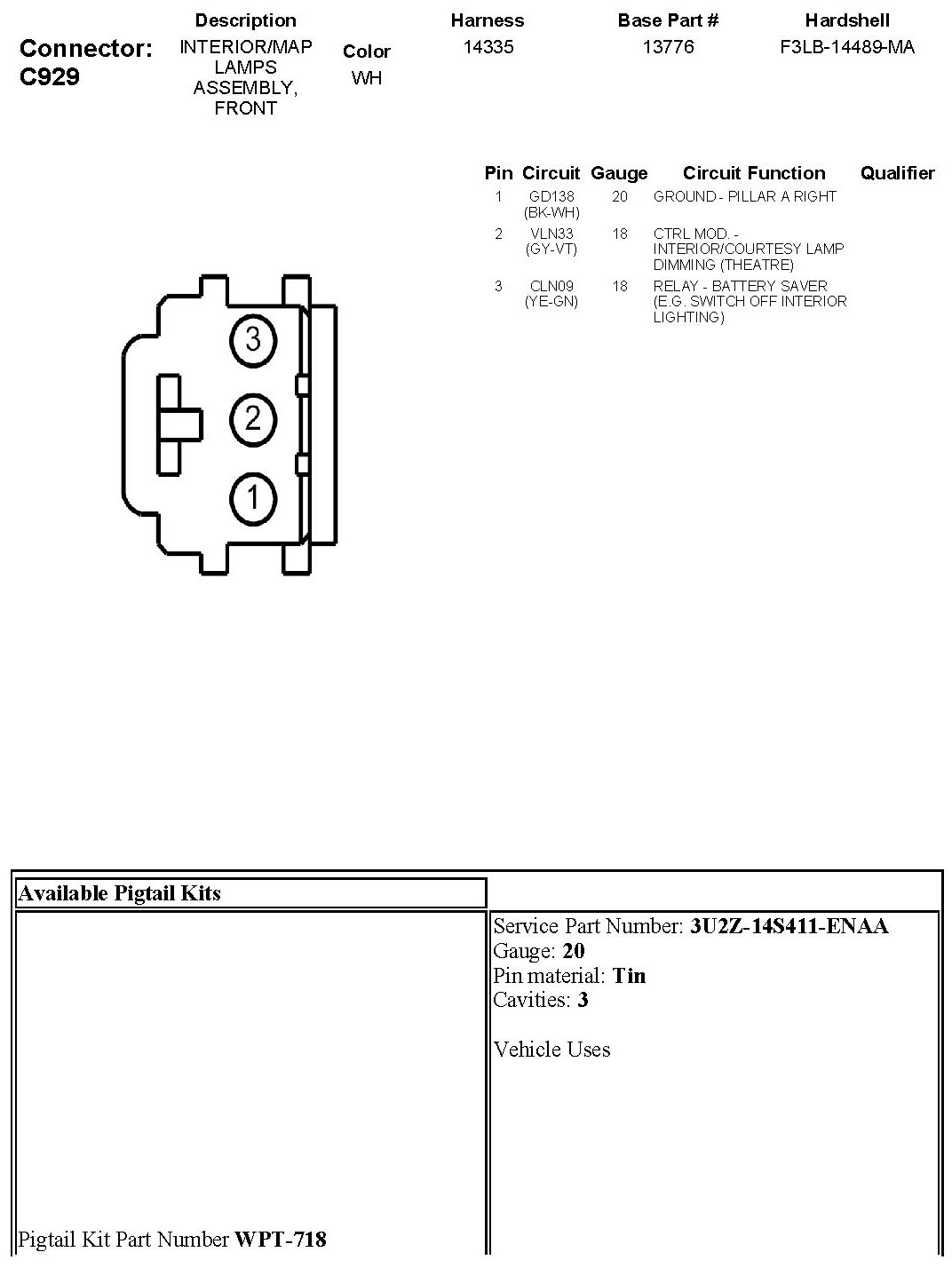

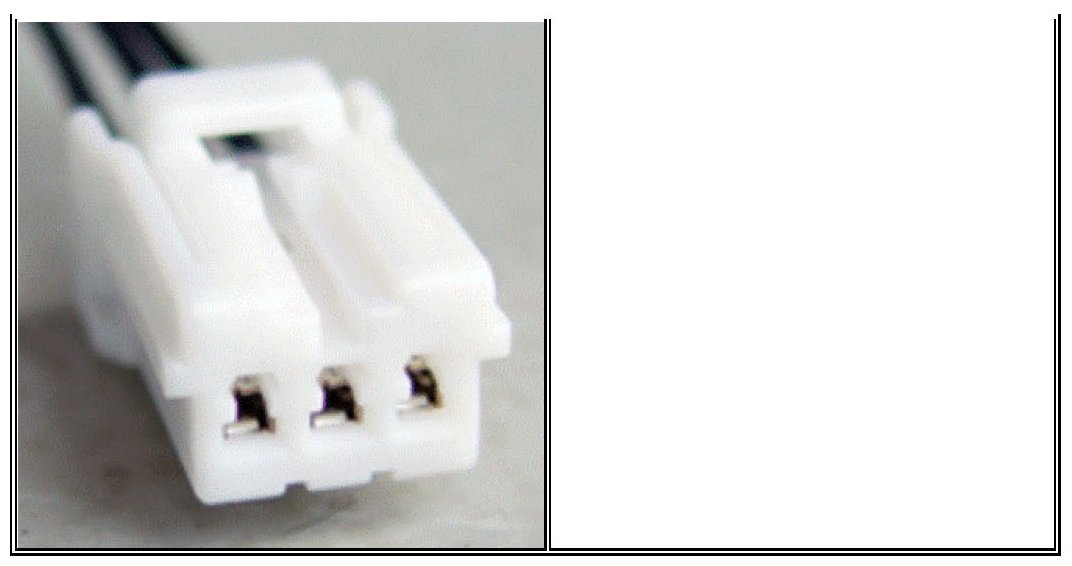

Interior/MAP Lamp Assembly, Front
