Timing Chain Tensioner

Timing Drive Components

NOTE: The LH timing chain tensioner arm has a bump near the dowel hole for identification.

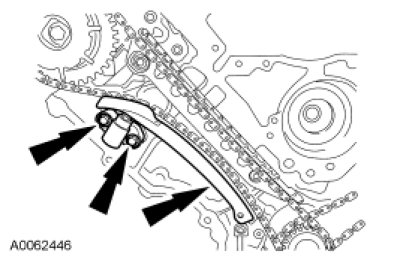

Position the LH timing chain tensioner arm on the dowel pin and install the LH timing chain tensioner and the 2 bolts.
Tighten to 25 Nm (18 lb-ft).

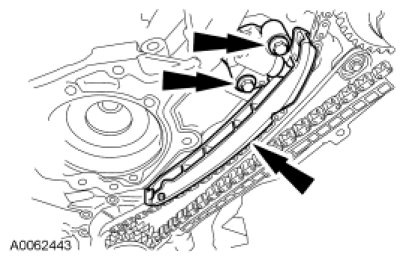

Position the RH timing chain tensioner arm on the dowel pin and install the RH timing chain tensioner and the 2 bolts.
Tighten to 25 Nm (18 lb-ft).
