Torque Converter Exploded View

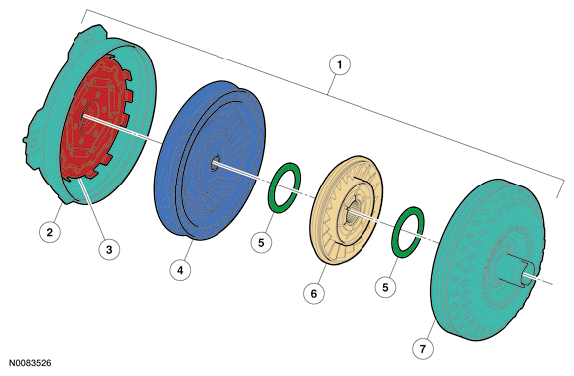

Fig 1: Exploded View Of Torque Converter

Courtesy of FORD MOTOR CO.

PART NUMBER REFERENCE

Item	Part Number	Description
1	7902	Torque converter assembly
2	-	Cover assembly with 3-plate clutch
3	-	3-plate clutch
4	-	Turbine and damper assembly
5	-	Needle bearing assemblies
6	-	Reactor assembly with One-Way Clutch (OWC)
7	-	Impeller assembly
