Stability Control Sensor Cluster Connector - C3073
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Stability Control Sensor Cluster Connector - C3073

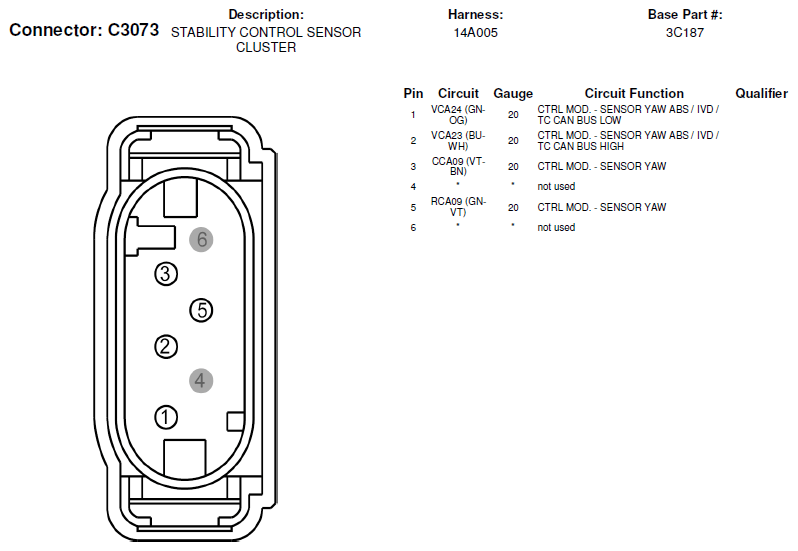

Fig 1: Stability Control Sensor Cluster Connector End View (C3073)
Courtesy of FORD MOTOR CO.
