Exploded View Images




Main Control Valve Body

Disassembly

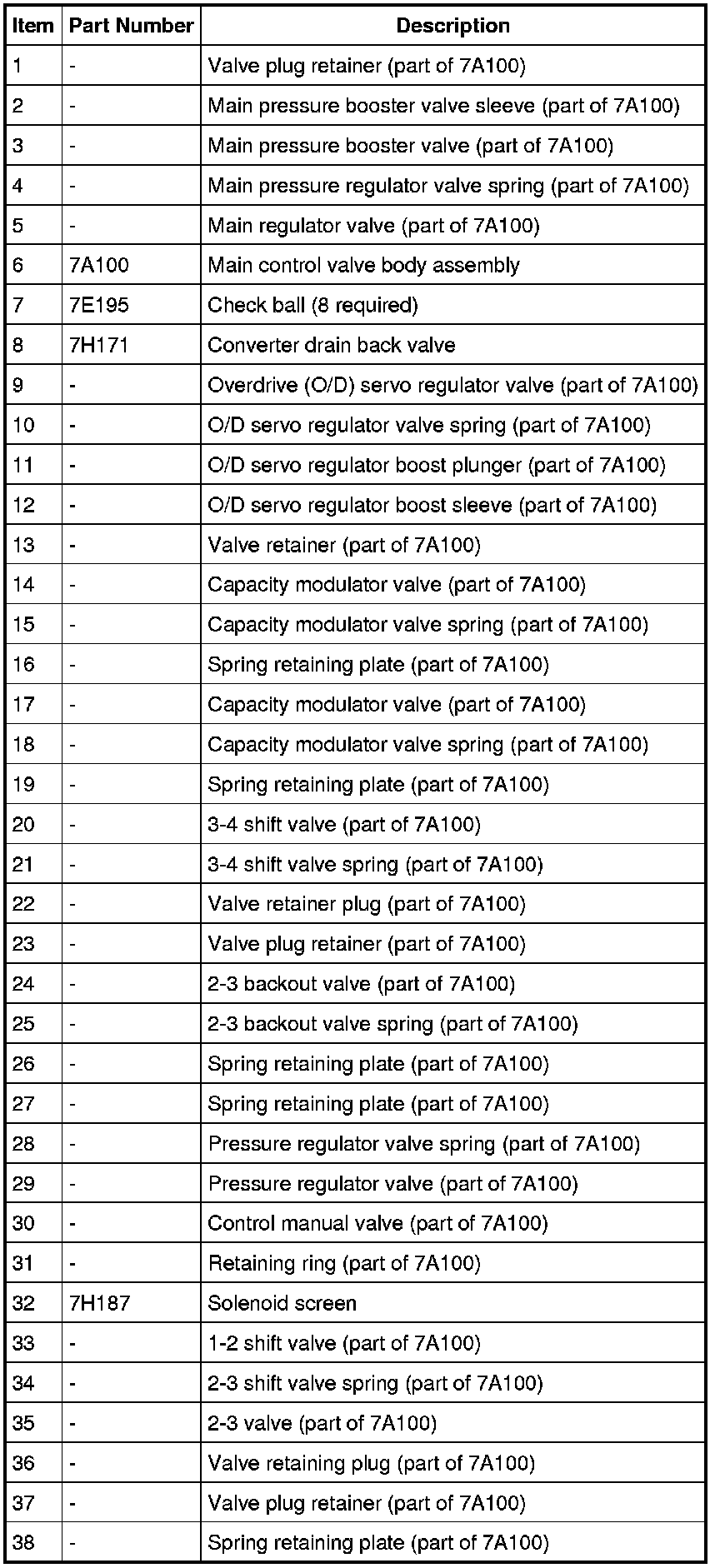

Main Control Valve Body - Disassembled View

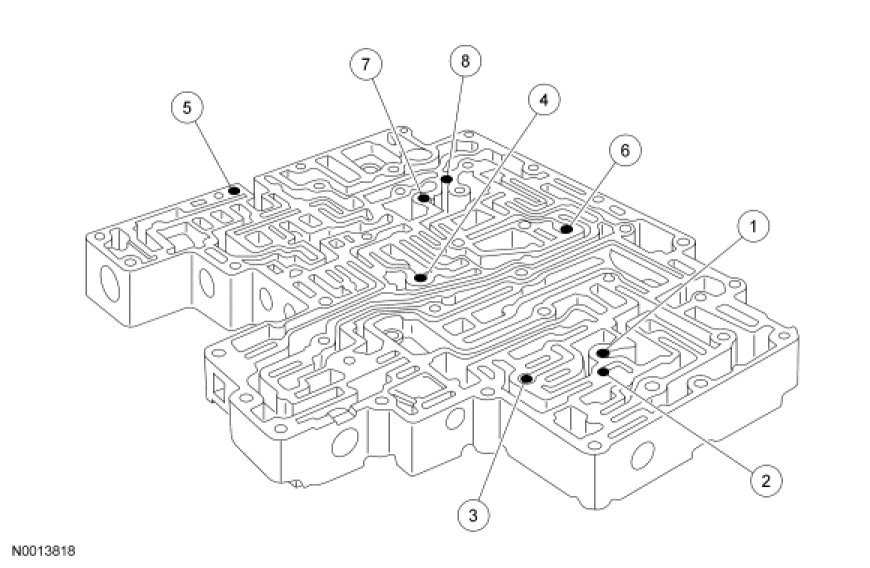

Note the location of the 8 coasting booster valve shuttle balls.
