Exterior Lighting Module: Service and Repair

Ballast









Removal and Installation

1. Remove the headlamp assembly. For additional information, refer to Headlamp Assembly Service and Repair.

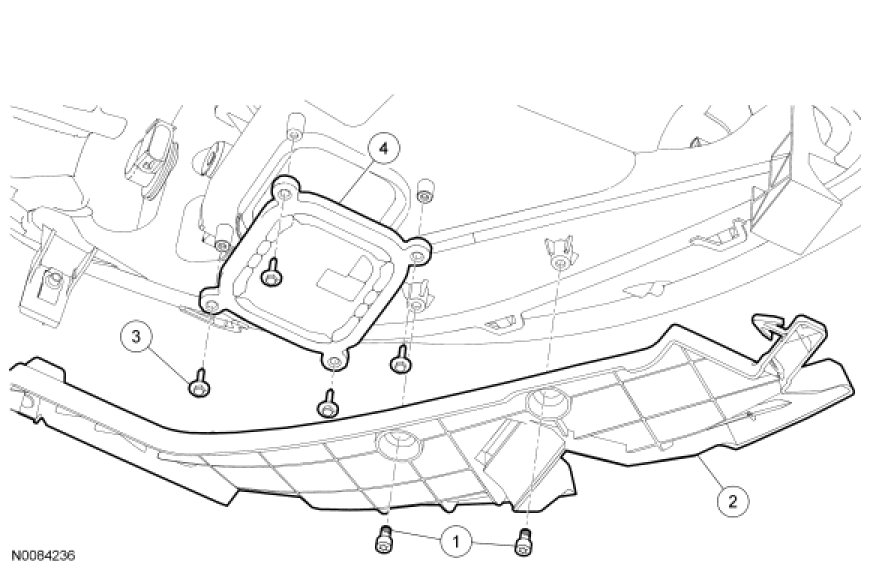

2. Remove the headlamp bracket in the following sequence:

1. Remove the 2 headlamp bracket screws.

2. Release the tab and separate the bracket from the headlamp assembly.

3. Remove the 4 screws and the ballast.
- Disconnect the electrical connectors.

4. To install, reverse the removal procedure.
