Fuel Tank and Filler Pipe - Exploded View




Fuel Tank and Filler Pipe - Exploded View

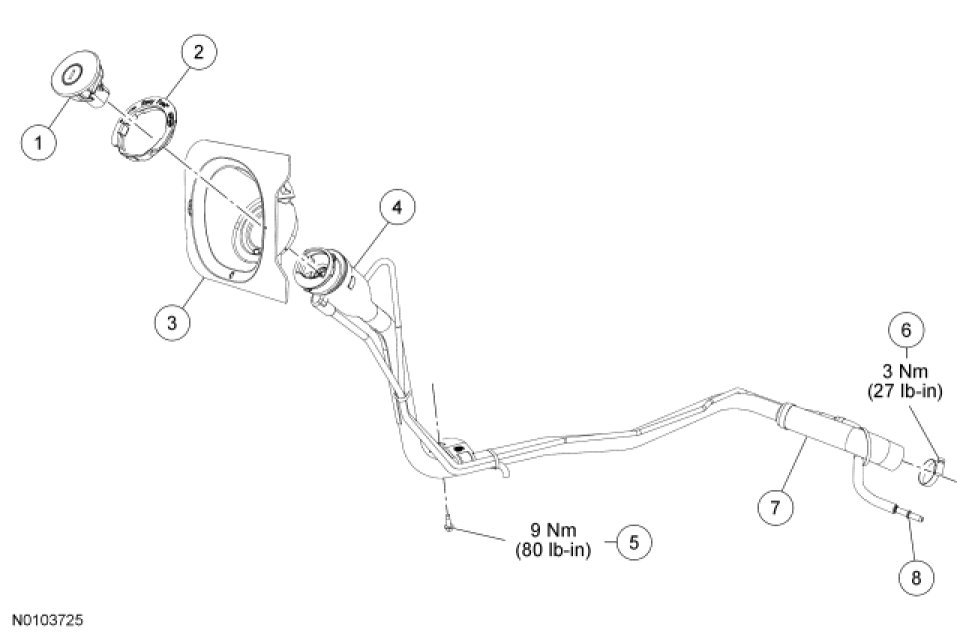

Fuel Tank Filler Pipe Assembly

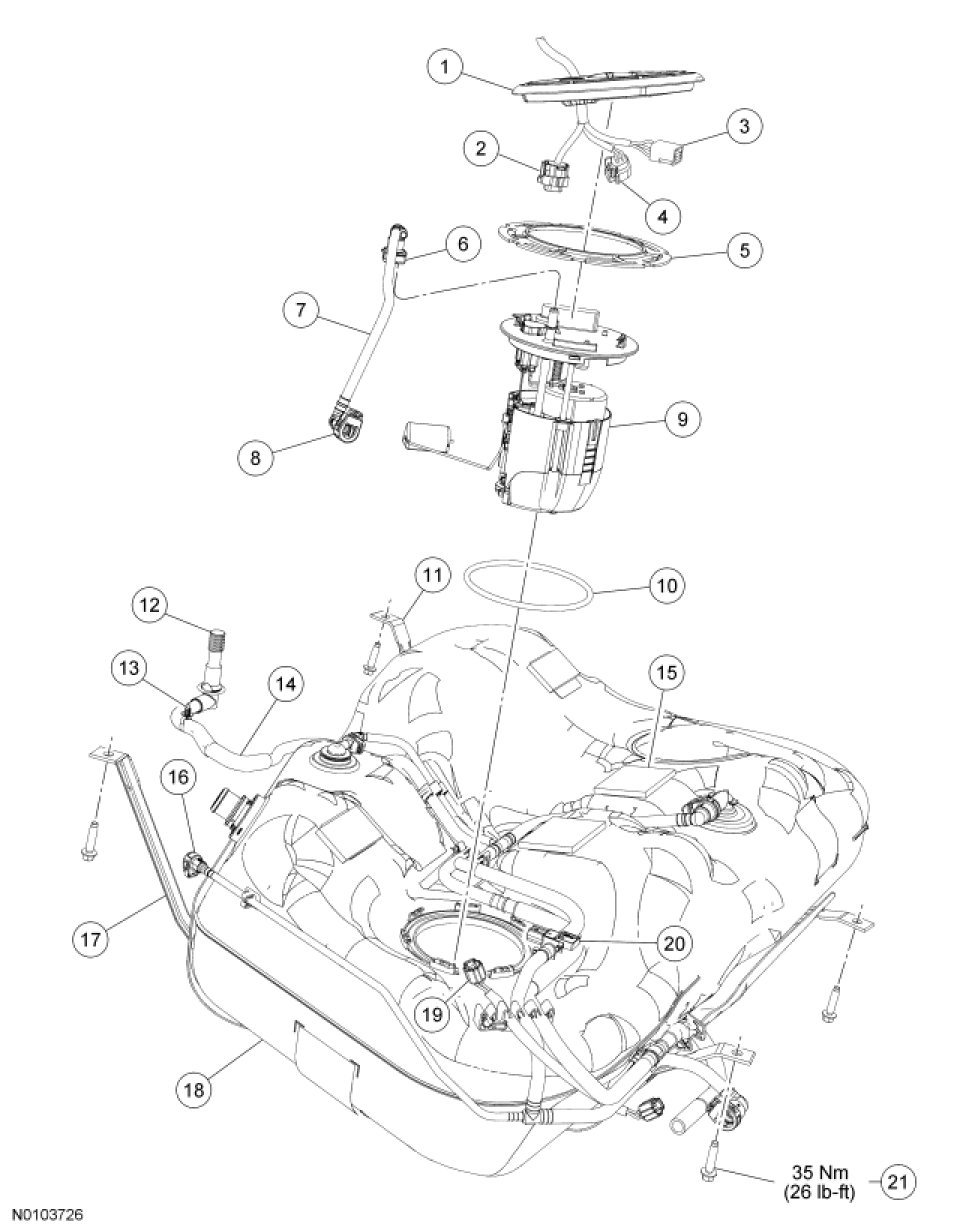

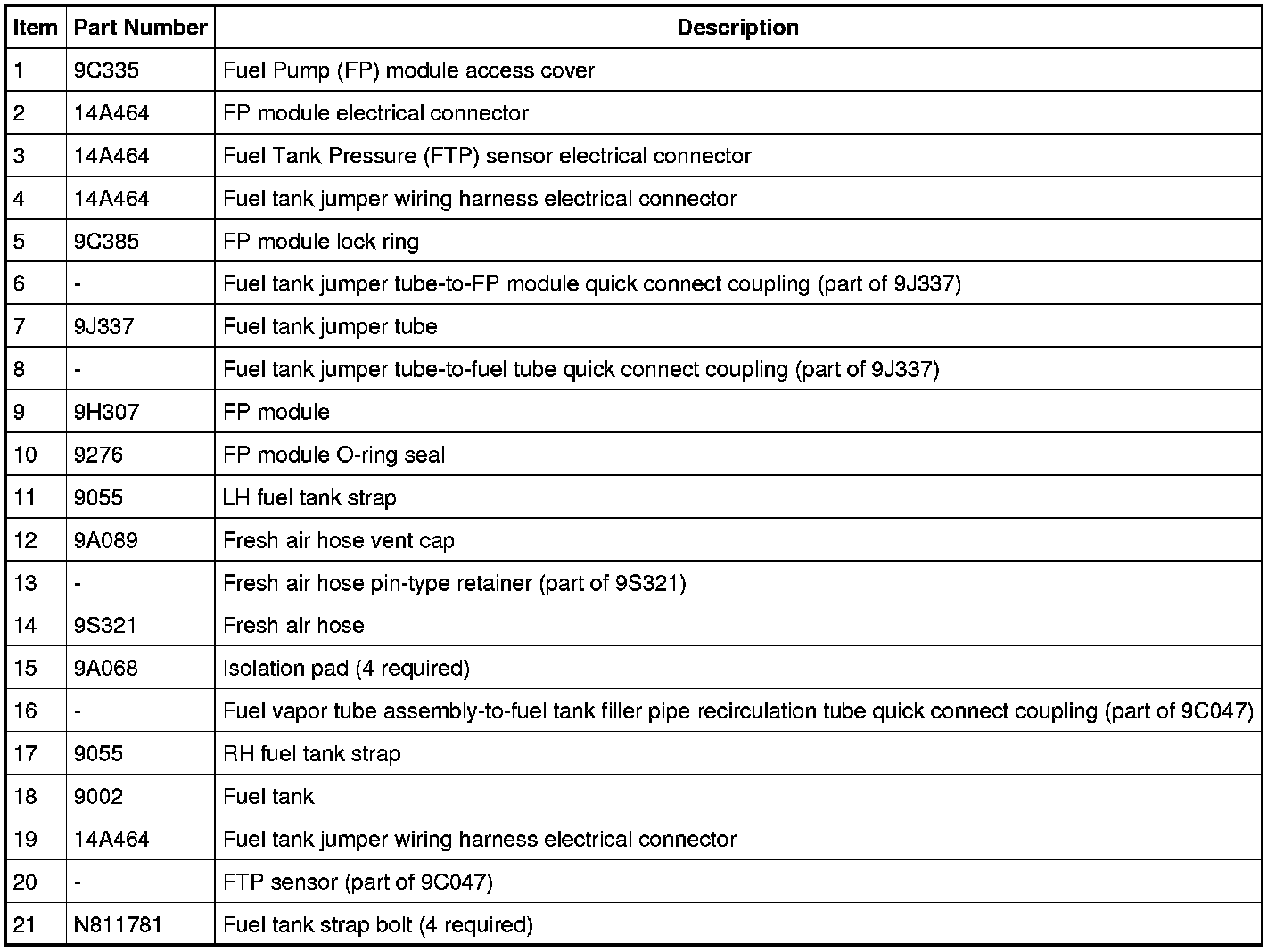

L-Shaped Fuel Tank

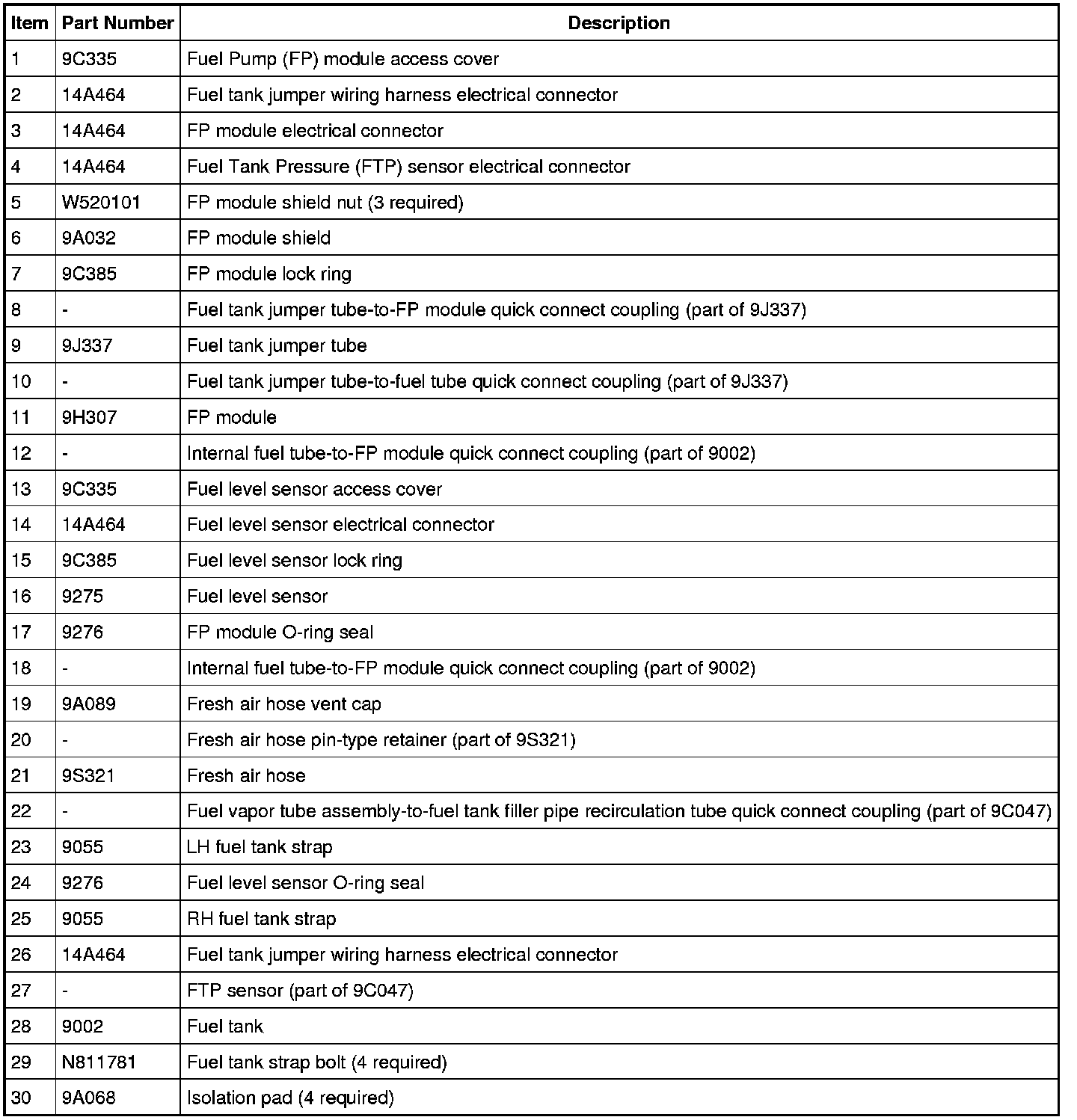

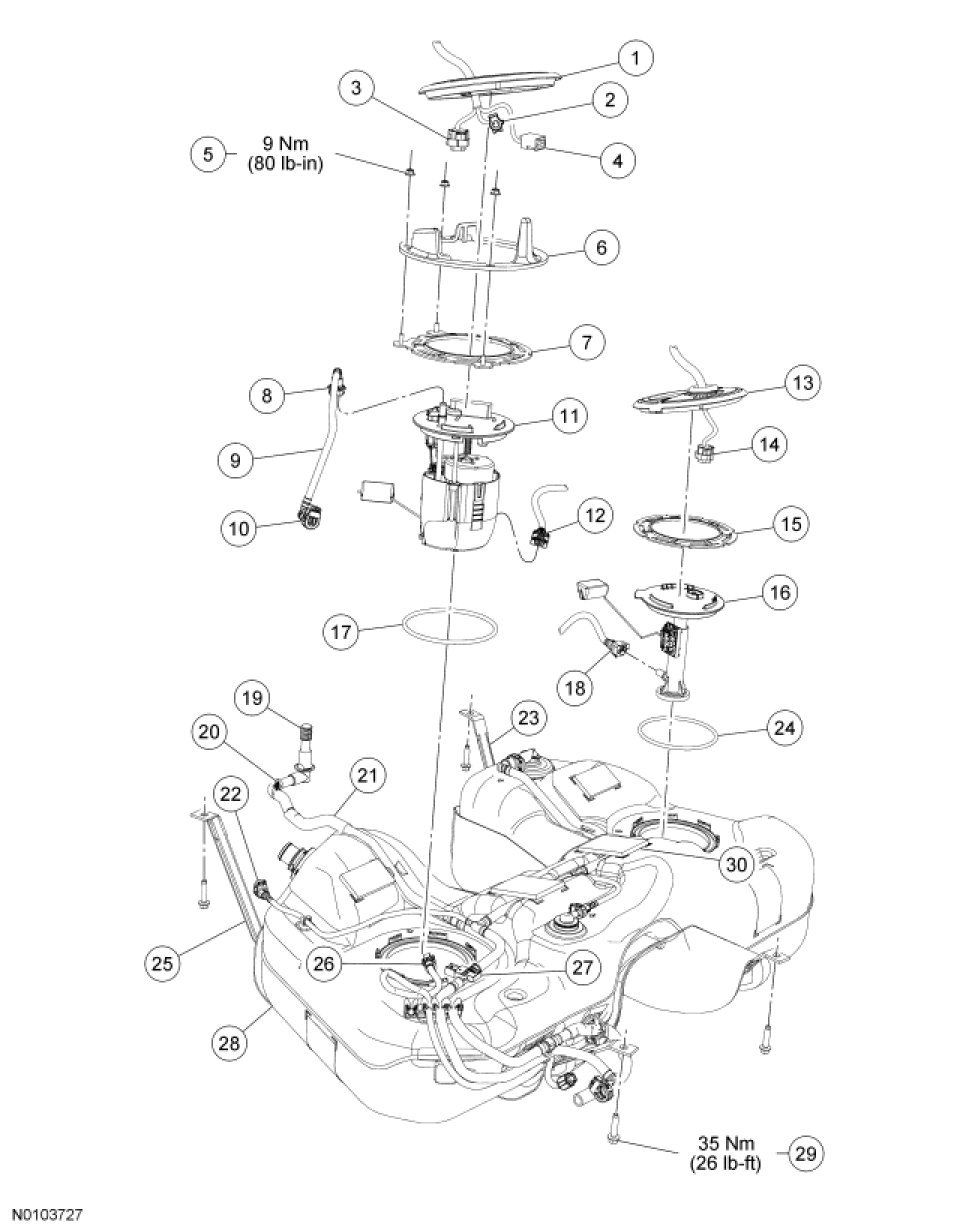

Saddle Type Fuel Tank
