Occupant Classification Sensor 1 Connector - C3324

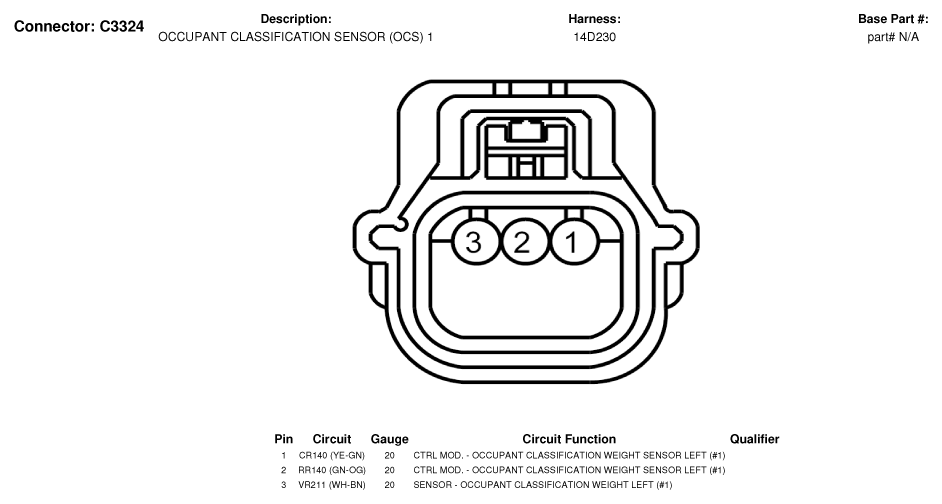

Fig 1: Occupant Classification Sensor 1 Connector End View (C3324)
G07330099Courtesy of FORD MOTOR CO.
