Occupant Classification Sensor 4 Connector - C3331

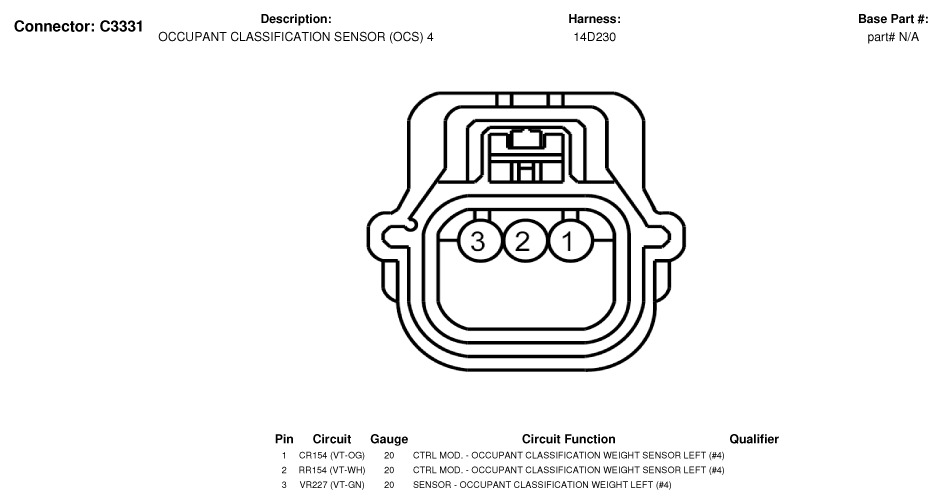

Fig 1: Occupant Classification Sensor 4 Connector End View (C3331)
G07330102Courtesy of FORD MOTOR CO.
