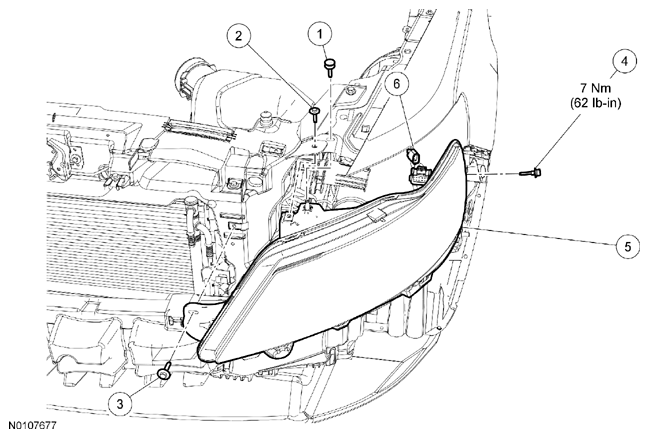

Headlamp Assembly: Notes
WARNING: This page is about a different car, the 2011 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W709984 |
Rivet push-pin |
| 2 |
W711158 |
Top headlamp assembly bolt |
| 3 |
W711158 |
Front headlamp assembly bolt |
| 4 |
W714628 |
Side headlamp assembly bolt |
| 5 |
13008 |
Headlamp assembly |
| 6 |
- |
Headlamp assembly electrical connectors (part of 14290) |
