Power Mirror Switch: Service and Repair

Exterior Mirror Control Switch









Removal and Installation

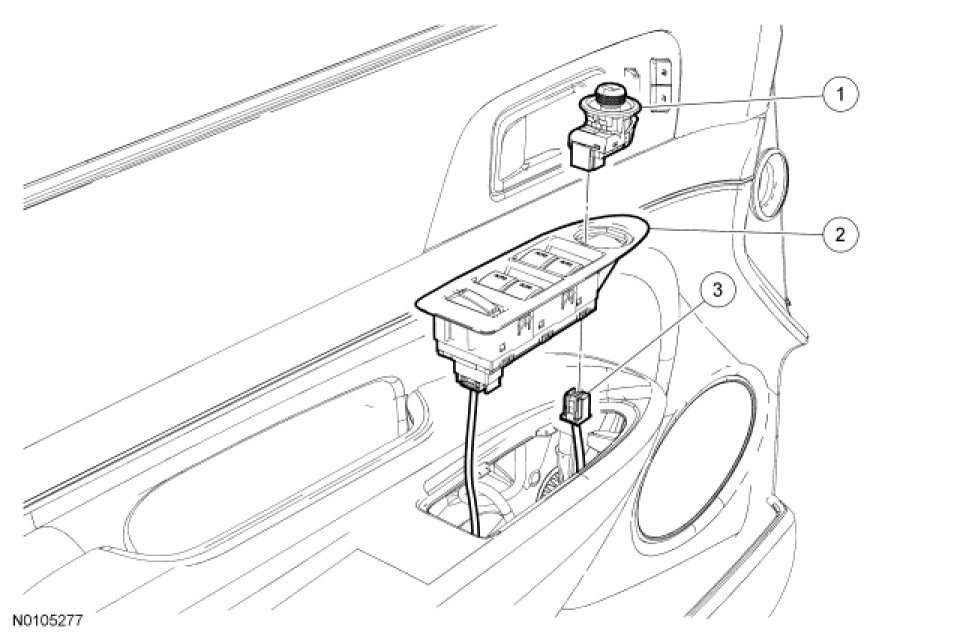

1. Lift upward to remove the switch bezel from the door trim panel.

2. Disconnect the switch electrical connector.

3. Depress the 2 locking tabs and remove the exterior mirror control switch from the switch bezel.

4. To install, reverse the removal procedure.
