Exterior Lighting Module: Service and Repair

Ballast









Removal and Installation

NOTE: If the ballast is glued to the headlamp assembly, it is not removable. If the ballast needs to be replaced, the headlamp assembly must be replaced.

1. Remove the headlamp assembly. For additional information, refer to Headlamp Assembly Service and Repair.

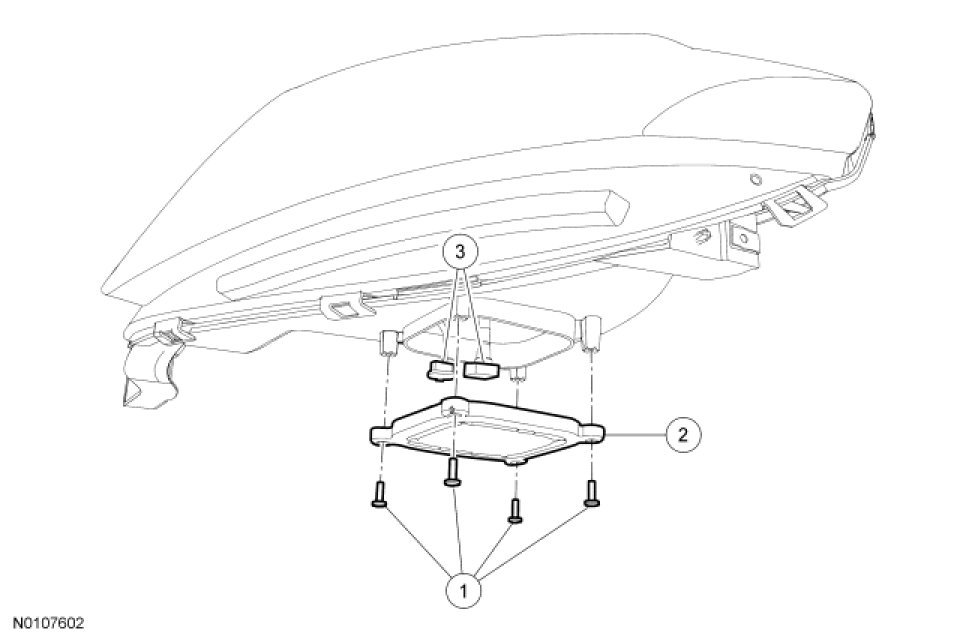

2. Remove the 4 screws and the ballast.
- Disconnect the electrical connectors.

3. To install, reverse the removal procedure.
