Connector Locations

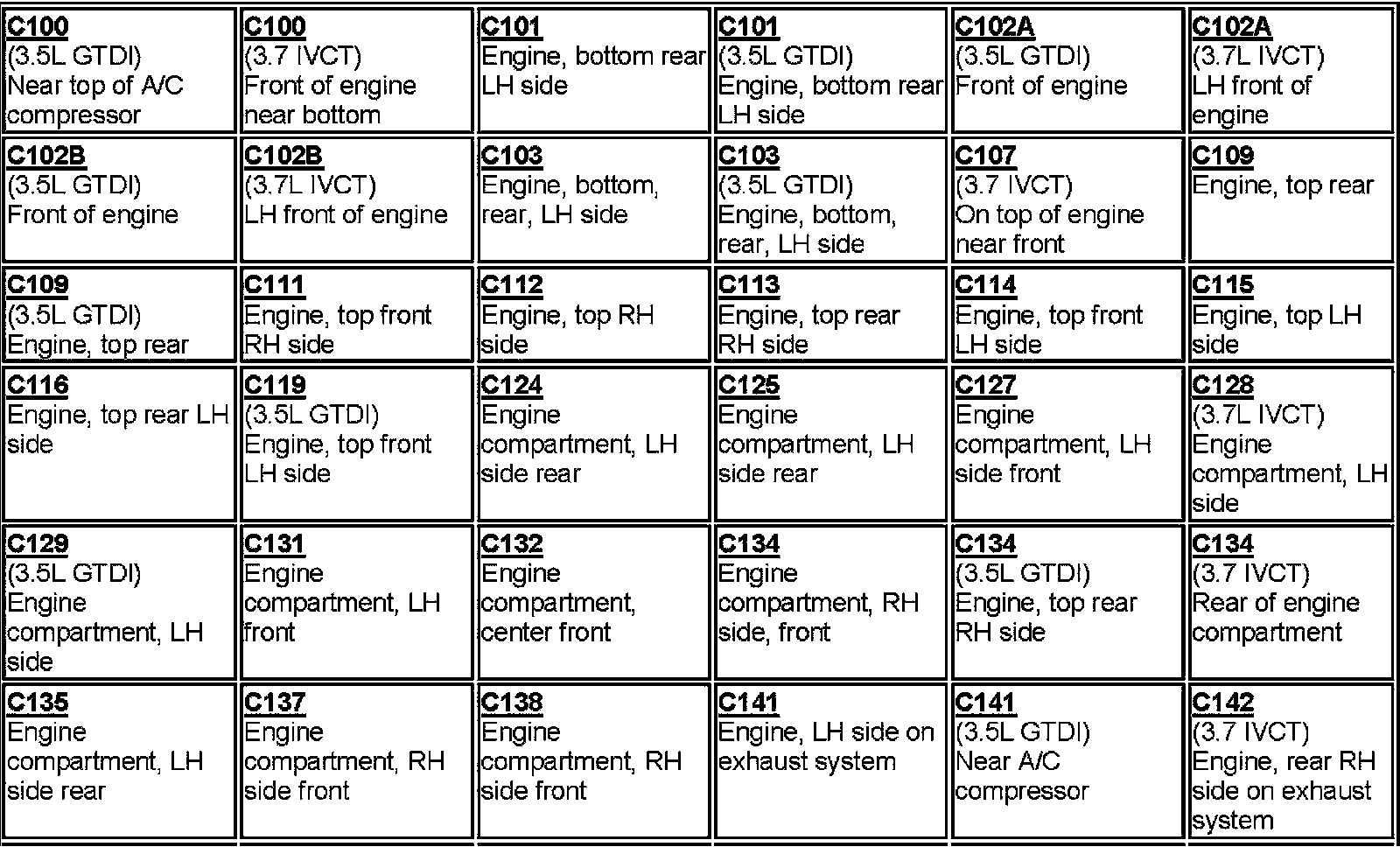

C100-C142:

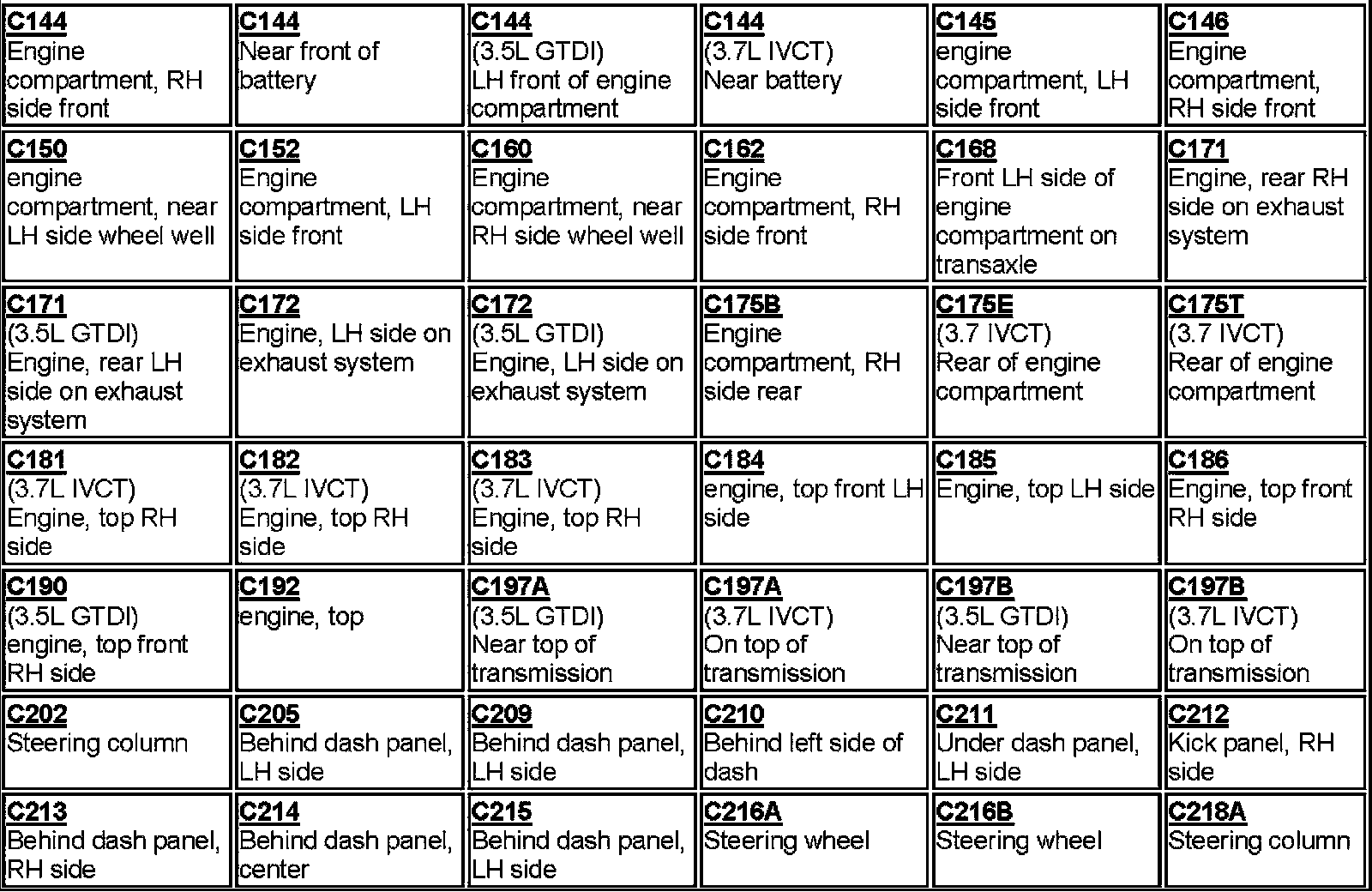

C144-C218A:

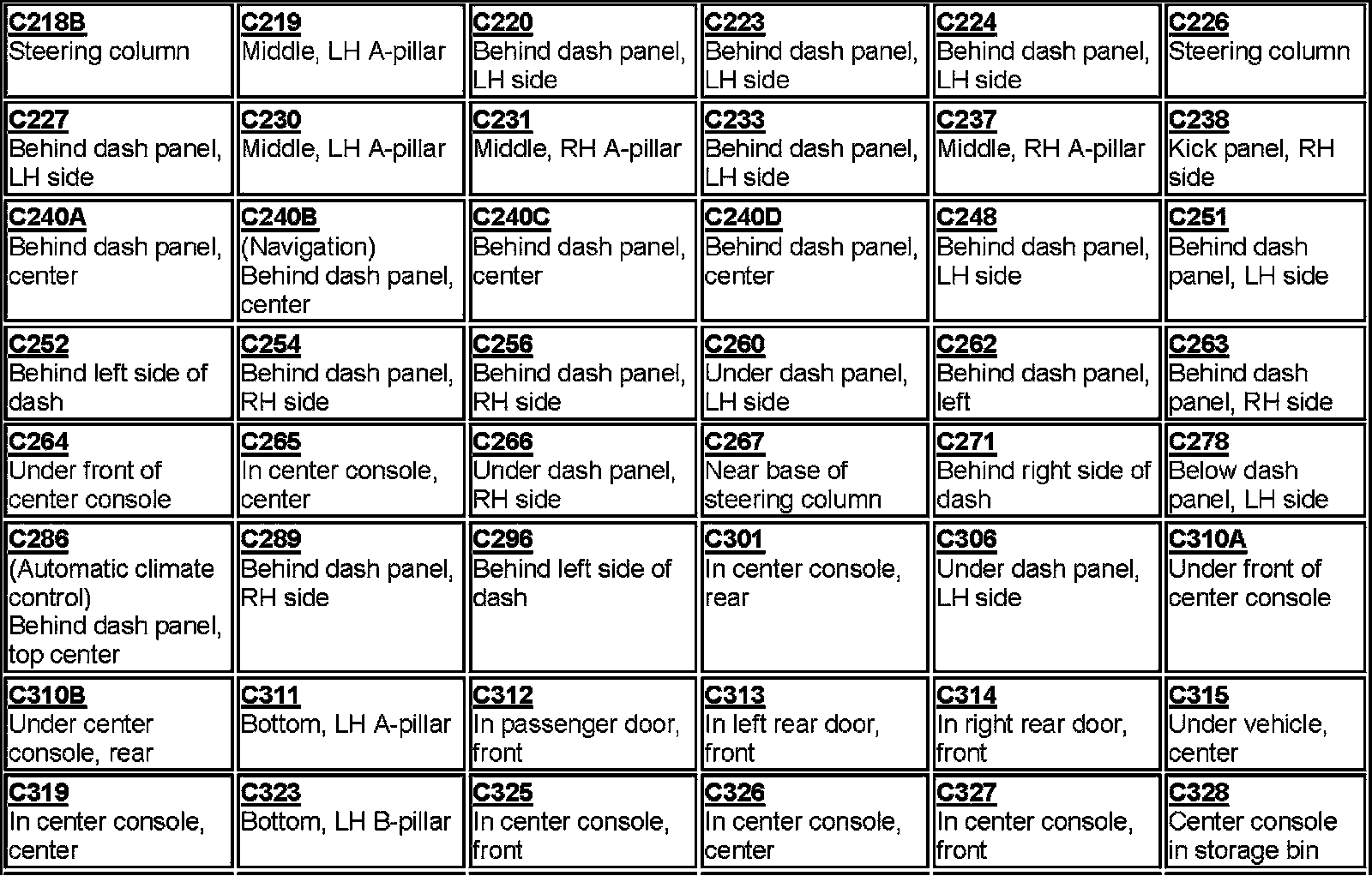

C218B-C328:

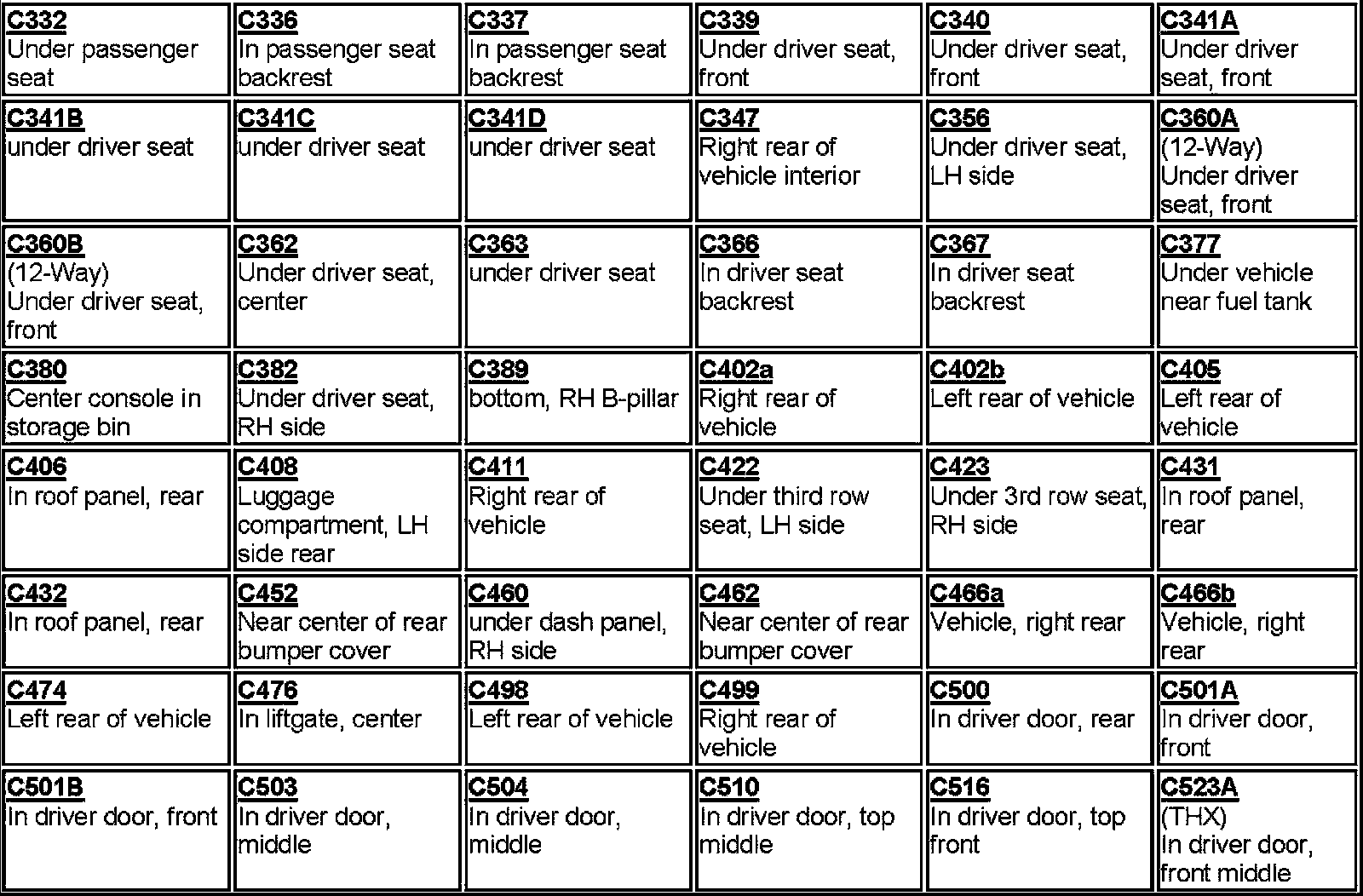

C332-C523A:

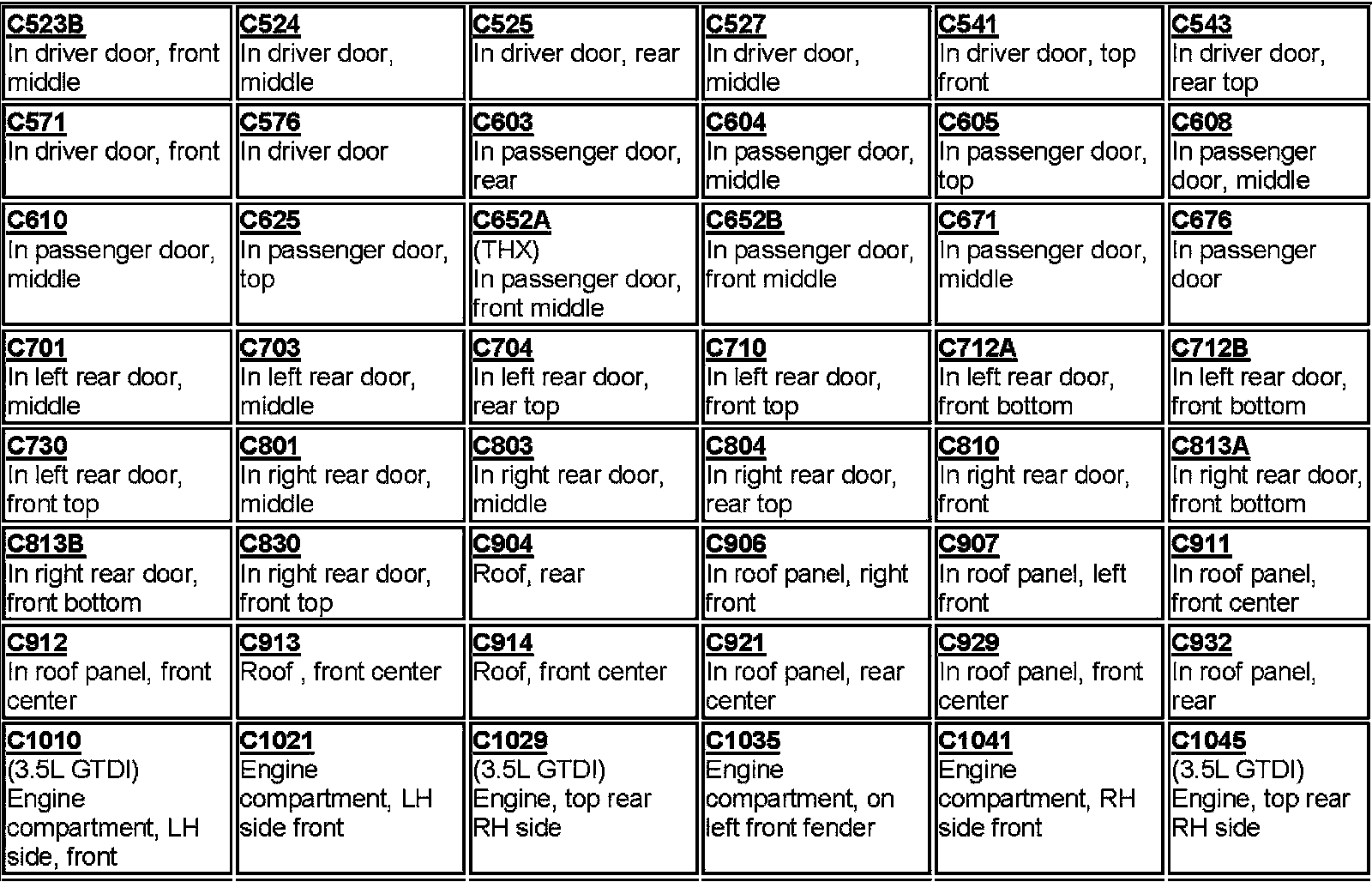

C523B-C1045:

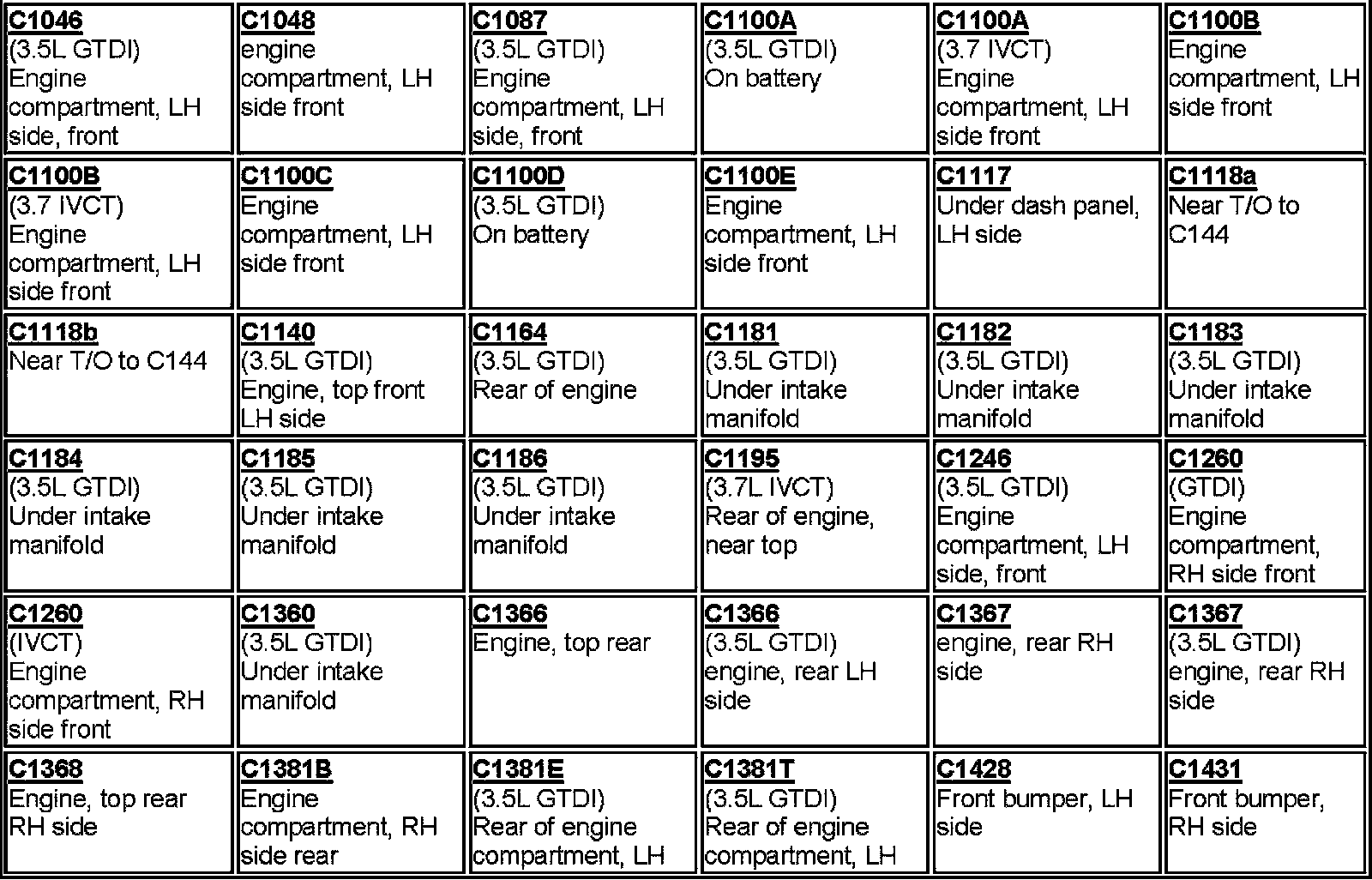

C1046-C1431:

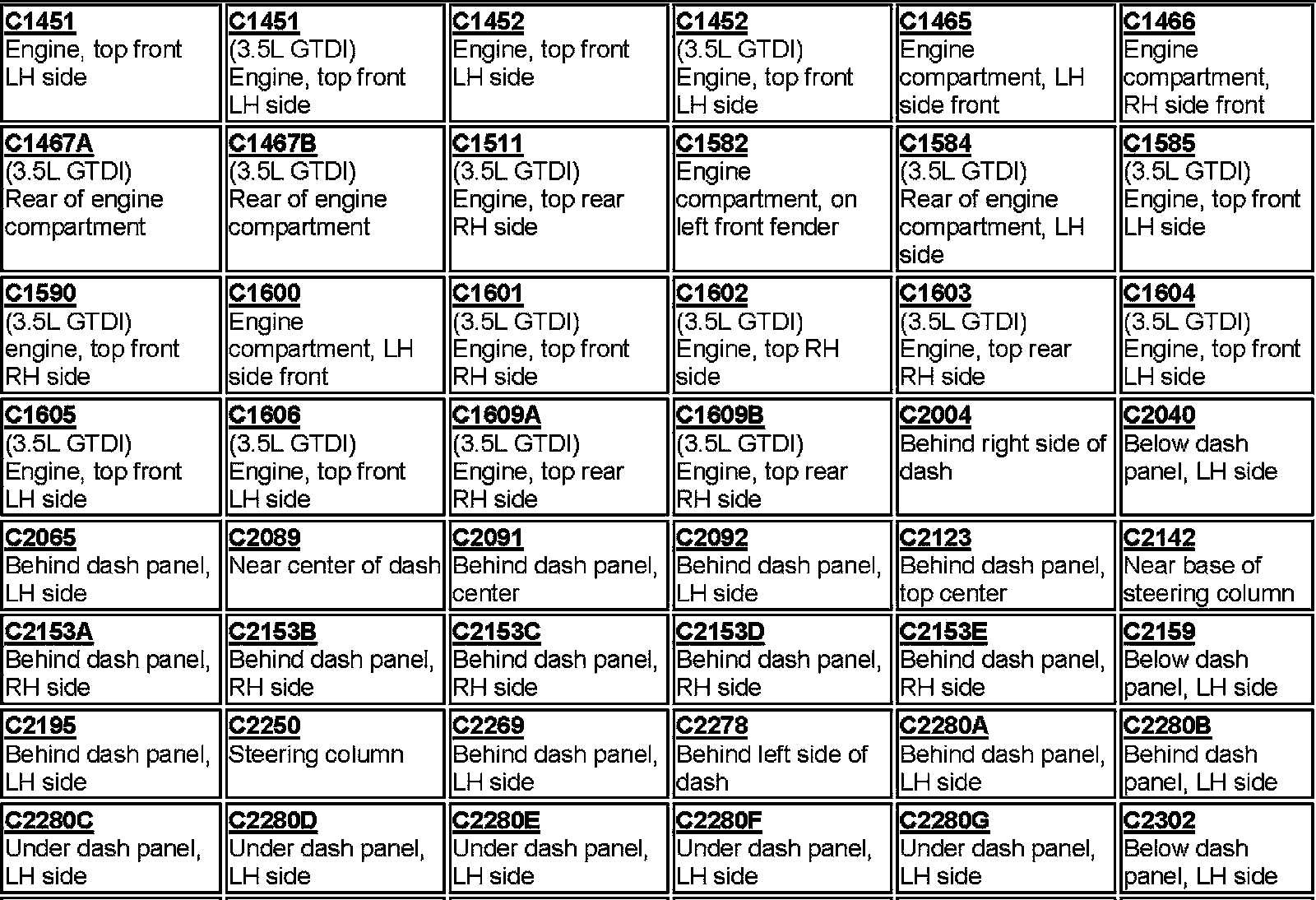

C1451-C2302:

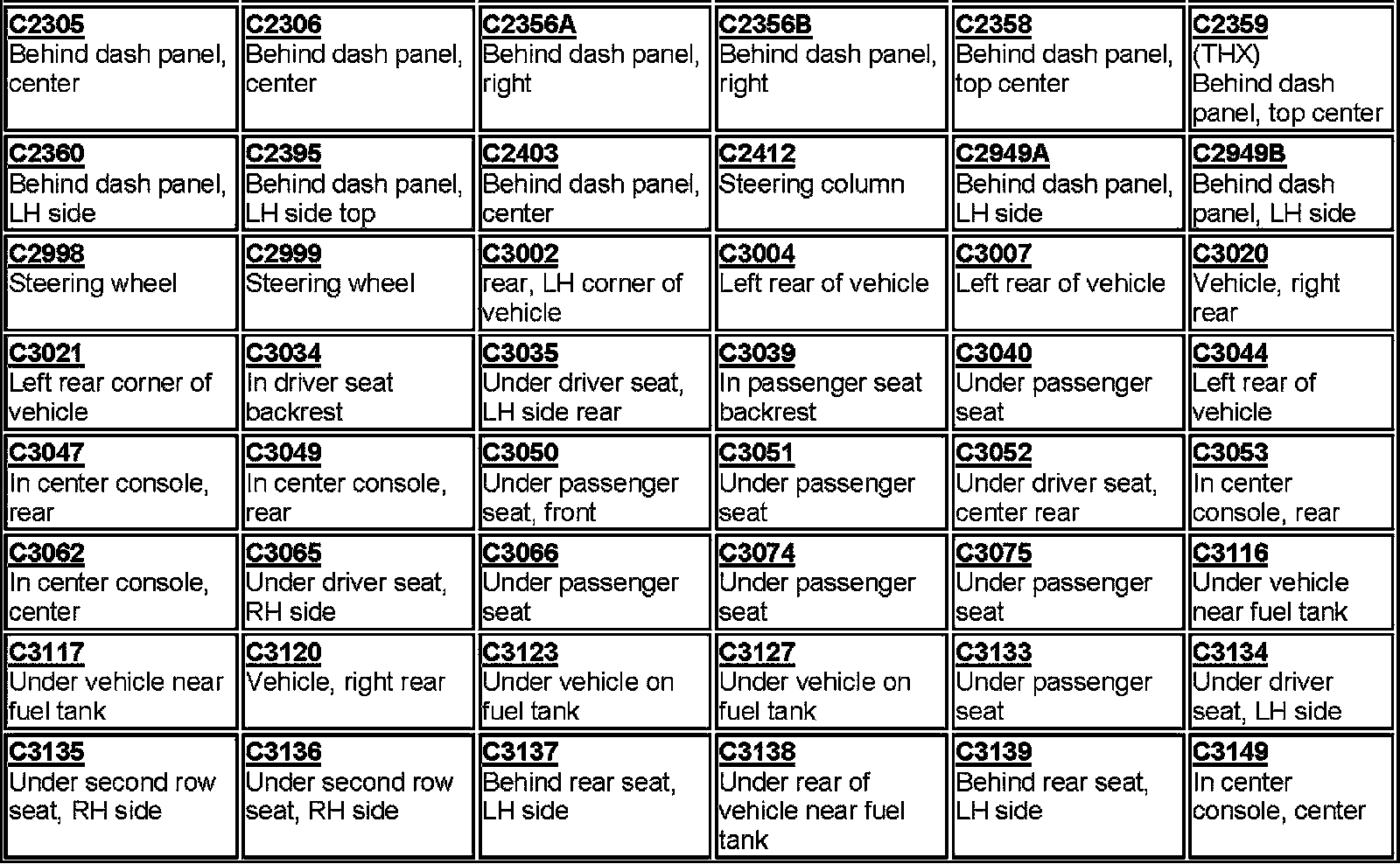

C2305-C3149:

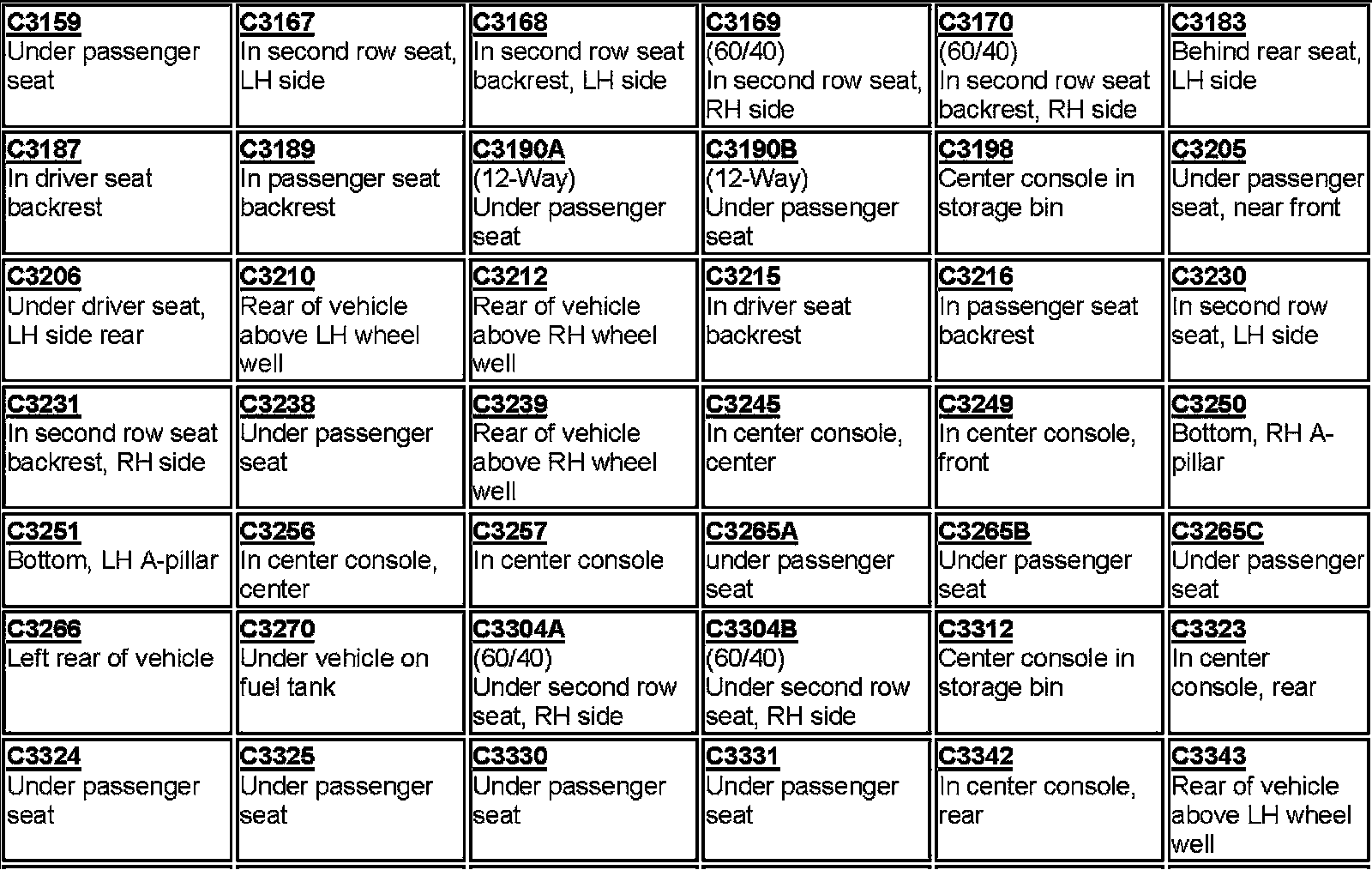

C3159-C3343:

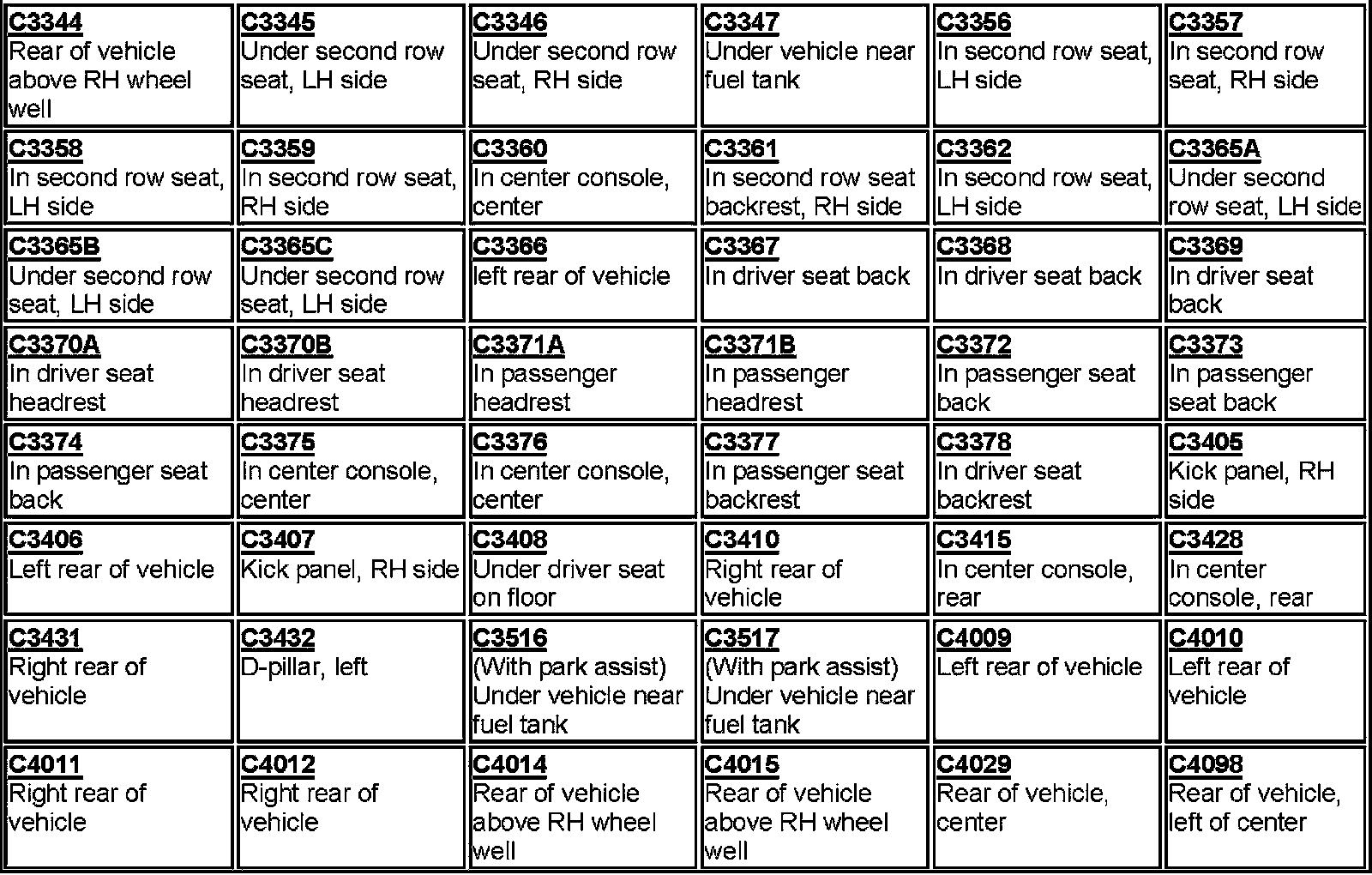

C3344-C4098:

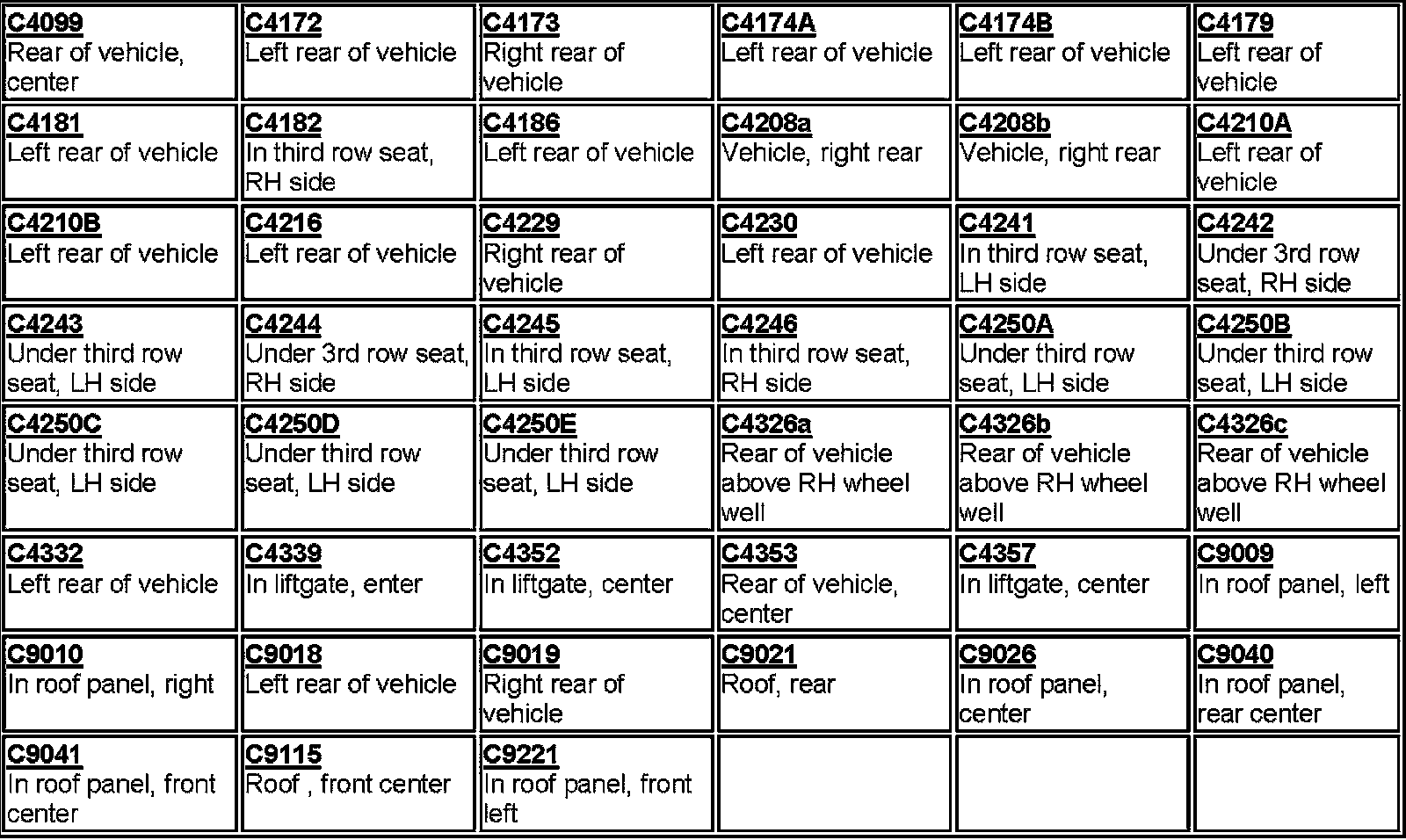

C4099-C9221:
