LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Lincoln
>>
2011
>>
MKT Base, AWD
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transmission - Automatic Transaxle/Transmission
>>
Description And Operation
>>
Transaxle Operation
>>
Neutral Position
>>
Power Flow
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Power Flow

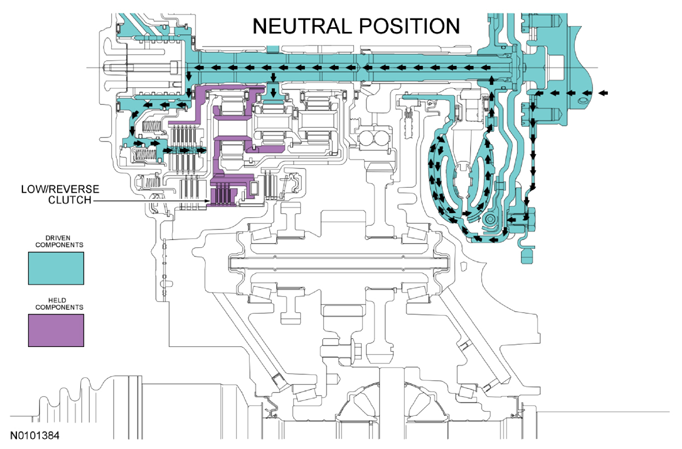

Fig 1: Neutral Position Flow Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
