Power Door Lock Switch: Service and Repair

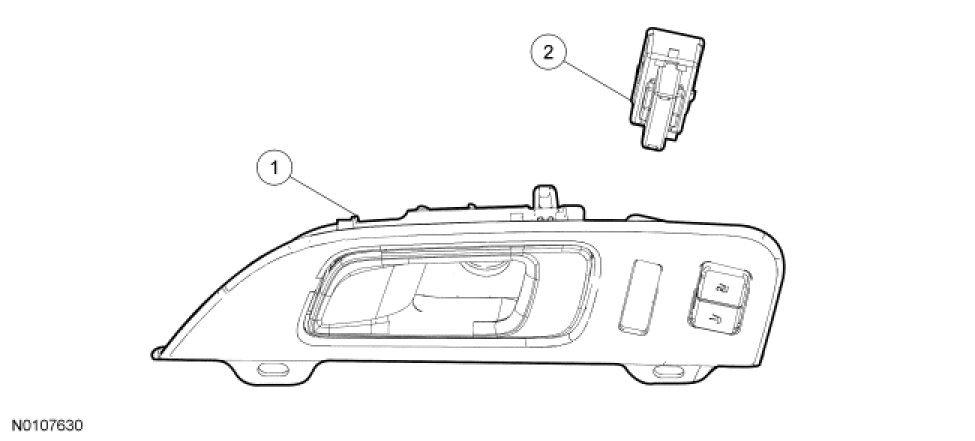

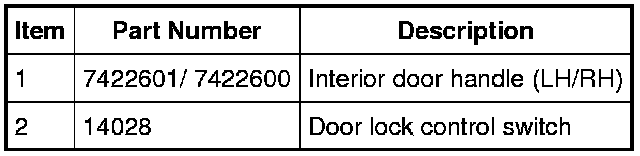

Door Lock Control Switch

NOTE: LH side shown, RH side similar.









Removal and Installation

1. Remove the interior door handle. For additional information, refer to Interior Door Handle Interior Door Handle.

2. Release the tabs and remove the door lock control switch.

3. To install, reverse the removal procedure.
