Antenna - Keyless Entry: Service and Repair




Intelligent Access (IA) Antenna - Liftgate









Removal and Installation

1. Remove the rear bumper cover.

2. Disconnect the liftgate IA (Intelligent Access) antenna electrical connector.

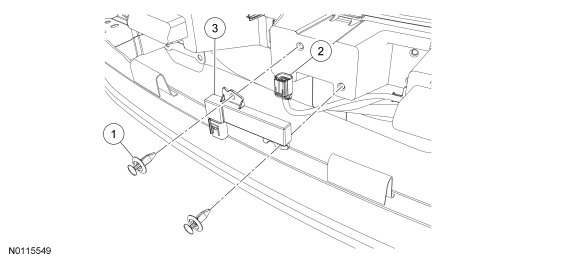

3. Remove the 2 pin-type retainers and the liftgate IA (Intelligent Access) antenna.

4. To install, reverse the removal procedure.
