Audio Digital Signal Processing Module Connector End View - C4348C

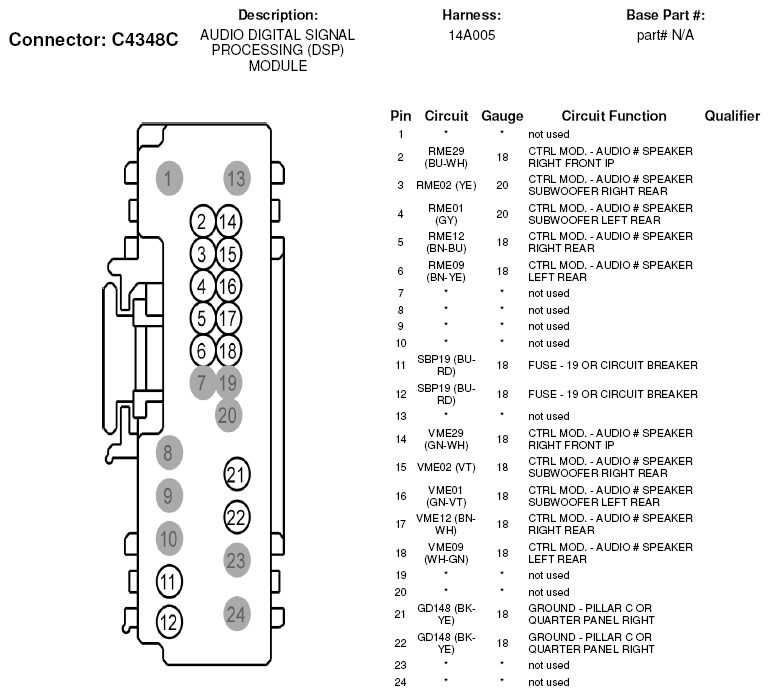

Fig 1: Audio Digital Signal Processing Module Connector End View (C4348C)
G07327310Courtesy of FORD MOTOR CO.
