Home
>>
Lincoln
>>
2011
>>
MKZ AWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Refrigerant Pressure Sensor / Switch, HVAC
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

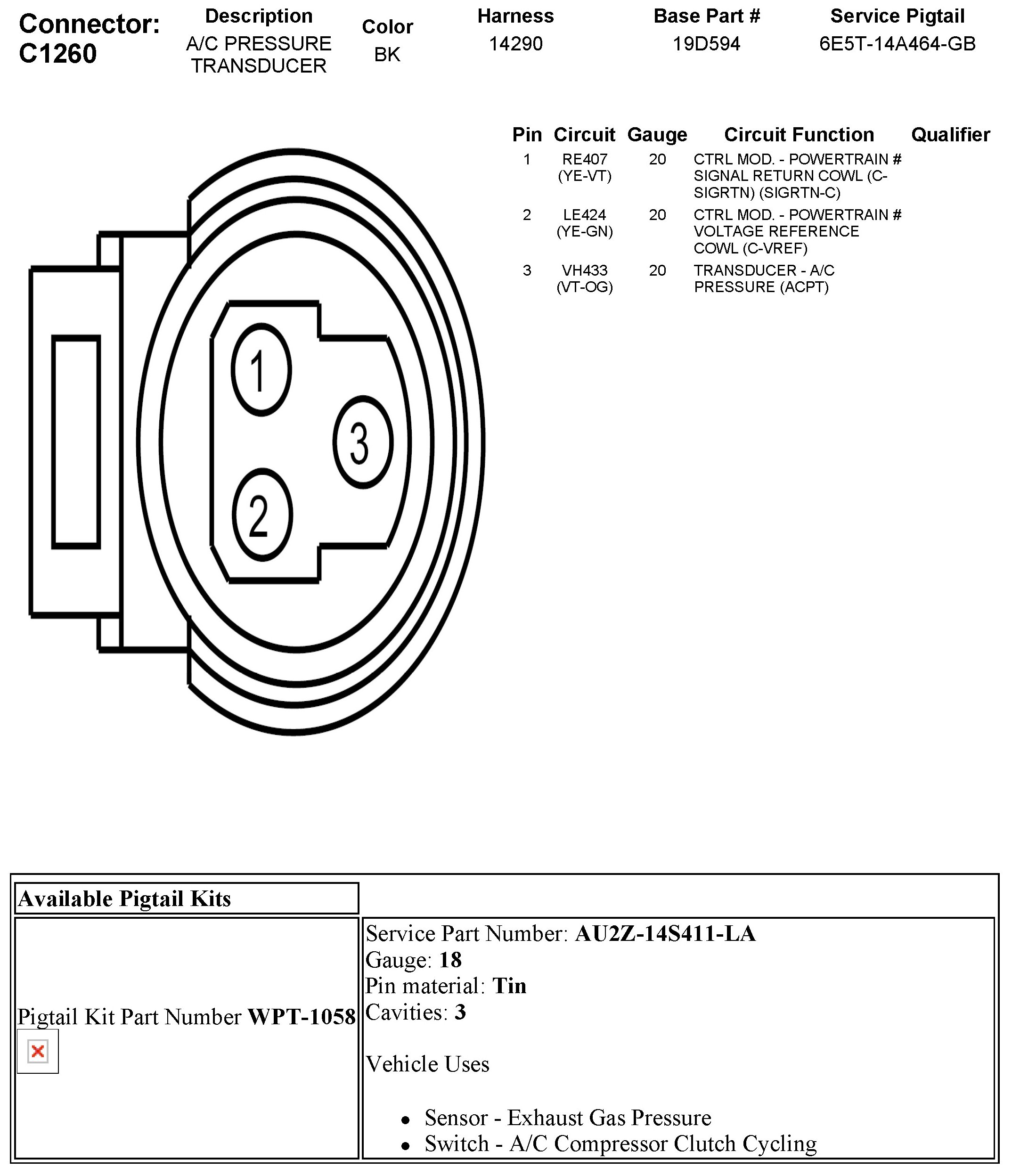

Refrigerant Pressure Sensor / Switch, HVAC
