Power Steering Control Module Connector End View - C1467B
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Power Steering Control Module Connector End View - C1467B

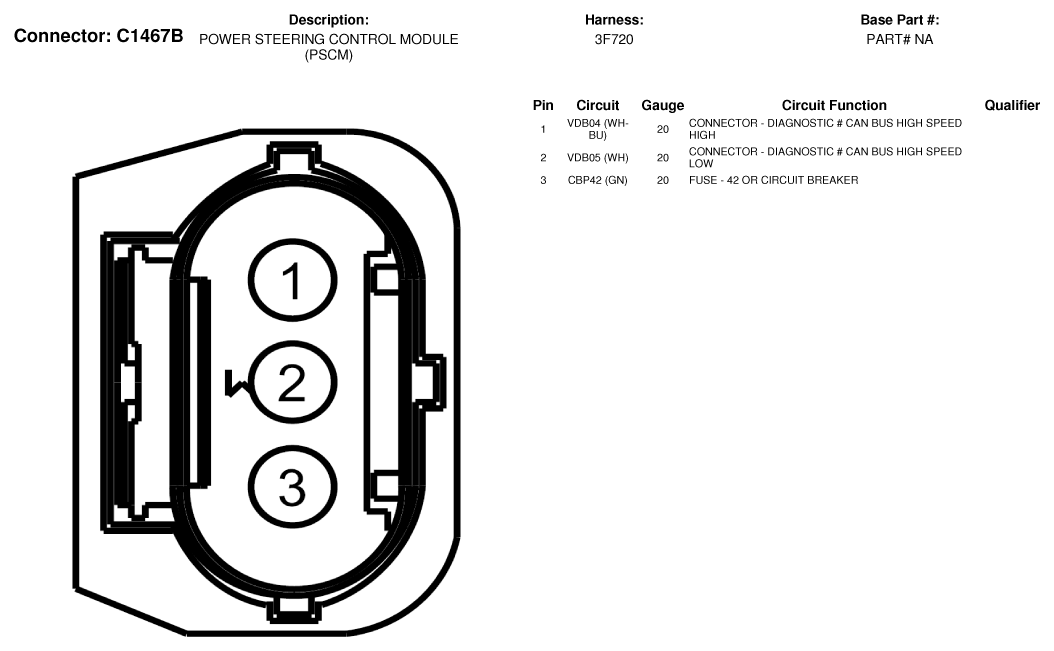

Fig 1: Power Steering Control Module Connector End View (C1467B)
Courtesy of FORD MOTOR CO.
