Ambient Air Temperature Sensor: Notes

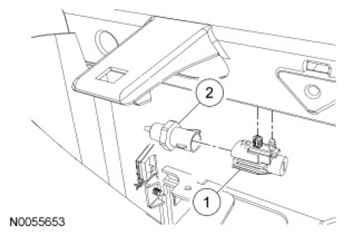

Fig 1: Exploded View Of Ambient Air Temperature Sensor And Electrical Connector
G07456570Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 - Ambient air temperature sensor electrical connector (part of 12A581)
2 12A647 Ambient air temperature sensor
